Restraints - DTC's B1129 Or B1134 Set: Overview

Classification: RS12-004B

Reference: ITB12-034B

Date: August 28, 2012

2003 - 2005 G35 SEDAN AND COUPE
DTC B1129 OR B1134 SIDE MODULE OPEN

This bulletin has been amended to correct the model years in the Claims Information. No other changes have been made to the body of this bulletin.

APPLIED VEHICLES: 2003 - 2005 G35 Sedan (V35) with power seats
2003 - 2005 G35 Coupe (CV35)

IF YOU CONFIRM

DTC B1129 or B1134 (SIDE MODULE RH or LH [OPEN]) is stored in Self Diagnosis Current or Self Diagnosis Past.

NOTE:
This service bulletin provides updated procedures specifically for vehicles that have been repaired using the methods described in ITB10-034 or ITB10-036 as determined by the following actions:

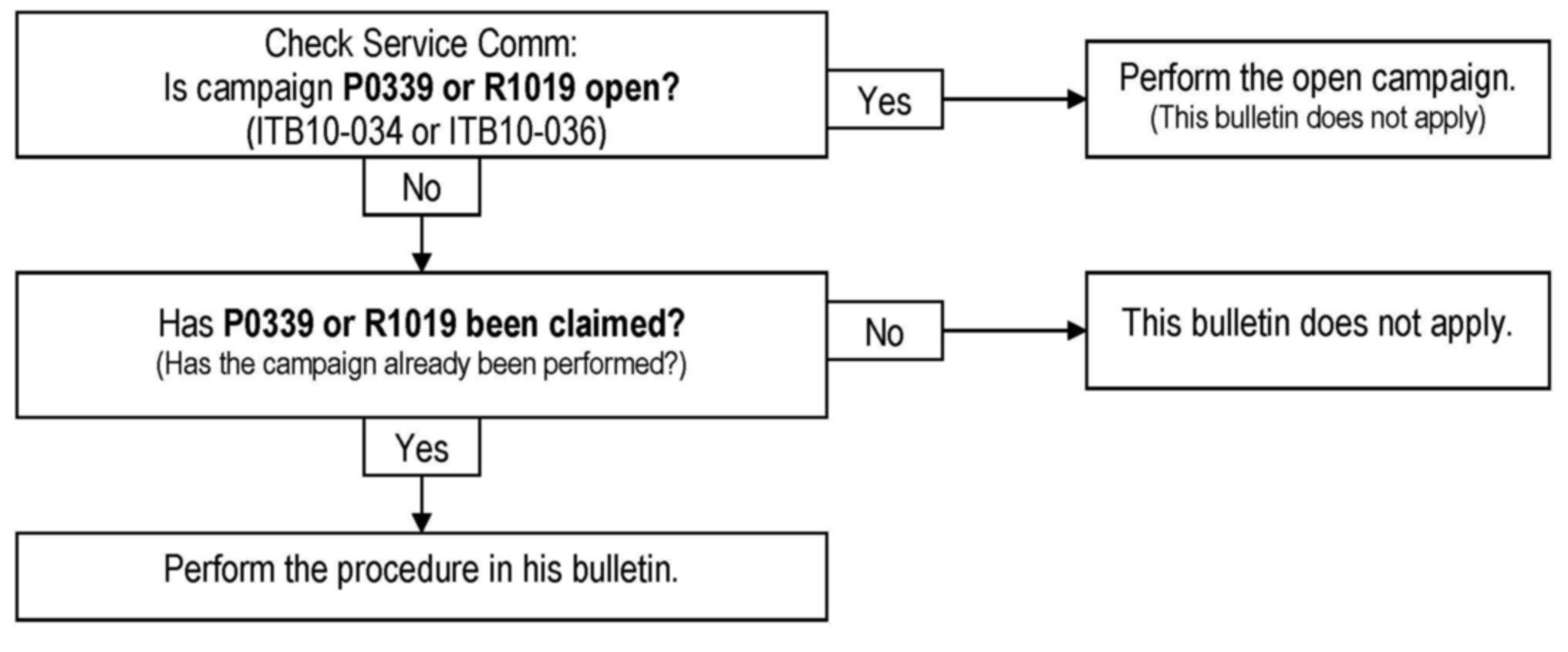

ACTIONS

NOTE:
^ A portion of the Service Procedure in campaigns R1019 and P0339 was updated.

^ The updated portion involves replacement of the Side Air Bag Connector.

^ This bulletin provides the information needed to perform the updated portion of the procedure on vehicles with DTC B1129 or B1134 that were previously campaigned.

IMPORTANT:
The purpose of ACTION (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire SERVICE PROCEDURE as it contains information that is essential to successfully completing this repair.





PARTS INFORMATION

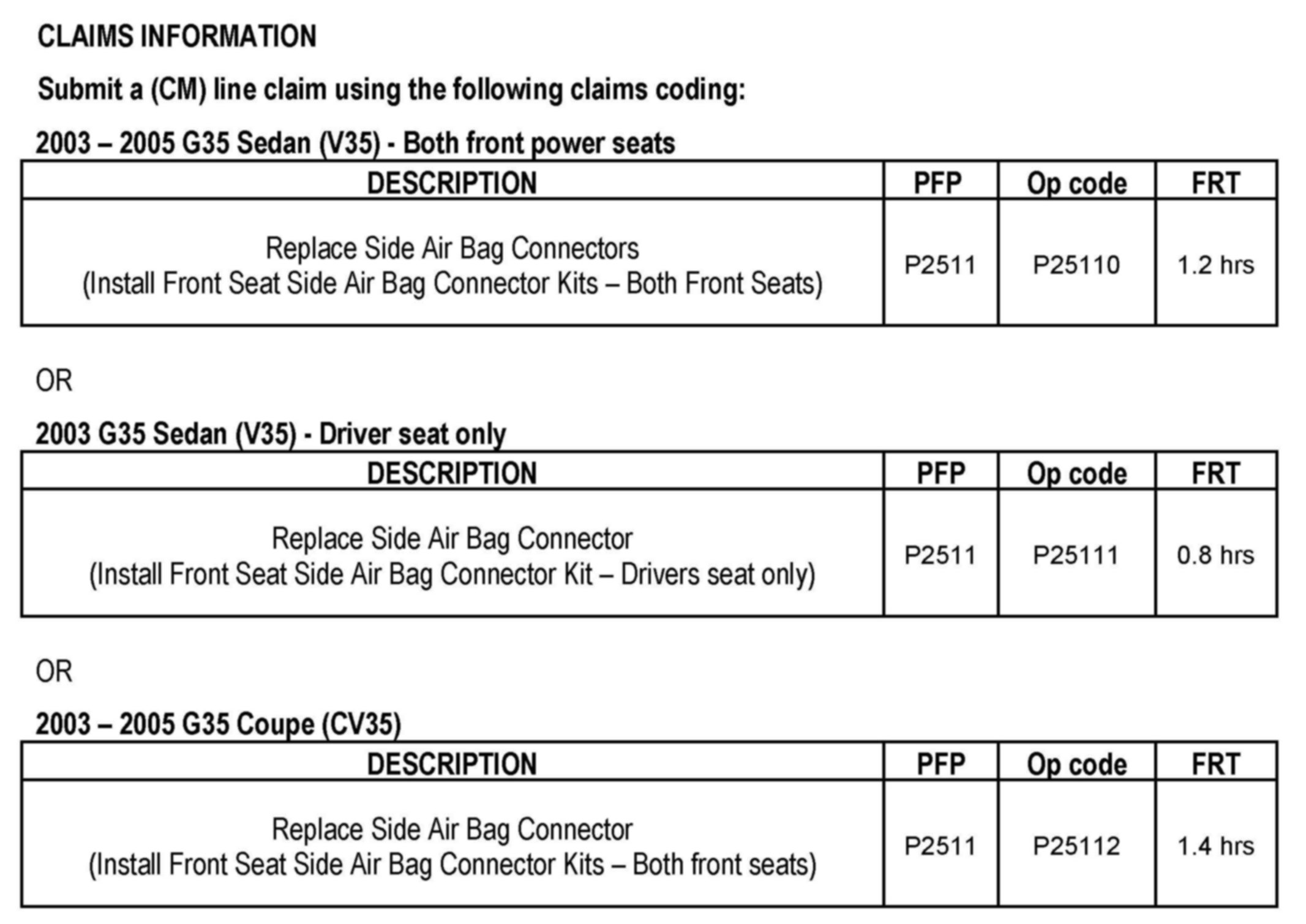

CLAIMS INFORMATION
