Windshield Washer Pump: Service and Repair

Removal and Installation of Washer Pump

REMOVAL




1. Remove fender protector in the right side. Refer to "FENDER PROTECTOR" in "Exterior and Interior".
2. Remove washer pump connector and tube.

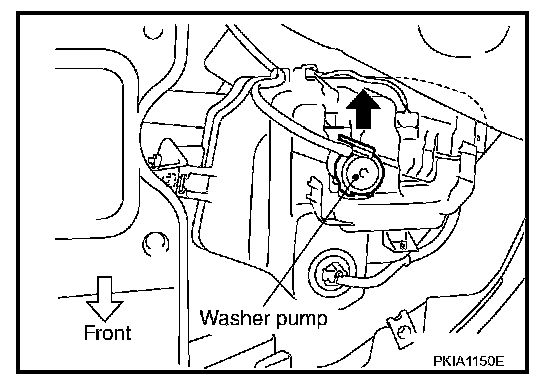

3. Pull out washer pump in direction shown by the arrow in the figure. Remove washer pump from washer tank.

INSTALLATION
Installation is the reverse order of removal.

CAUTION: When installing washer pump, there should be no packing twists, etc.
