C1137

RAS Control Unit System (With RAS)

INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS

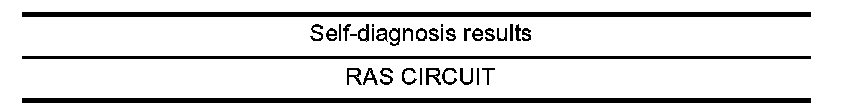

Check self-diagnosis results.





Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END.

2. CHECK RAS CONTROL UNIT CIRCUIT
1. Perform RAS control unit self-diagnosis. Repair or replace items indicated, then perform RAS control unit self-diagnosis again. Refer to STC-23, "Self-Diagnosis". Self-Diagnosis
2. Perform VDC/TCS/ABS control unit self diagnosis.
OK or NG
OK >> INSPECTION END
NG >>
^ Repair or replace malfunctioning components.
^ Perform the self-diagnosis, and make sure that the result shows NO DTC IS DETECTED?
