C1144

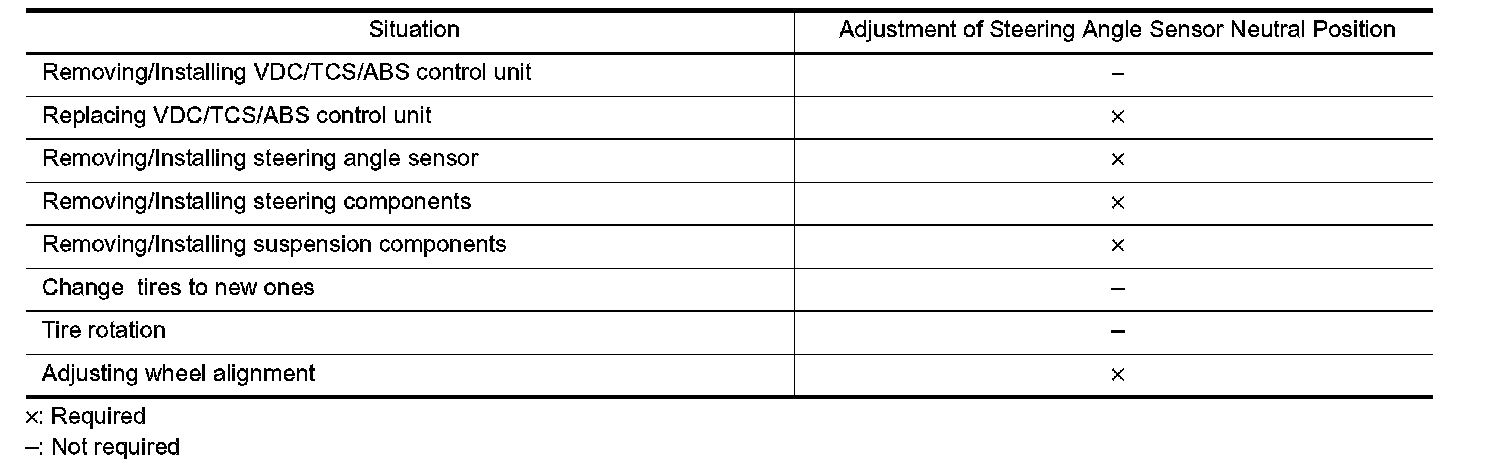

Adjustment of Steering Angle Sensor Neutral PositionIn case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sensor before running vehicle.
CAUTION: To adjust neutral position of steering angle sensor, make sure to use CONSULT-II. (Adjustment cannot be done without CONSULT-II.)
1. Stop vehicle with front wheels in straight-ahead position.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition switch ON (do not start engine).
3. Touch the CONSULT-II screen in the order of ABS, WORK SUPPORT and ST ANG SENSOR ADJUSTMENT.
4. Touch START.
CAUTION: Do not touch steering wheel while adjusting steering angle sensor.
5. After approximately 10 seconds, touch END. (After approximately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again.
CAUTION: Be sure to perform above operation.
7. Run vehicle with front wheels in straight-ahead position, then stop.
8. Select DATA MONITOR, ECU INPUT SIGNALS, and STR ANGLE SIG on CONSULT-II screen. Then make sure STR ANGLE SIG is within 0±2.5 deg. If value is more than specification, repeat steps 3 to 7.
9. Erase memory of VDC/TCS/ABS control unit and ECM. VDC/TCS/ABS control unit: Refer to BRC-26, "ERASE MEMORY". Clearing Trouble Codes
ECM: Refer to EC-83, "TROUBLE DIAGNOSIS". Introduction
10. Turn ignition switch OFF.
