A/C and Audio Controller

Removal and Installation for A/C and Audio Controller

REMOVAL




1. Remove audio unit and display unit assembly (with navigation system) from cluster lid C.
2. Remove NAVI switch (with navigation system).

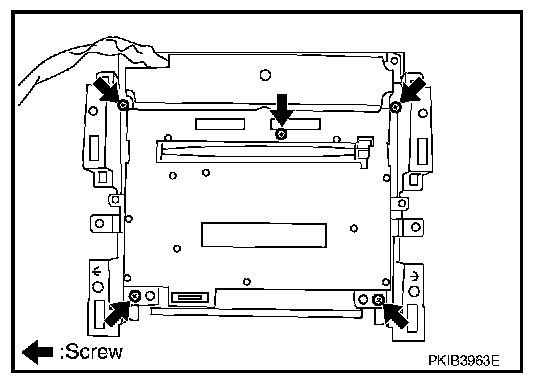

3. Remove screws (5) and remove A/C and audio controller.

INSTALLATION
Installation is the reverse order of removal
