Sunroof / Moonroof: Adjustments

Fitting Adjustment

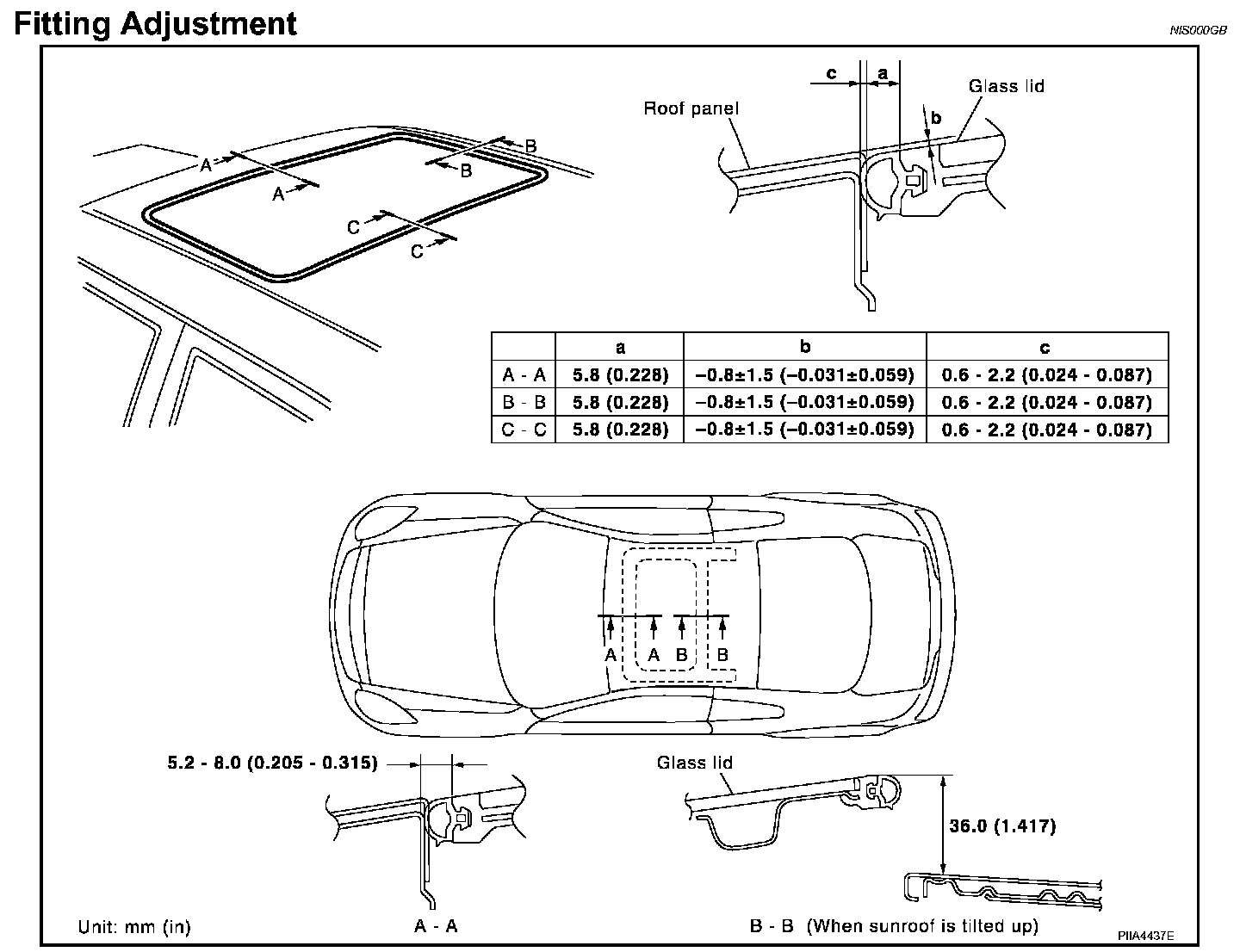

GAP ADJUSTMENT AND HEIGHT DIFFERENCE ADJUSTMENT




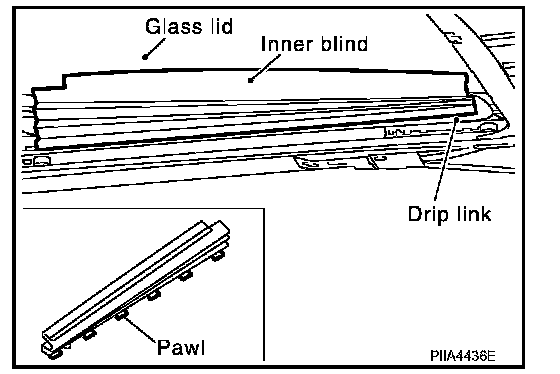

1. Remove the inner blind.
2. Loosen glass lid TORX bolts (T25), then tilt glass lid down.




3. Adjust glass lid from outside of vehicle so it resembles "A - A" "B - B" as shown in the figure.
4. Tilt glass lid up and down until it is adjusted to "C - C" as shown in the figure.
5. To prevent glass lid from moving after adjustment, first tighten the TORX bolts (T25) of front left, and then tighten the TORX bolts (T25) of rear right.
6. Tighten remaining TORX bolts (T25), being careful to prevent glass lid from moving.
7. Tilt glass lid up and down several times to check that it moves smoothly.
