Antilock Brakes / Traction Control Systems: Service and Repair
VDC/TCS/ABS CONTROL UNITRemoval and Installation
REMOVAL
1. Remove instrument side panel (RH).
2. Remove instrument lower cover.

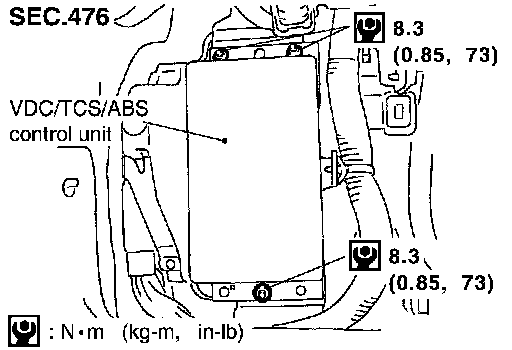

3. Remove VDC/TCS/ABS control unit.
INSTALLATION
Installation is the reverse order of removal.
