Lever Type

Inspection and Adjustment (Lever Type)
INSPECTION

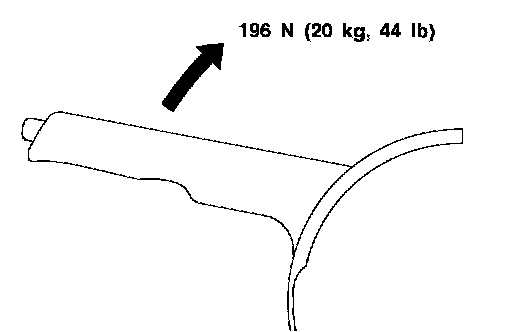

^ While operating parking brake lever to specified amount of force, make sure that the parking brake lever stroke is within the range of the specified stroke amount.
Number of notches: 6 - 7 notches
^ Make sure that brake warning lamp comes on when parking brake lever is operated with in one notch.
