Home >> Infiniti >> 2006 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Diagrams >> Connectors >> Body Harness >> Passenger Compartment

Passenger Compartment

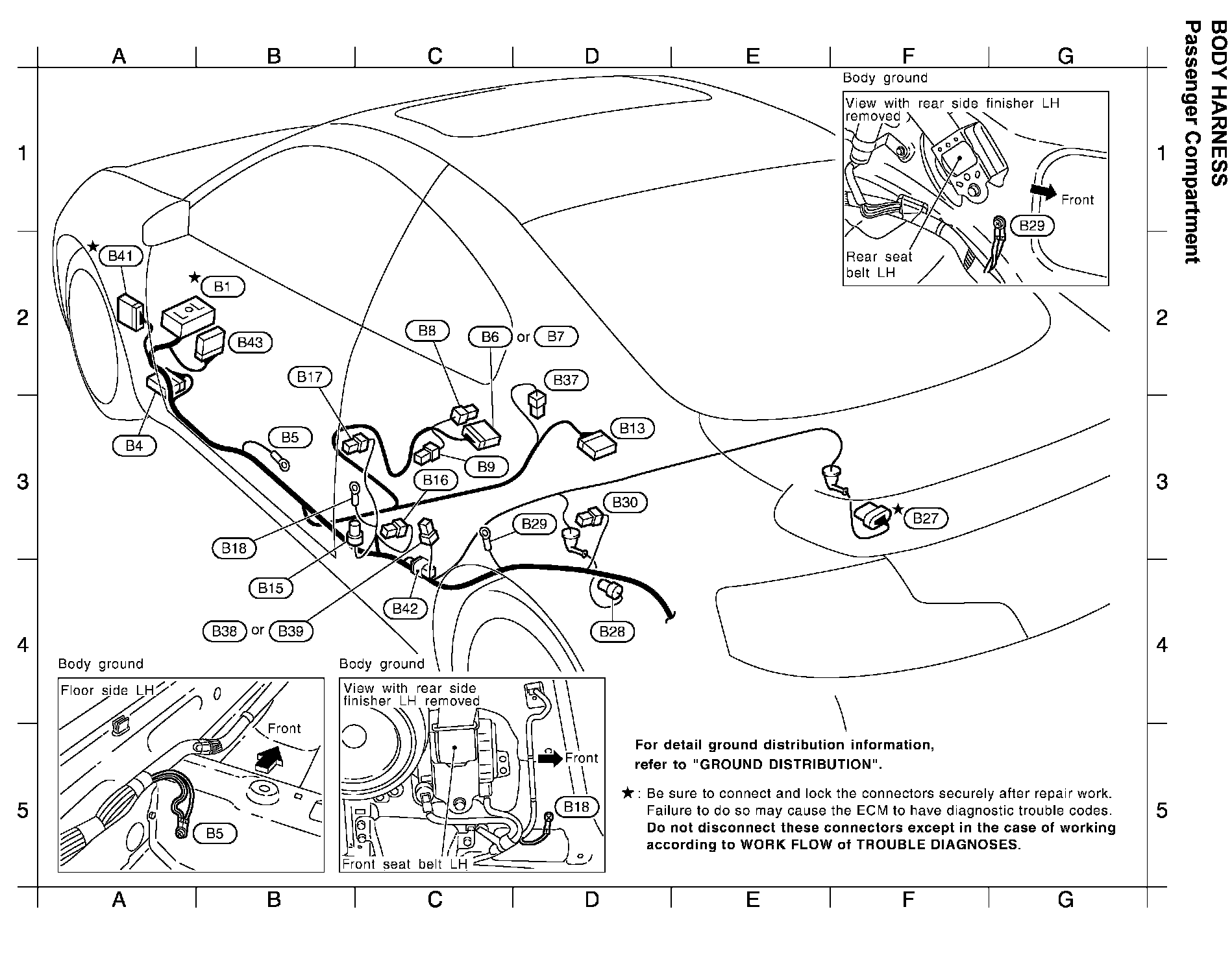

Part 1:

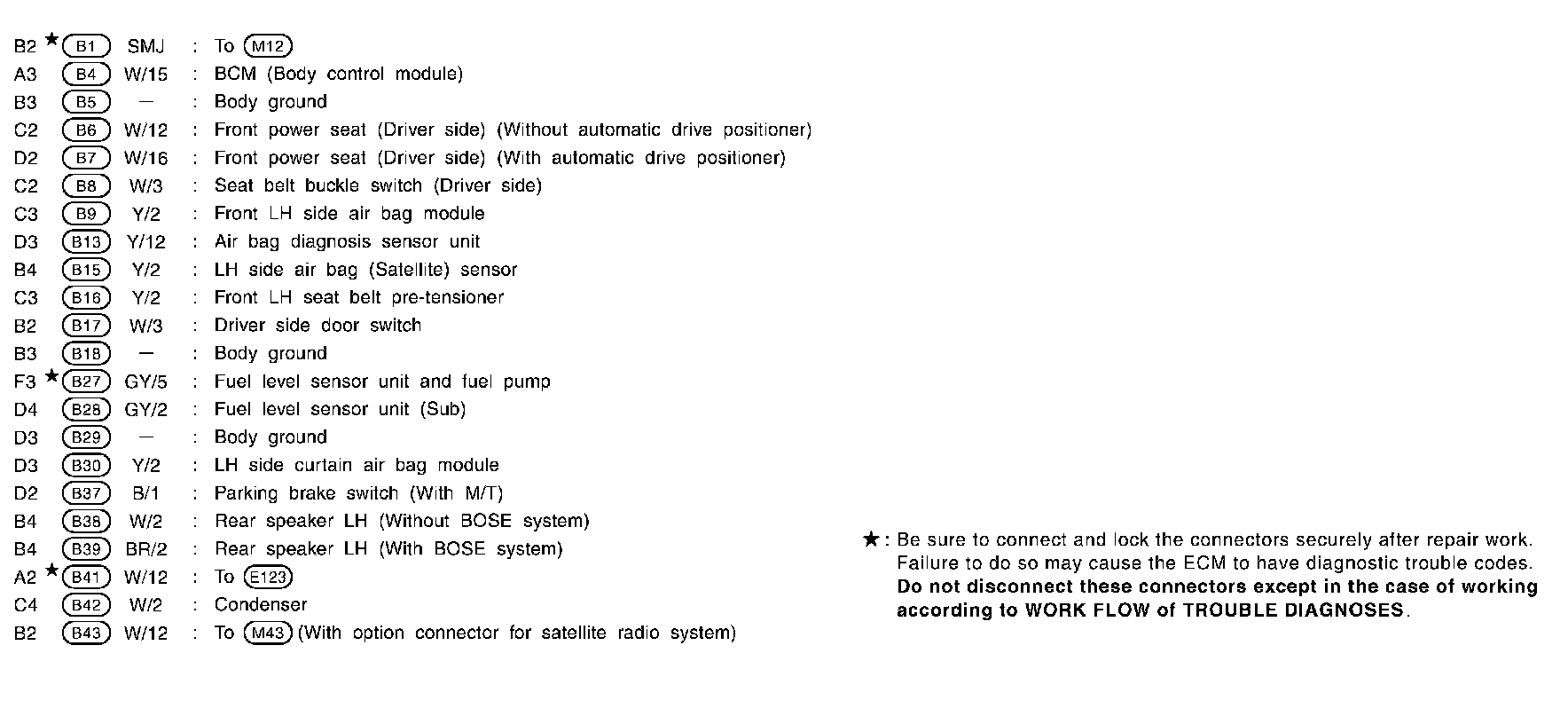

Part 2:
