Brake Control System Schematic
Brake Control System Schematic

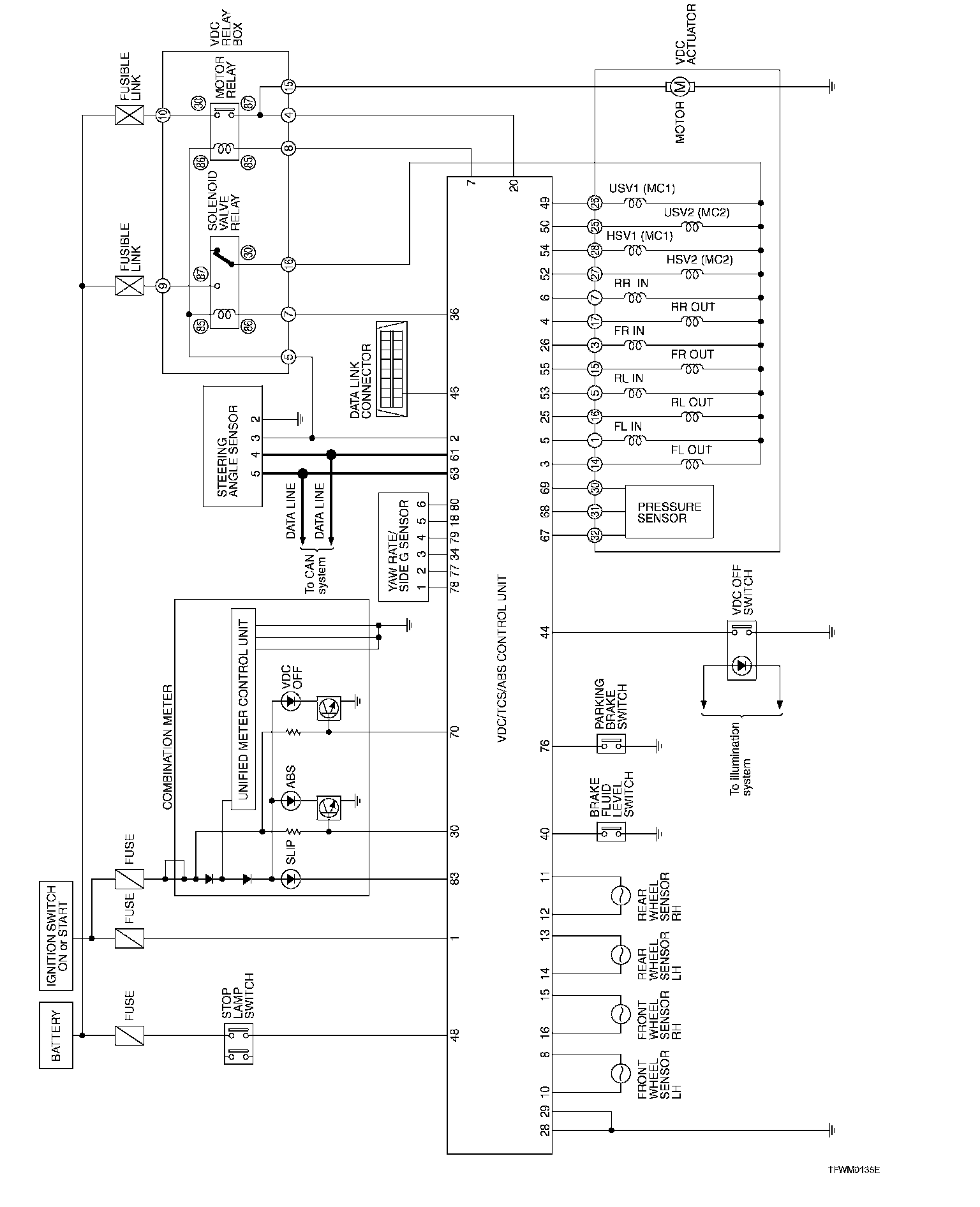

VDC/TCS/ABS Brake Control System Schematic:
