SRS Diagrams (Supplemental Restraint System)
SRS Diagrams (Supplemental Restraint System)

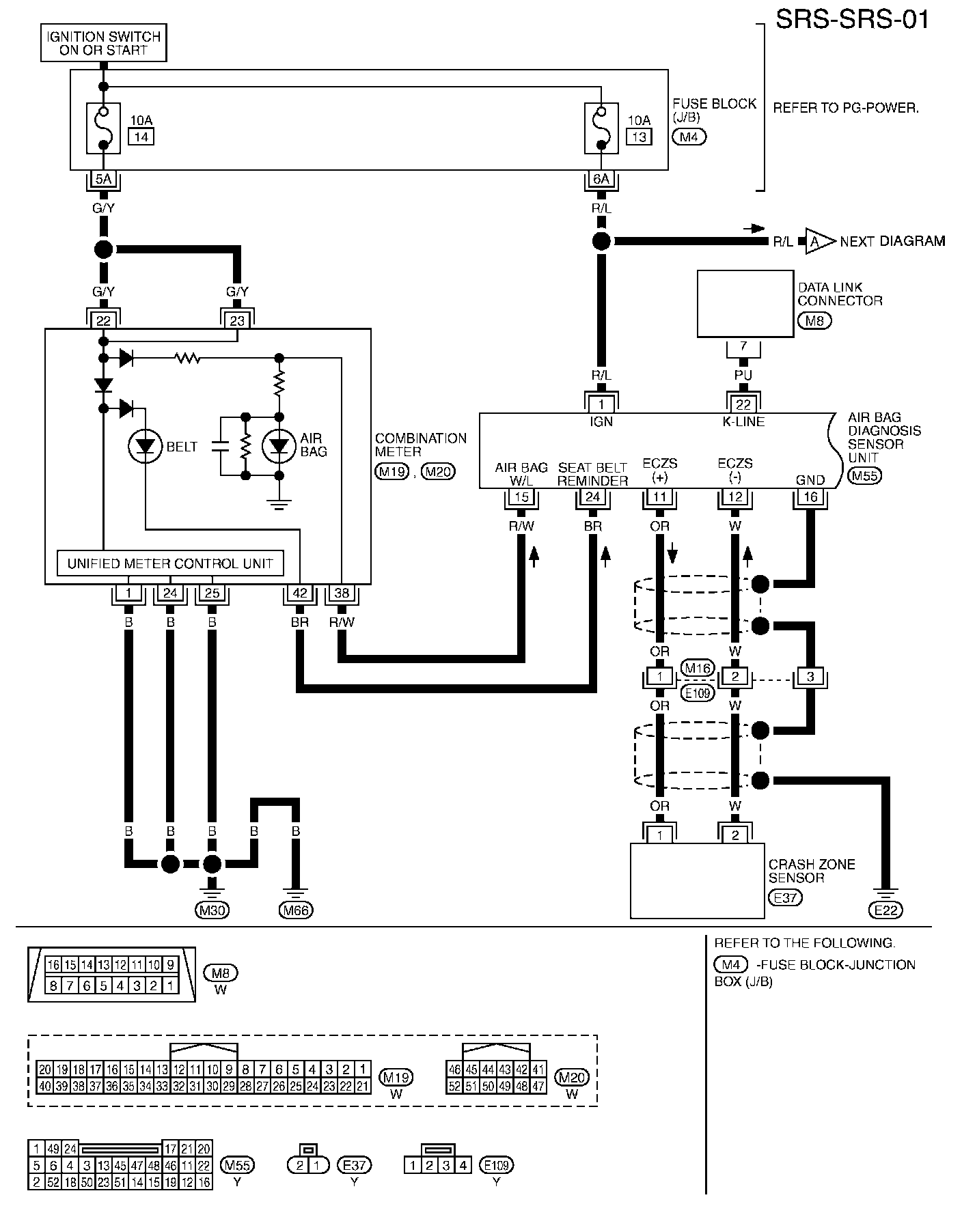

SRS-SRS-01:
SRS-SRS-02:

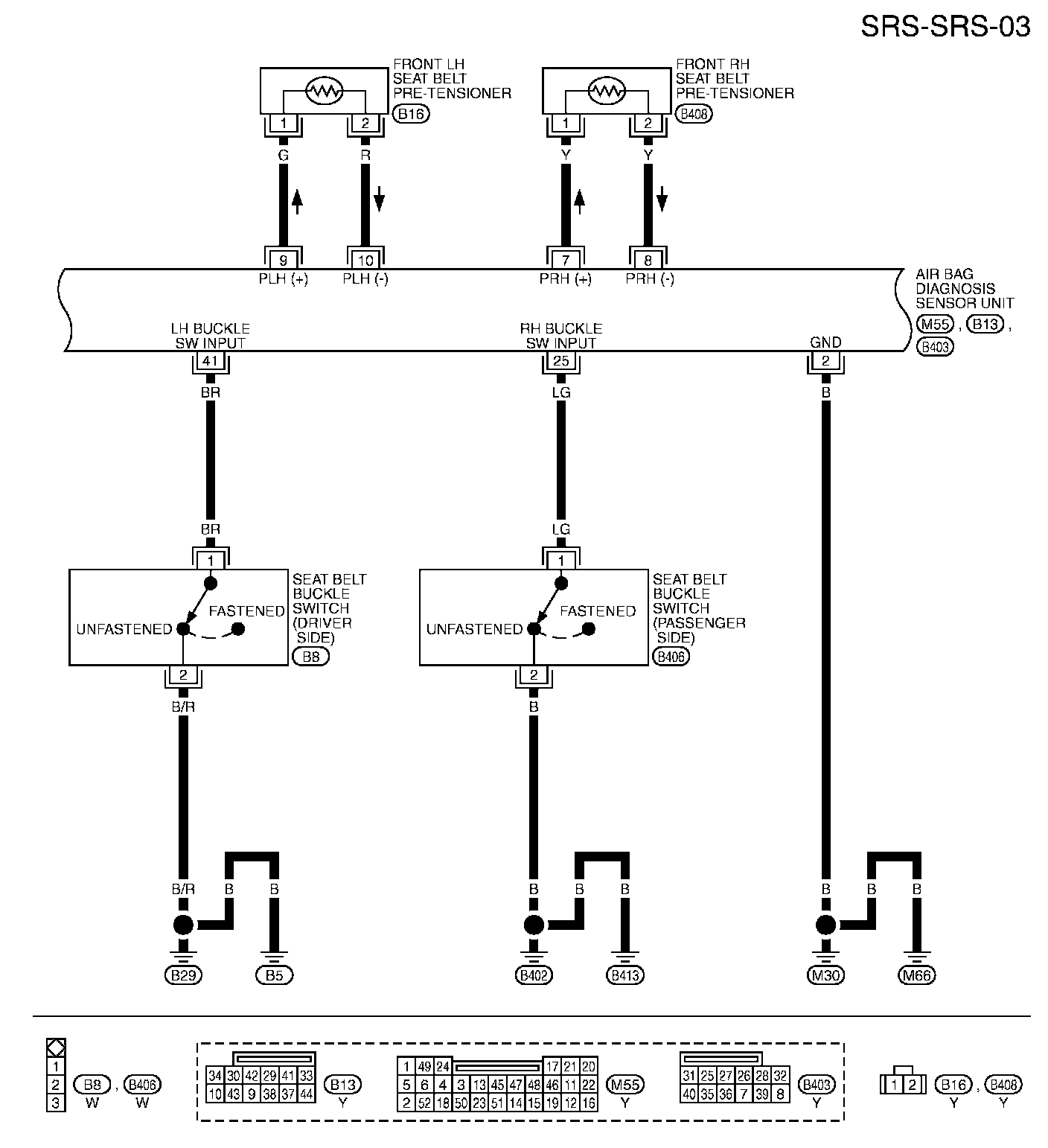

SRS-SRS-03:
SRS-SRS-04:

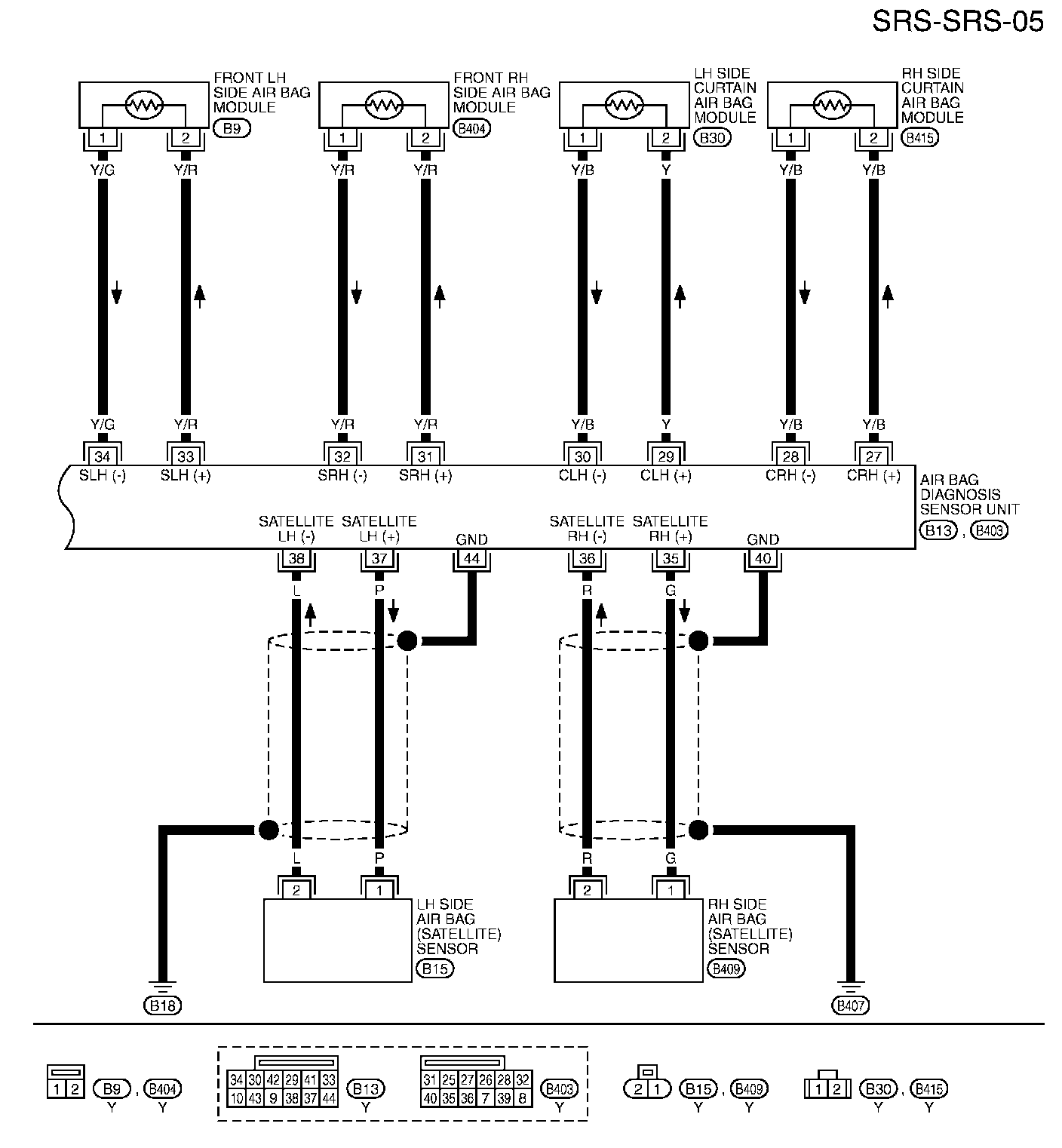

SRS-SRS-05:
