Seals and Gaskets: Service and Repair
Precautions for Liquid GasketREMOVAL OF LIQUID GASKET SEALING
^ After removing the mounting bolts and nuts, separate the mating surface using a seal cutter [SST] and remove the old liquid gasket sealing.
CAUTION: Be careful not to damage the mating surfaces.

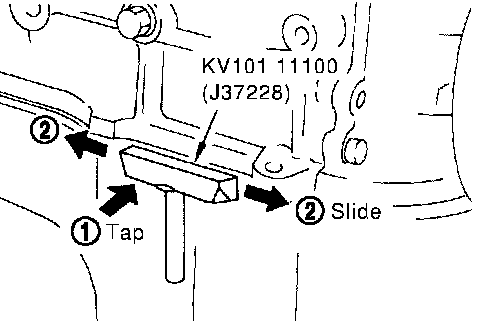

^ In areas where seal cutter [SST] is difficult to use, use a plastic hammer to lightly tap (1) seal cutter where liquid gasket is applied. Use plastic hammer to slide seal cutter (2) by tapping on the side.
CAUTION: If for some unavoidable reason a tool such as flat-bladed screwdriver is used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE

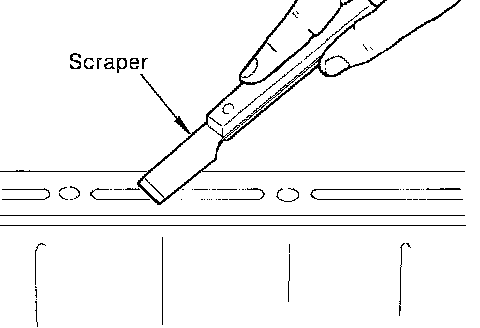

1. Using a scraper, remove the old liquid gasket adhering to the gasket application surface and the mating surface.
^ Remove the liquid gasket completely from the groove of the gasket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating use) to remove adhering moisture, grease and foreign material.
3. Attach the liquid gasket tube to the tube presser [SST: WS39930000 ( - )].
Use Genuine RTV Silicone Sealant or equivalent.
4. Apply liquid gasket without breaks to the specified location with the specified dimensions.

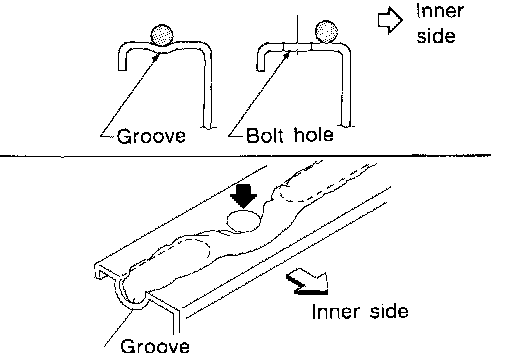

^ If there is a groove for the liquid gasket application, apply gasket to the groove.
^ As for bolt holes, normally apply liquid gasket inside the holes.
Occasionally, it should be applied outside the holes. Make sure to read the text of this manual.
^ Within five minutes of liquid gasket application, install the mating component.
^ If liquid gasket protrudes, wipe it off immediately.
^ Do not retighten mounting bolts and nuts after the installation.
^ After 30 minutes or more have passed from the installation fill engine oil and engine coolant.
CAUTION: If there are specific instructions in this manual, observe them.
