Timing Components: Specifications

Timing Cover





Tighten mounting bolts to the specified torque in numerical order as shown in the figure.
There are two type of mounting bolts. Refer to the following for locating bolts.
M8 bolts: 1, 2 25.5 - 31.3 Nm (2.6 - 3.2 kg-m, 19 - 23 ft. lbs.)
M6 bolts: Except the above 11.7 - 13.7 Nm (1.2 - 1.4 kg-m, 9 - 10 ft. lbs.)

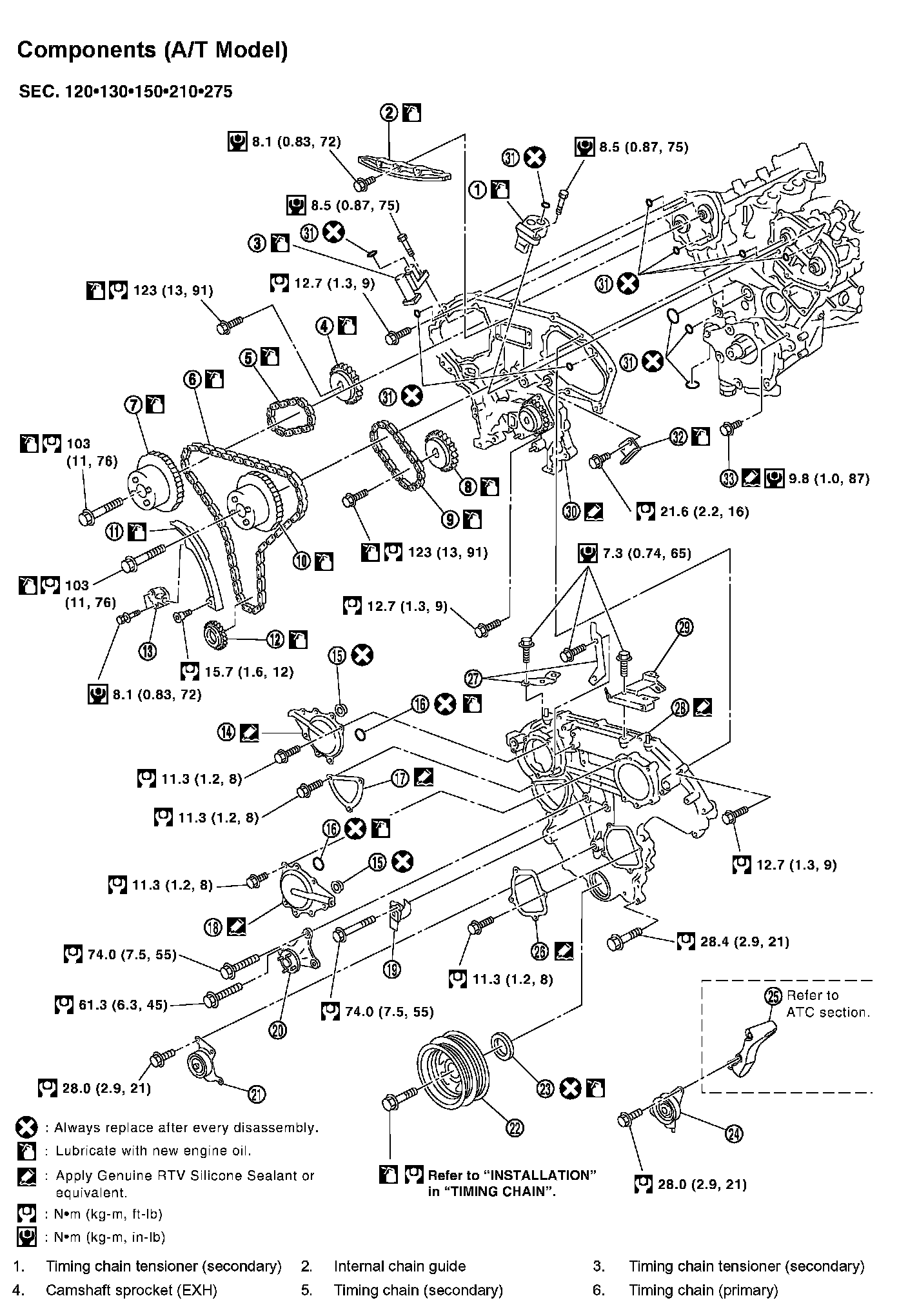

NOTE: Figure shows A/T models.

After all bolts tightened, retighten them to the specified torque in numerical order as shown in the figure.

Timing Chain Tensioner








M/T Model








A/T Model

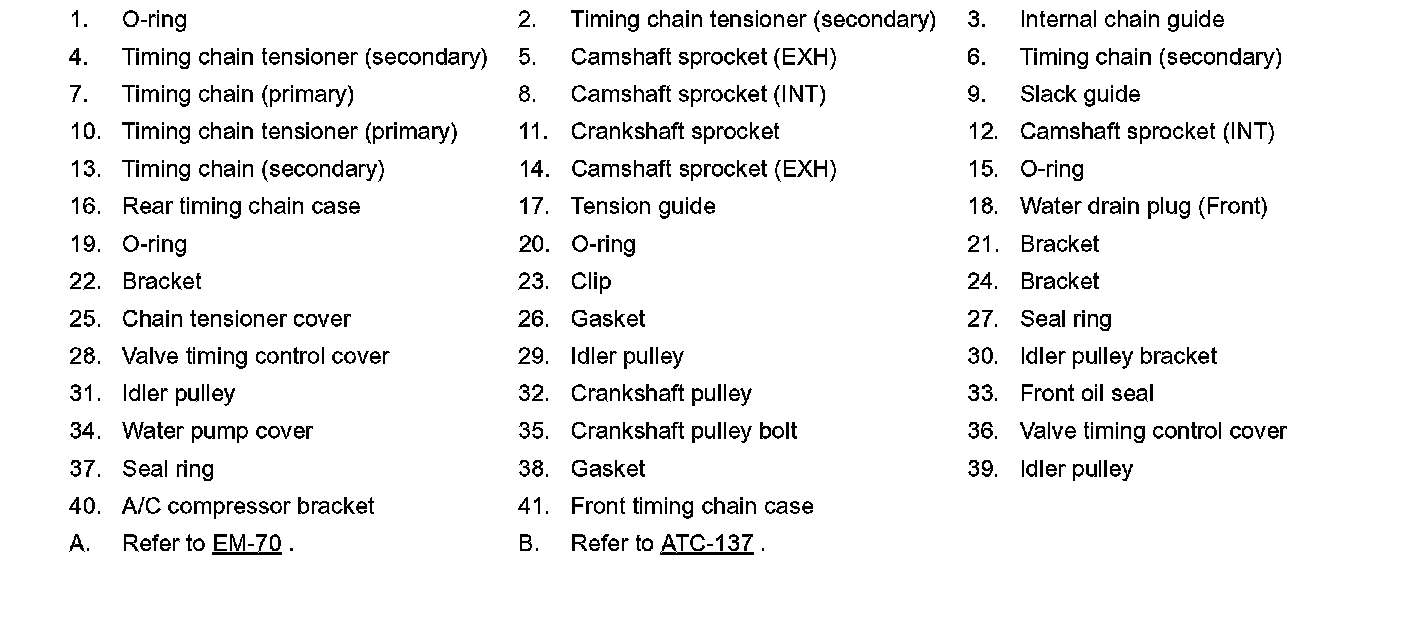

Image Symbols:

Crankshaft Pulley
Torque 44.1 Nm (4.5 kg-m, 33 ft. lbs.)





Turn crankshaft pulley bolt 90 degrees clockwise (angle tightening).

CAUTION: Check the tightening angle by using the angle wrench [SST]. Avoid judgement by visual inspection without SST.

^ Check tightening angle indicated on the angle wrench indicator plate.
