Air Duct: Service and Repair

DUCTS AND GRILLES

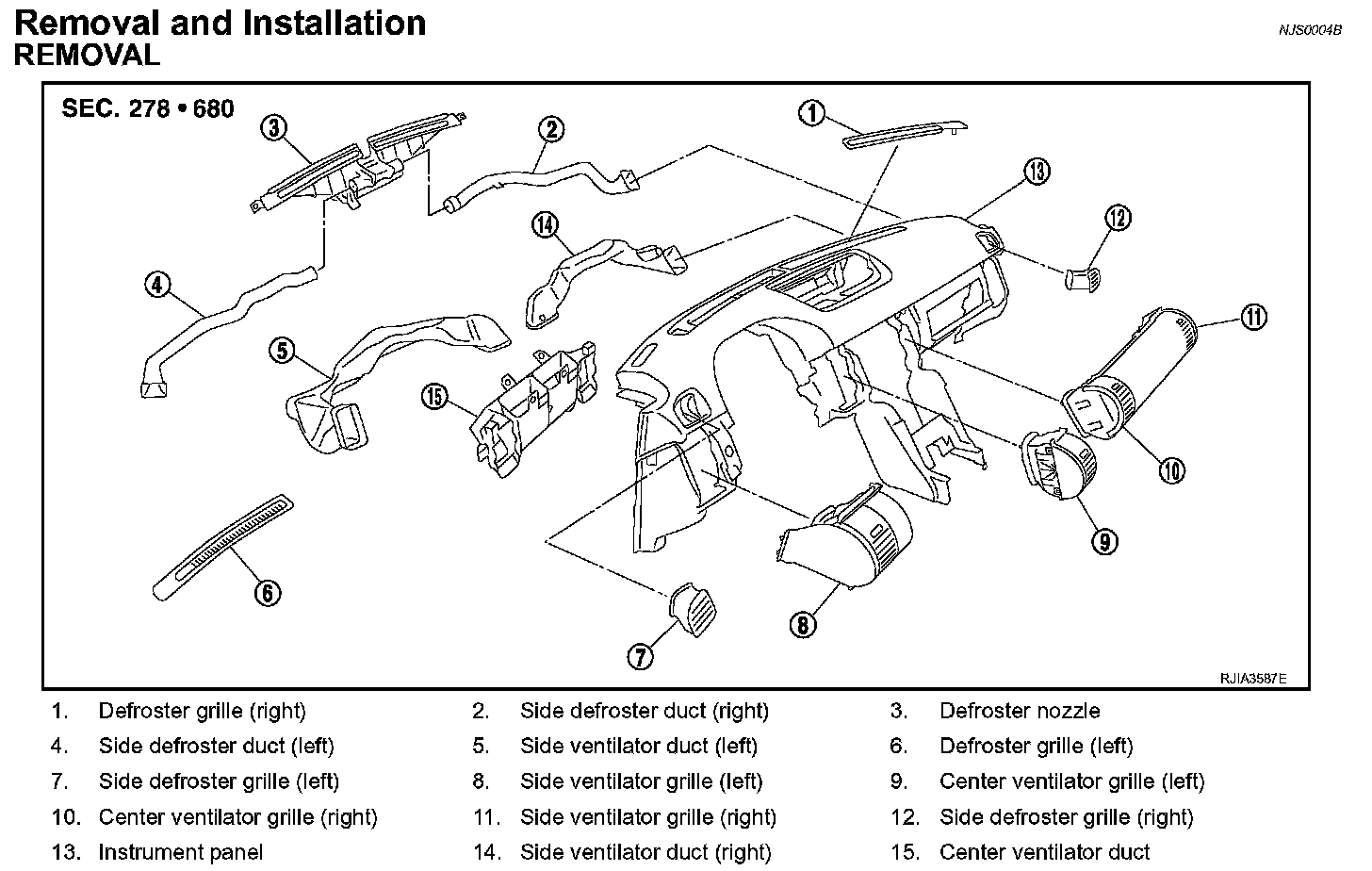

Removal and Installation




REMOVAL

Removal of Center Ventilator Grilles
1. Remove instrument driver lower panel.




2. Remove mounting screw, and then remove center ventilator grill (left).
3. Remove center box assembly.




4. Remove mounting screws, clips, and then remove center ventilator grille (right).

Removal of Side Ventilator Grilles
1. Remove center box assembly.




2. Remove mounting screw and clips, and then remove side ventilator grille (right).
3. Remove instrument driver lower panel.
4. Remove side ventilator grille (left).

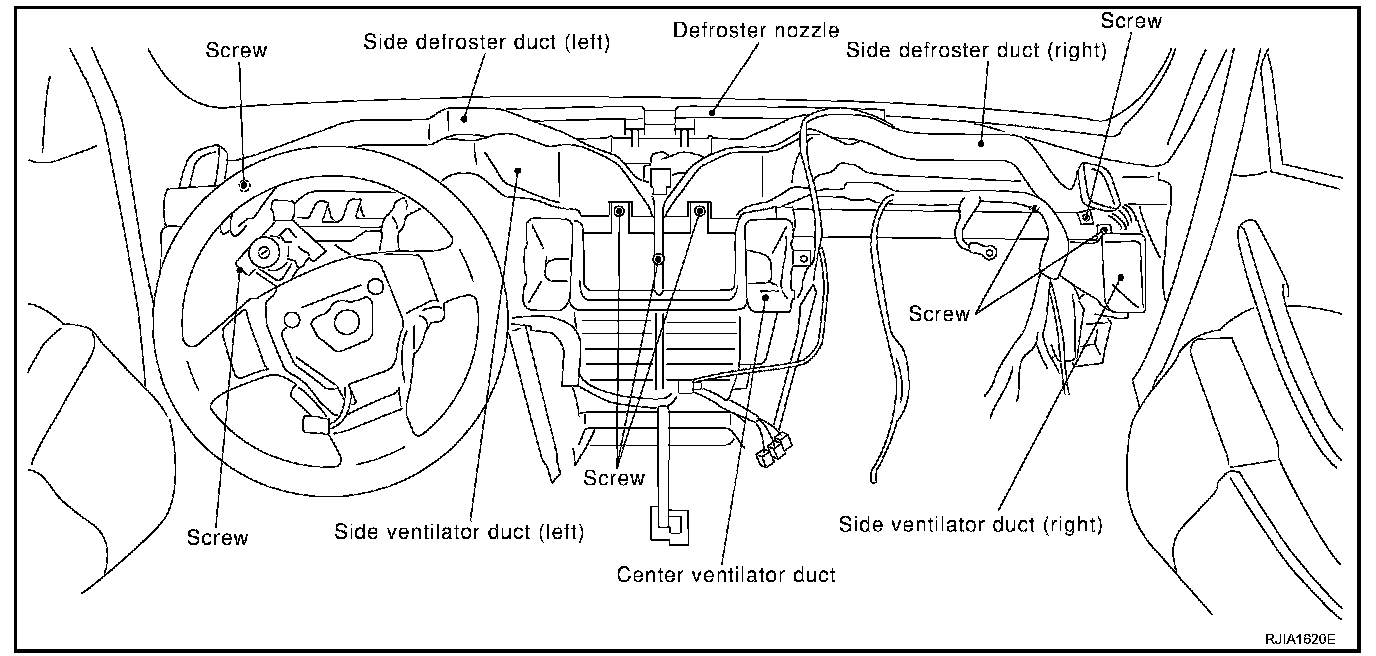

Removal of Defroster Nozzle, Ducts and Ventilator Ducts
1. Remove instrument panel assembly.




2. Remove mounting screws, and then remove side defroster ducts.
3. Remove defroster nozzle.
4. Remove mounting screws, and then remove center ventilator duct.
5. Remove steering member, and then remove side ventilator ducts.

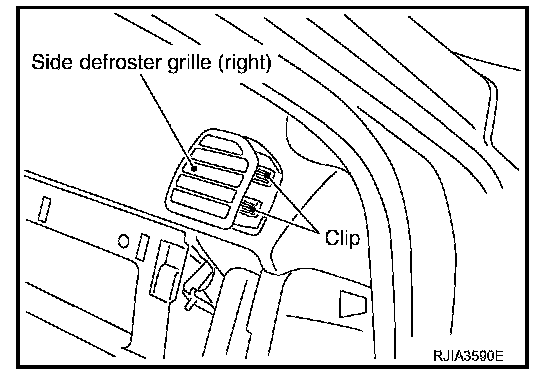

Removal of Side Defroster Grilles
Remove mounting clips, and then remove side defroster grilles.

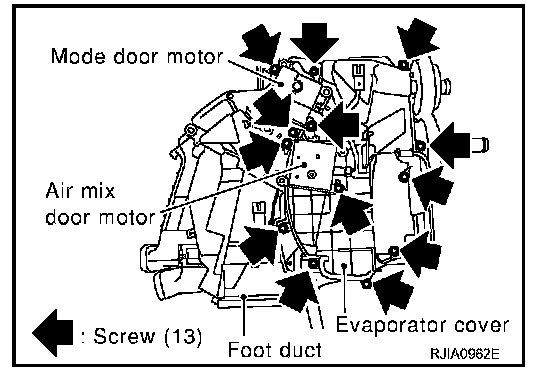

Removal of Foot Ducts
1. Remove heater & cooling unit.




2. Remove mounting screws, and then remove evaporator cover and foot duct (passenger side).
3. Remove foot duct (driver side).

Removal of Floor Ducts
1. Remove front seats and center console.
2. Peel back floor trim to a point where floor duct is visible.




3. Remove mounting clip, and then remove floor ducts.
4. Remove instrument panel assembly.




5. Remove front floor duct.

INSTALLATION
Installation is basically the reverse order of removal.
