Compressor HVAC: Service and Repair

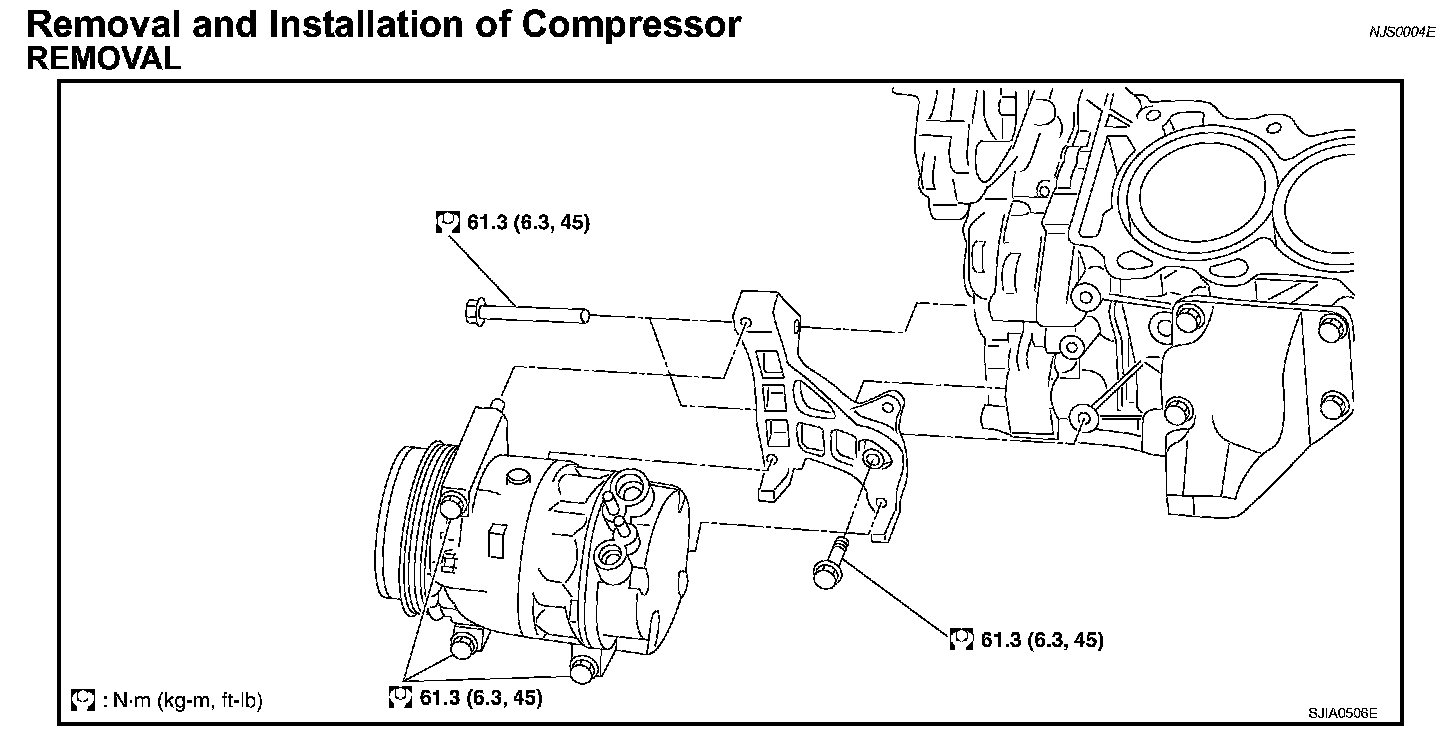

Removal and Installation of Compressor




REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

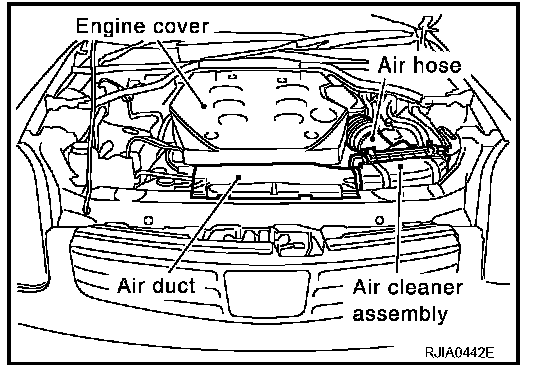

2. Remove engine cover with power tool. Refer to "INTAKE MANIFOLD COLLECTOR".




3. Remove air duct, air cleaner assembly and air hose.
4. Remove front air spoiler.
5. Remove engine under cover with power tool.




6. Remove mounting nuts from low-pressure and high-pressure flexible hose.

CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

7. Disconnect compressor (magnet clutch) connector.
8. Remove A/C compressor belt.

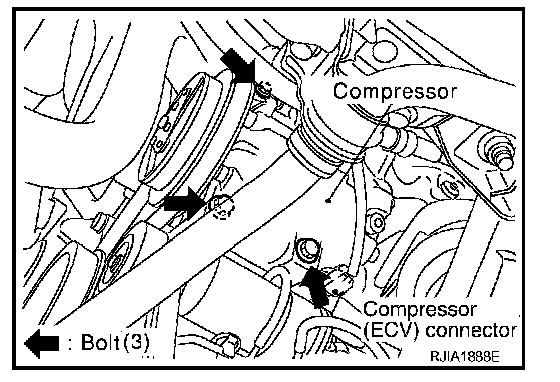

9. Disconnect compressor (ECV) connector.
10. Remove mounting bolts from compressor.
11. Remove compressor downward of the vehicle.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Replace O-rings of low-pressure flexible hose and high-pressure flexible hose with new ones, and then apply compressor oil to it when installing it.
- When recharging refrigerant, check for leaks.
