Heater Core: Service and Repair

HEATER CORE

Removal and Installation

REMOVAL
1. Remove heater & cooling unit assembly. Service and Repair

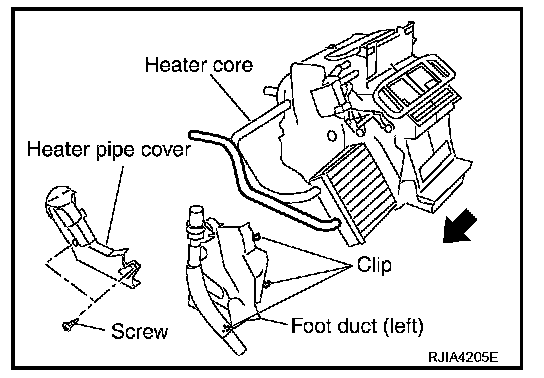

2. Remove mounting screws, and then remove heater pipe cover.
3. Remove mounting clips, and then remove foot duct (left).
4. Slide heater core to leftward.

INSTALLATION
Installation is basically the reverse order of removal.
