Receiver Dryer: Service and Repair

Removal and Installation of Liquid Tank

REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove front grille.
3. Clean liquid tank and its surrounding area, and remove dirt and rust from liquid tank.

CAUTION: Be sure to clean carefully.

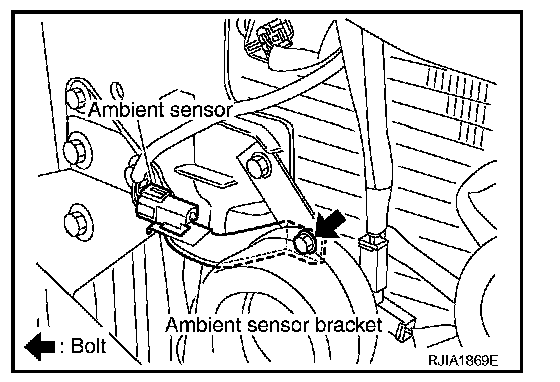

4. Remove ambient sensor bracket after removing horn (right side).

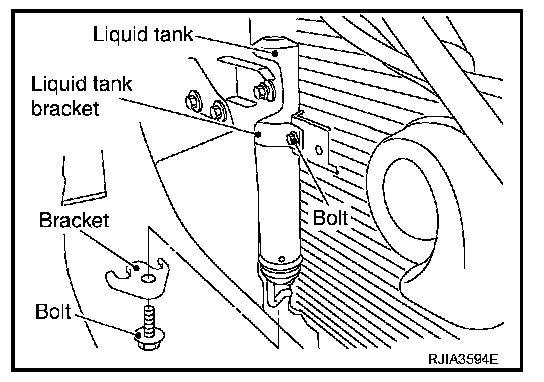

5. Remove mounting bolts from liquid tank.




6. Lift liquid tank bracket upward. Remove bracket from protruding part of condenser.
7. Slide liquid tank upward, and then remove liquid tank.




INSTALLATION
Install liquid tank, and then install liquid tank bracket on condenser.

CAUTION:

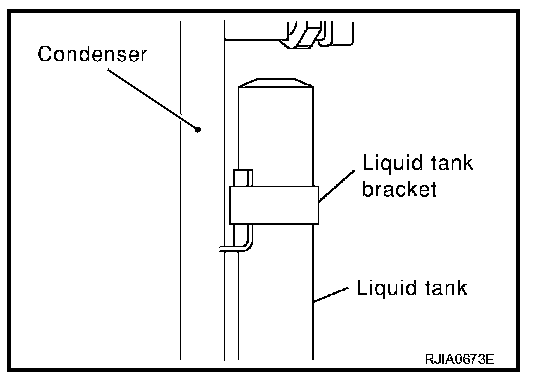

- Make sure liquid tank bracket is securely installed at protrusion of condenser. (Make sure liquid tank bracket does not move to a position below center of liquid tank.)
- Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing it.
- When recharging refrigerant, check for leaks.

Liquid tank bracket mounting bolt (upper side) torque : 3.4 N.m (0.34 kg-m, 30 in-lb)
Liquid tank bracket mounting bolt (lower side) torque : 5.7 N.m (0.58 kg-m, 50 in-lb)
