Refrigerant Pressure Sensor / Switch: Service and Repair

Removal and Installation of Refrigerant Pressure Sensor

REMOVAL
1. Remove condenser.

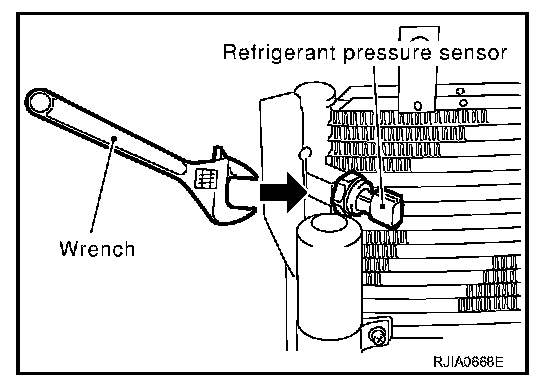

2. Remove refrigerant pressure sensor from condenser.

CAUTION: When working, be careful not to damage the condenser.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION: Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.

Refrigerant pressure sensor torque : 10.8 N.m (1.1 kg-m, 8.0 ft-lb)
