Disassembly and Assembly

Disassembly and Assembly




CLUSTER LID A ASSEMBLY

Disassembly
1. Remove screws, and then remove mirror control switch.
2. Remove screws, and then remove cluster lid A cover.
3. Remove screws, and then remove combination meter.

Assembly
Assemble in the reverse order of disassembly.





CLUSTER LID C ASSEMBLY

Disassembly
1. Remove cluster lid C panel.
2. Remove NAVI switch.
3. Remove A/C and audio controller.
4. Remove display unit.
5. Remove instrument upper pocket (without NAVI models).
6. Remove audio assembly.
7. Remove instrument mask (without audio models).
8. Remove pocket deck.

Assembly
Assemble in the reverse order of disassembly.

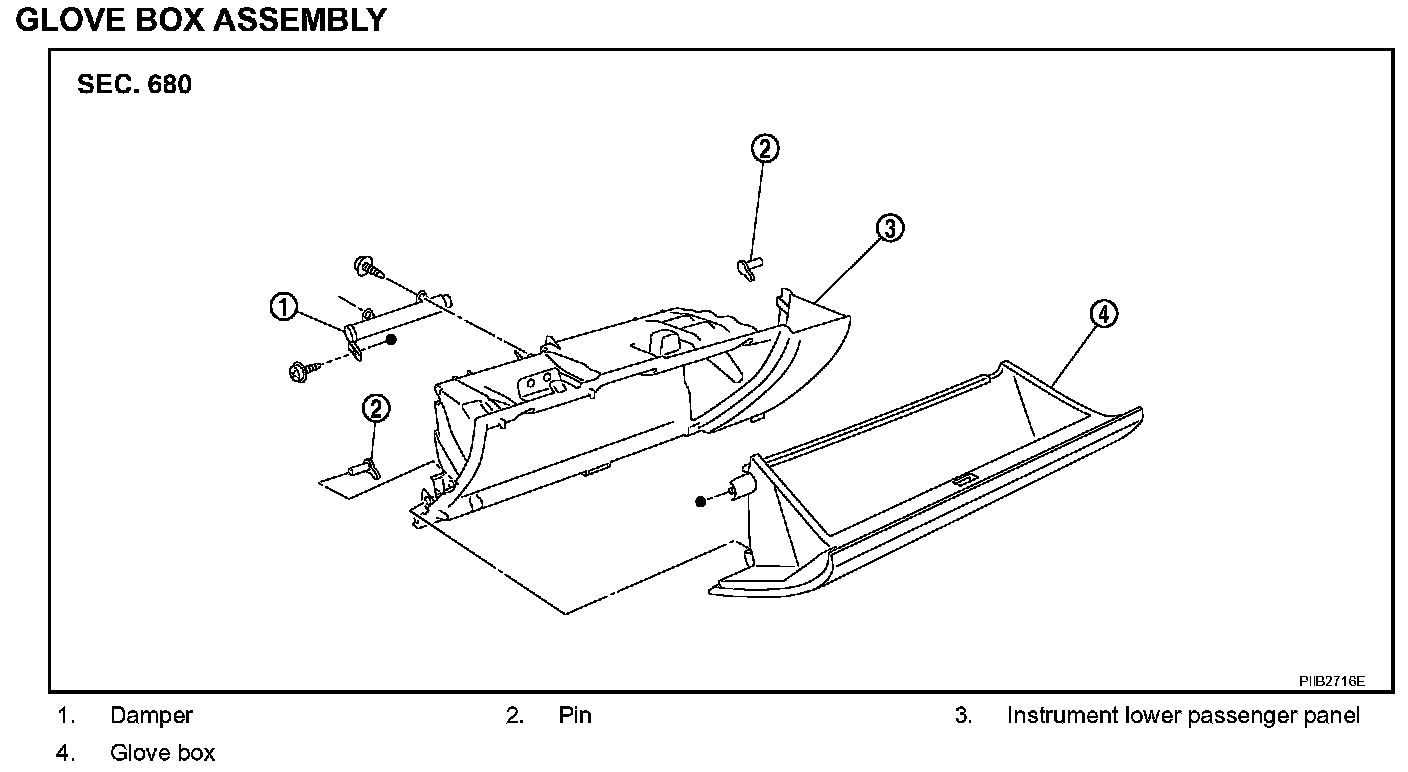

GLOVE BOX ASSEMBLY

Disassembly
1. Remove screws of damper wire portion.
2. Disconnect glove box pins, and remove glove box.
3. Remove screws on back side of instrument lower passenger panel, and remove damper.

Assembly
Assemble in the reverse order of disassembly.




CENTER BOX ASSEMBLY

Disassembly
1. Remove screws and pawls, and then remove side ventilator grille (RH) and center ventilator grille.
2. Remove screws, and then remove pocket (without NAVI models).
3. Remove screws, and then remove center box upper and lower lid.

Assembly
Assemble in the reverse order of disassembly.

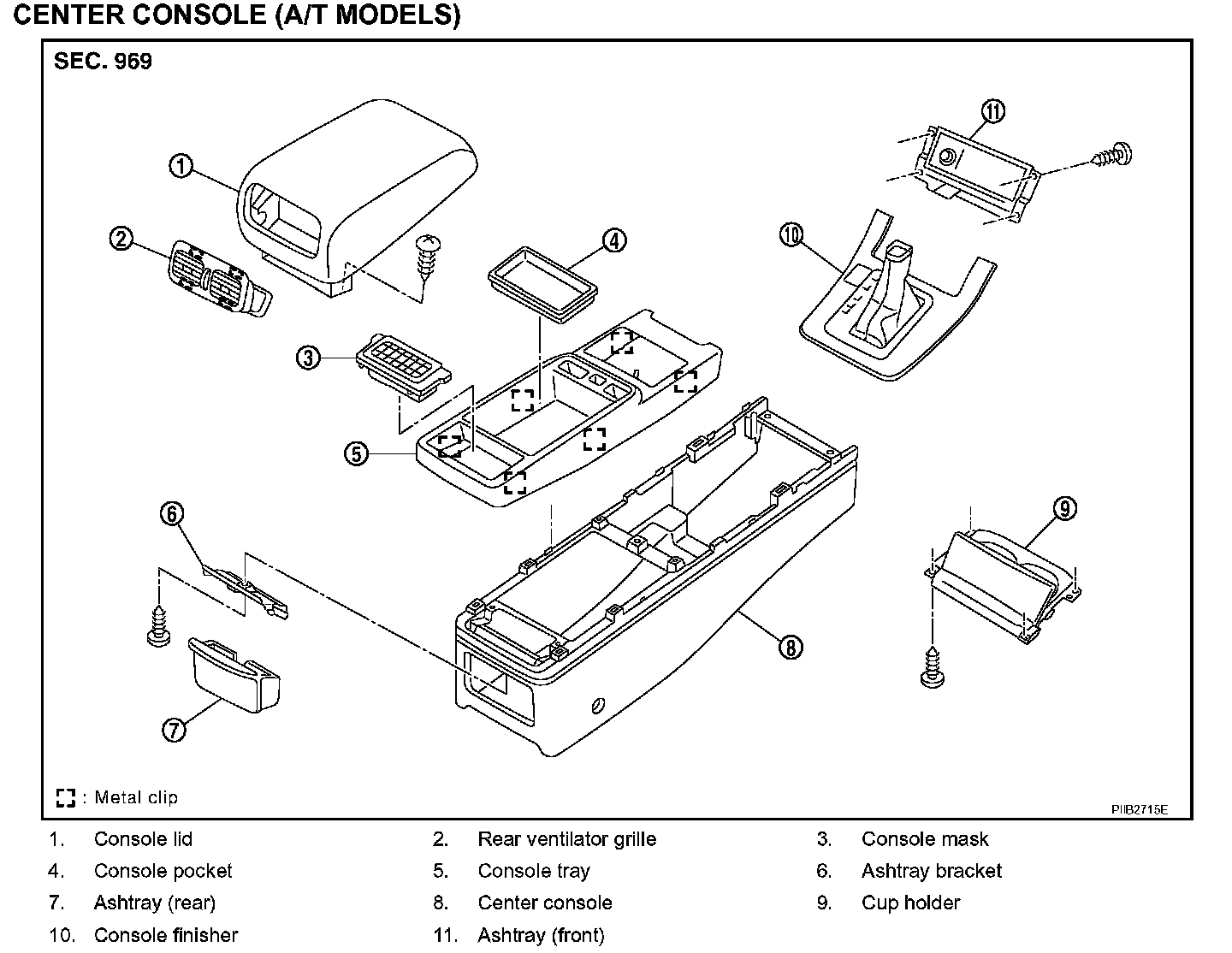

CENTER CONSOLE (A/T MODELS)

Disassembly
1. Remove screws of back side (front), and remove ashtray (front portion).
2. Remove console mask.
3. Remove screws and remove console lid.
4. Disconnect metal clips and remove rear ventilator from console lid.
5. Remove ashtray.
6. Remove screws and remove ashtray bracket.
7. Disconnect metal clips (back side), and remove console tray.
8. Remove screws of back side (lower), and remove cup holder.

Assembly
Assemble in the reverse order of disassembly.




CENTER CONSOLE (M/T MODELS)

Disassembly
1. Remove console mask.
2. Remove screws and remove console lid.
3. Remove metal clips and remove console tray.
4. Remove ashtray.
5. Remove screws of back side, and remove switch bezel and cup holder w/shutter.
6. Remove screws of back side, and remove console bracket and console box.

Assembly
Assemble in the reverse order of disassembly.
