Removal and Installation

INSTRUMENT PANEL ASSEMBLY

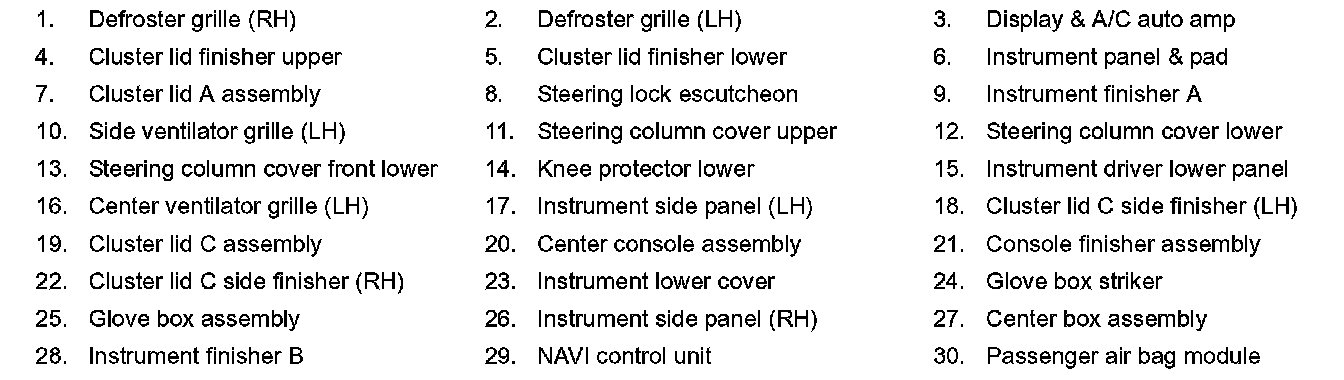

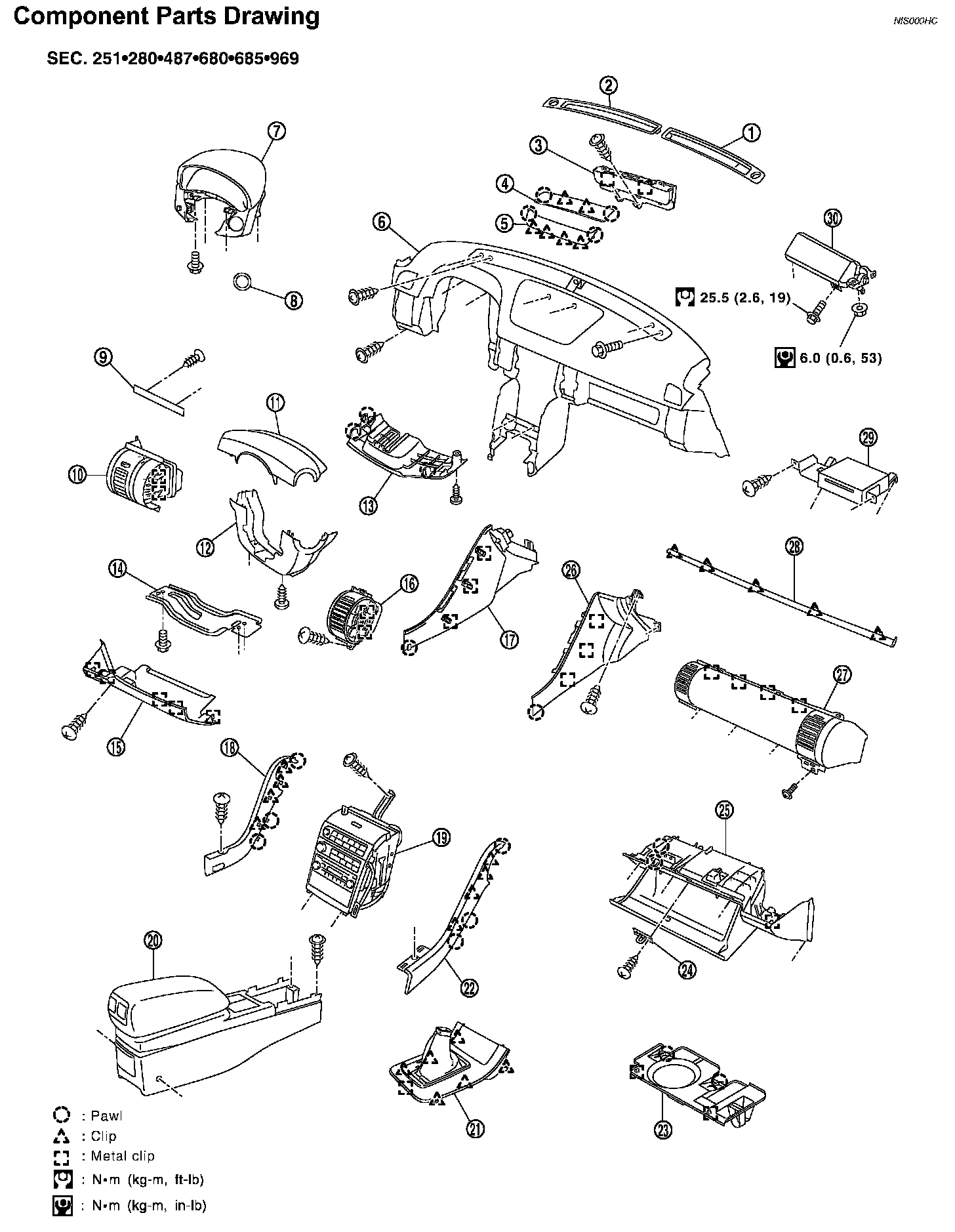

Component Parts Drawing

Removal and Installation

Part 1:

Part 2:

WORK STEP

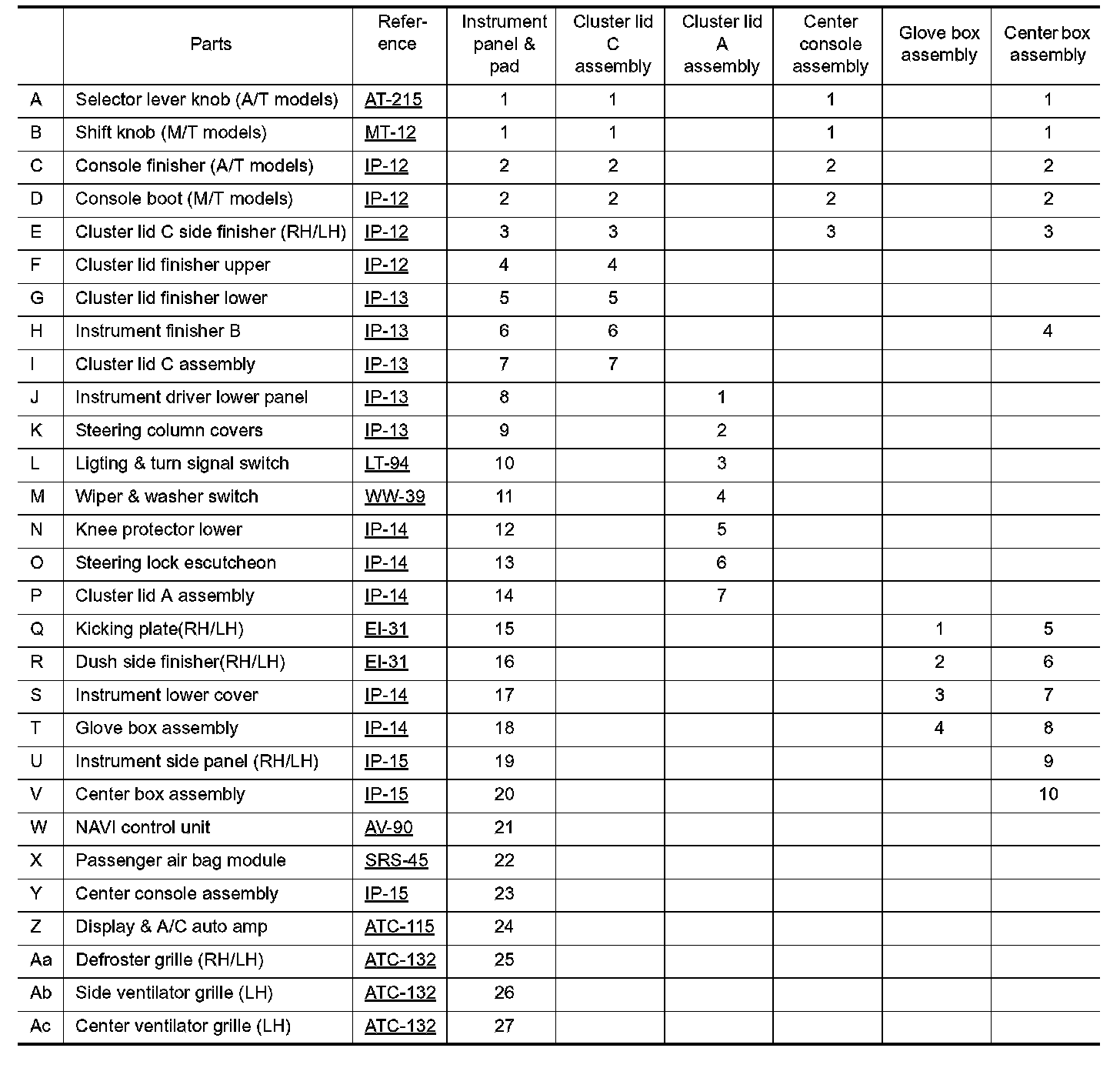

When removing instrument panel and pad, cluster lid C assembly, cluster lid A assembly, center console assembly, glove box assembly and center box assembly, take steps in the order shown by the numbers in the table.

REMOVAL
A. Selector lever Knob (A/T Models)
Remove selector lever knob.

B. Shift Knob (M/T Models) Remove shift knob.
C. Console Finisher (A/T Models)




1. Put selector lever in drive position.
2. Remove clips from rear of console finisher, then remove clips at front. Pull console finisher upward to disengage from console.

CAUTION: Guide pin inserted into A/T device guide can be easily broken. Be careful when removing it.

3. Disconnect harness connectors, and remove console finisher.
4. After removing, remove each parts from console finisher.

D. Console Boot (M/T Models)
1. Insert a thin flat-bladed screwdriver wrapped with tape from behind console boot, and remove metal clip on back. Then pull up and back to disengage from front metal clip.
2. Disconnect hazard switch harness connector, and remove console boot.

E. Cluster Lid C Side Finisher (RH/LH)
1. Remove screws.




2. Disconnect pawls, and remove cluster lid C side finisher.

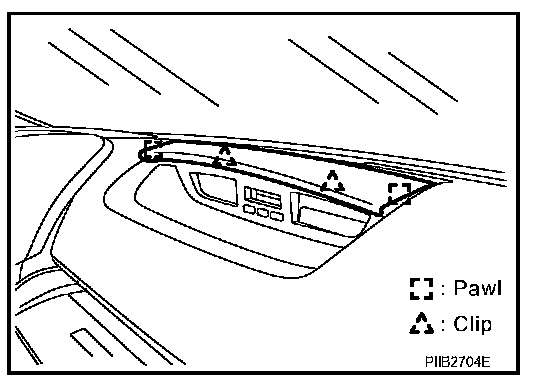

F. Cluster Lid Finisher Upper
Pull to the backside, disconnect clips and pawls, and remove cluster lid finisher upper.




G. Cluster Lid Finisher Lower
Disconnect pawls and clips, and remove cluster lid finisher lower.




H. Instrument Finisher B
Disconnect clips, and remove instrument finisher B.

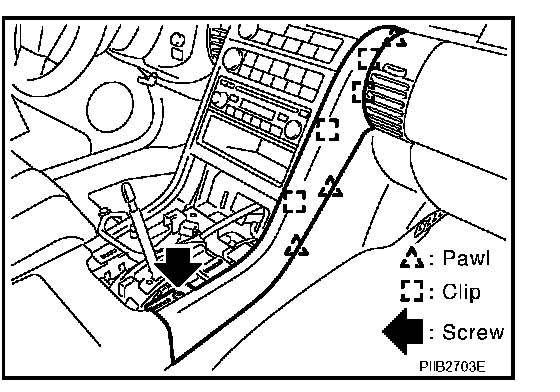

I. Cluster Lid C Assembly




1. Remove screws.
2. Disconnect harness connector of display unit and audio unit, and remove cluster lid C assembly.

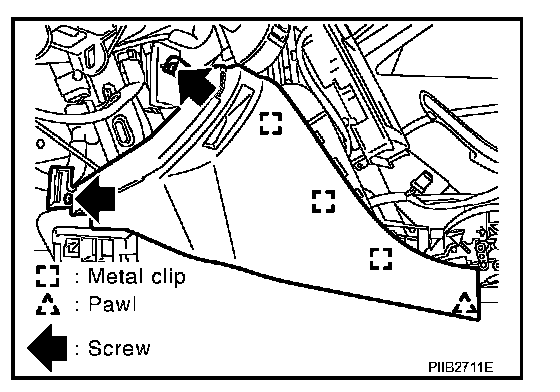

J. Instrument Driver Lower Panel




1. Remove screws.
2. Pull back to your side, disconnect metal clips and remove instrument driver lower panel.
3. Disconnect in-vehicle sensor and each electrical parts connectors.
4. Remove grommet, and remove hood lock cable.

K. Steering Column Covers
1. Remove screws and pawls and remove steering column cover front lower.
2. Disconnect pawls, and remove upper and lower side of steering column covers.

L. Lighting and Turn Signal Switch
Remove lighting and turn signal switch.

M. Wiper and Washer Switch
Remove wiper and washer switch.




N. Knee Protector Lower
Remove bolts and then remove knee protector lower.

O. Steering Lock Escutcheon
Pull back to your side, and remove steering lock escutcheon.




P. Cluster Lid A Assembly
After removing bolts, disconnect harness connectors of combination meter and mirror control switch, and remove cluster lid A assembly.

Q. Kicking Plate (RH/LH)
Remove kicking plate (RH/LH).

R. Dash Side Finisher (RH/LH)
Remove dash side finisher (RH/LH).




S. Instrument Lower Cover
Pull downward, disconnect metal clips, and remove instrument lower cover.

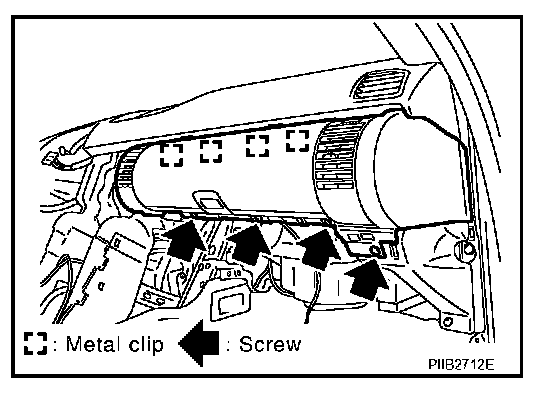

T. Glove Box Assembly
1. Remove screws with power tool.




2. Pull back to your side, and disconnect clips, and remove glove box assembly.

U. Instrument Side Panel (RH/LH)




1. Remove screws.
2. Pull to the side, disconnect metal clips and harness connector, and remove instrument side panel (RH/LH).

V. Center Box Assembly




1. Remove screws.
2. Hold left side of center box assembly, pull to outside of vehicle and disconnect metal clips. Remove center box assembly.

W. NAVI Control Unit
Remove screws, and disconnect harness connector, and remove NAVI control unit.

X. Passenger Air Bag Module
Remove bolts and nuts, and remove passenger air bag module.

Y. Center Console Assembly
Remove screws and remove center console assembly.

Z. Display and A/C auto amp Assembly
Remove screws, and disconnect harness connector, and remove display and and A/C auto amp assembly.

Aa. Defroster Grille (RH/LH)
Disconnect pawls with screwdriver wrapped in cloth and remove defroster grille. Refer to "DUCTS AND GRILLES".

Ab. Side Ventilator Grille (LH)
Pull back to your side, disconnect metal clips and remove side ventilator grille. Refer to "DUCTS AND GRILLES".

Ac. Center Ventilator Grille (LH)
Pull back to your side, disconnect metal clips and remove center ventilator grille. Refer to "DUCTS AND GRILLES".

Ad. Front Pillar Garnish (RH/LH)
Pull to inside of vehicle, disconnect metal clips and remove front pillar garnish. Refer to "BODY SIDE TRIM".

Ae. Instrument Panel and Pad
1. Lower steering column.
2. Remove bolts and screws, and remove instrument panel and pad from passenger door opening portion.

INSTALLATION
Install in the reverse order of removal.
