Removal and Installation
Removal and Installation for Combination MeterREMOVAL
1. Remove steering column cover.
2. Remove lighting and turn signal switch.
3. Remove front wiper and washer switch.
4. Remove instrument lower driver panel.
5. Remove the screws (4) and remove cluster lid A and combination meter assembly
6. Disconnect connectors and remove combination meter.

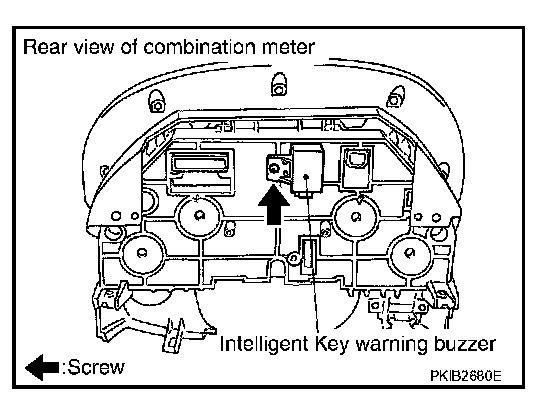

7. Remove the screw (1) and remove Intelligent Key warning buzzer (with Intelligent Key).

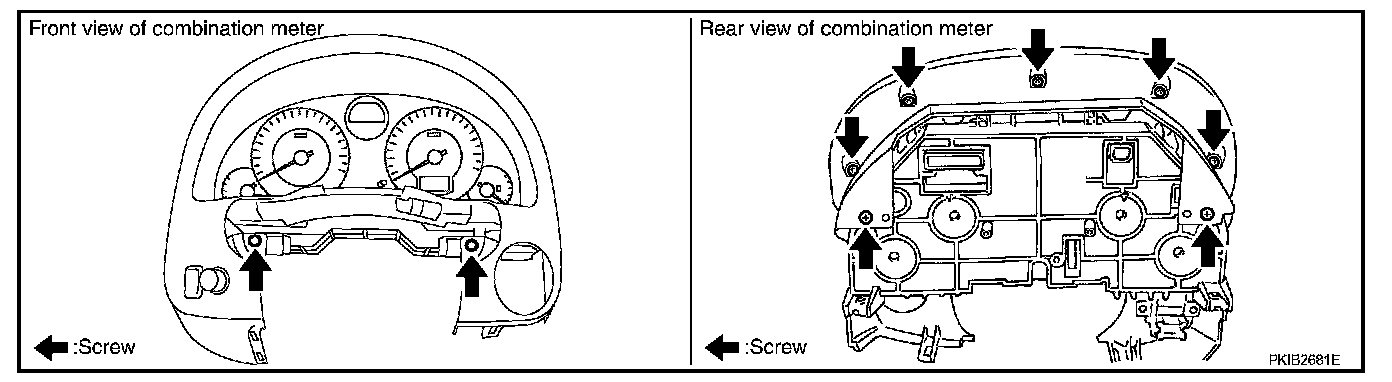

8. Remove the screws (9) and disassemble cluster lid A and combination meter.
INSTALLATION
Installation is the reverse order of removal.
