Key Reminder Switch: Testing and Inspection

KEY SWITCH

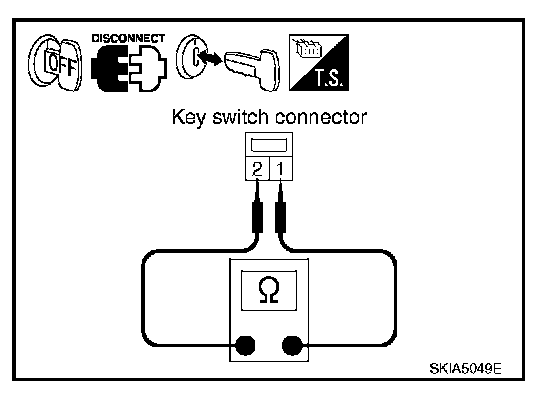

Check continuity between terminals 1 and 2.

1 - 2
When key is inserted to ignition key cylinder : Continuity should exist.
When key is removed from ignition key cylinder : Continuity should not exist.

KEY SWITCH AND IGNITION KNOB SWITCH

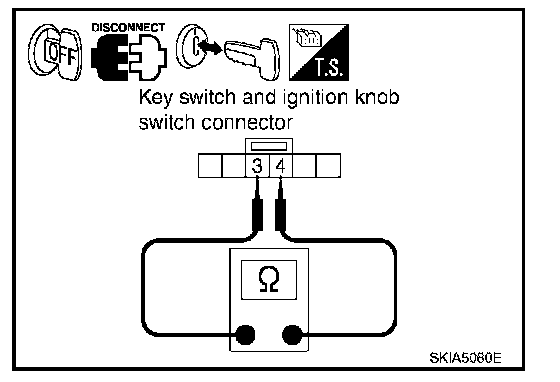

Check continuity between terminals 3 and 4.

3 - 4
When key is inserted to ignition key cylinder : Continuity should exist.
When key is removed from ignition key cylinder : Continuity should not exist.
