Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2006
>>
G35 Coupe V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Power Supply and Ground Circuit Inspection
Power Supply and Ground Circuit Inspection

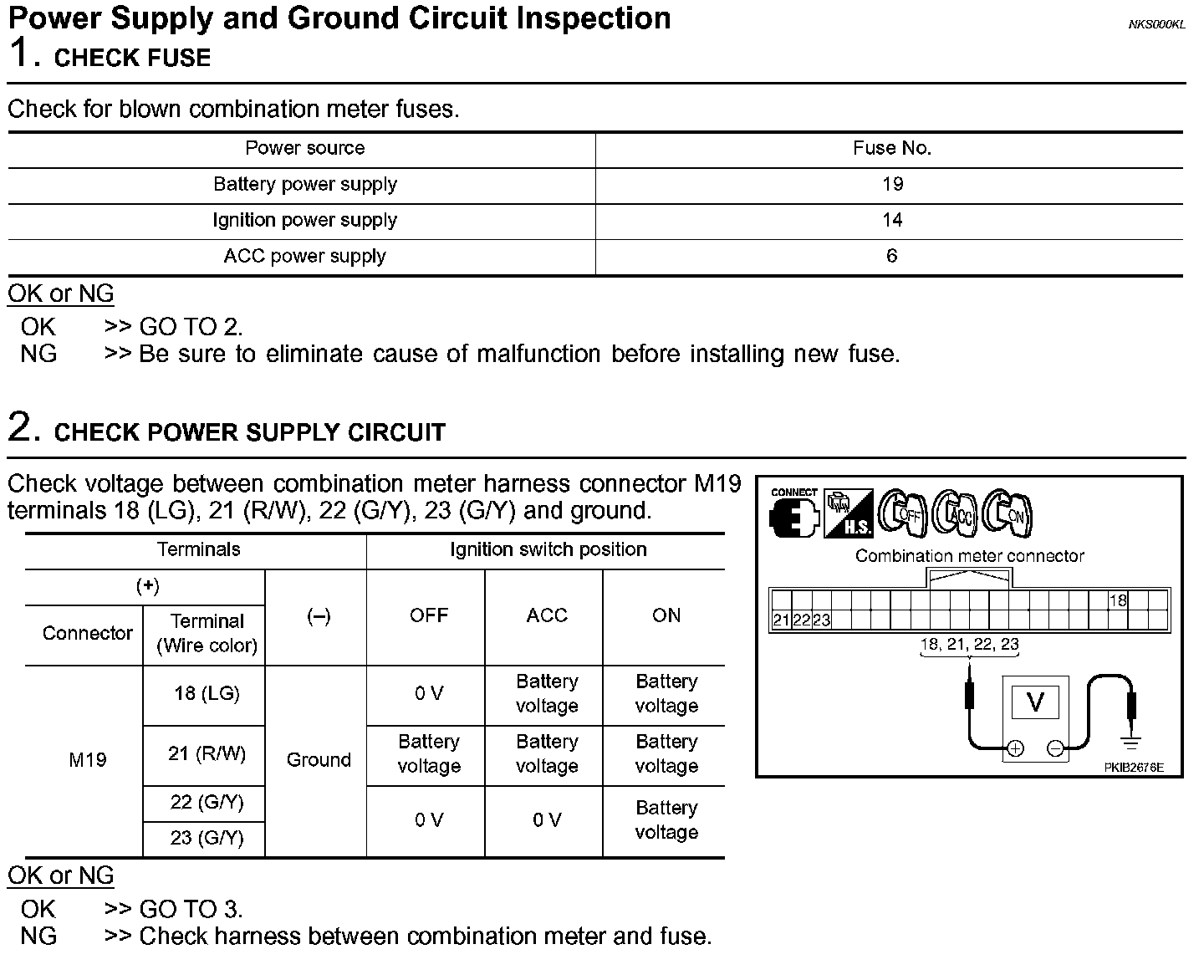

Power Supply And Ground Circuit Inspection (Steps 1 - 2):

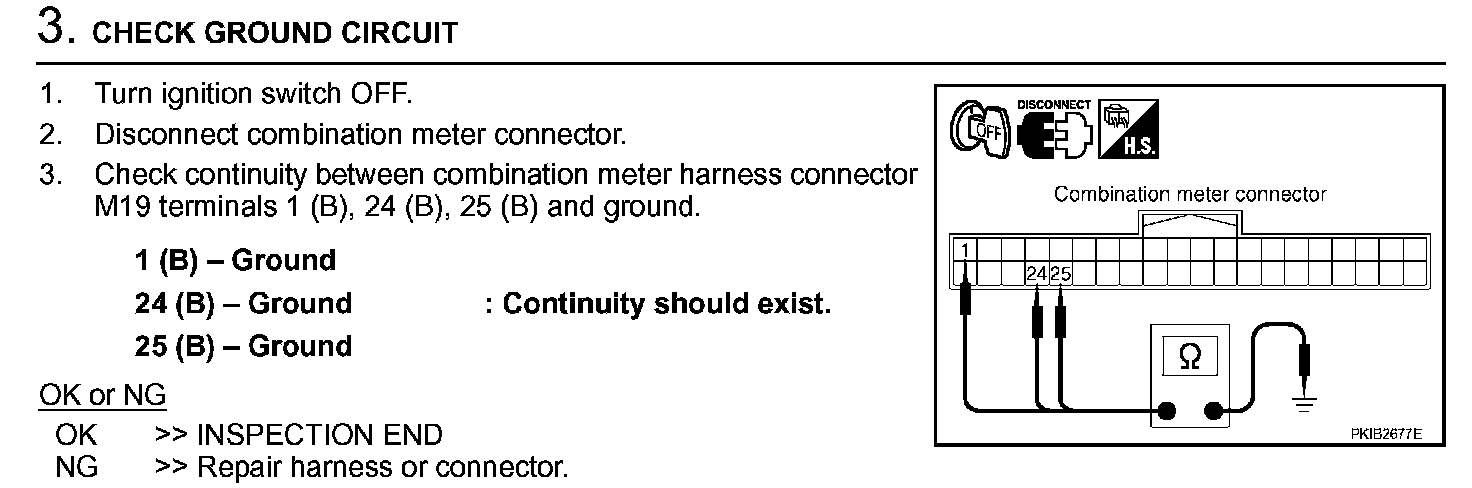

Power Supply And Ground Circuit Inspection (Step 3):
