Upshift Indicator - M/T: Description and Operation

SHIFT-UP INDICATOR
Shift-up indicator can be used when shifting up at a constant engine speed from any gear while driving. It becomes a guide for shift-up timing.
- Combination meter receives engine speed signal (CAN communication signal) from ECM.
- Shift-up indicator (1) flashes before reaching engine speed set, approximately 500 rpm before, then it illuminates when reaching the engine speed set.

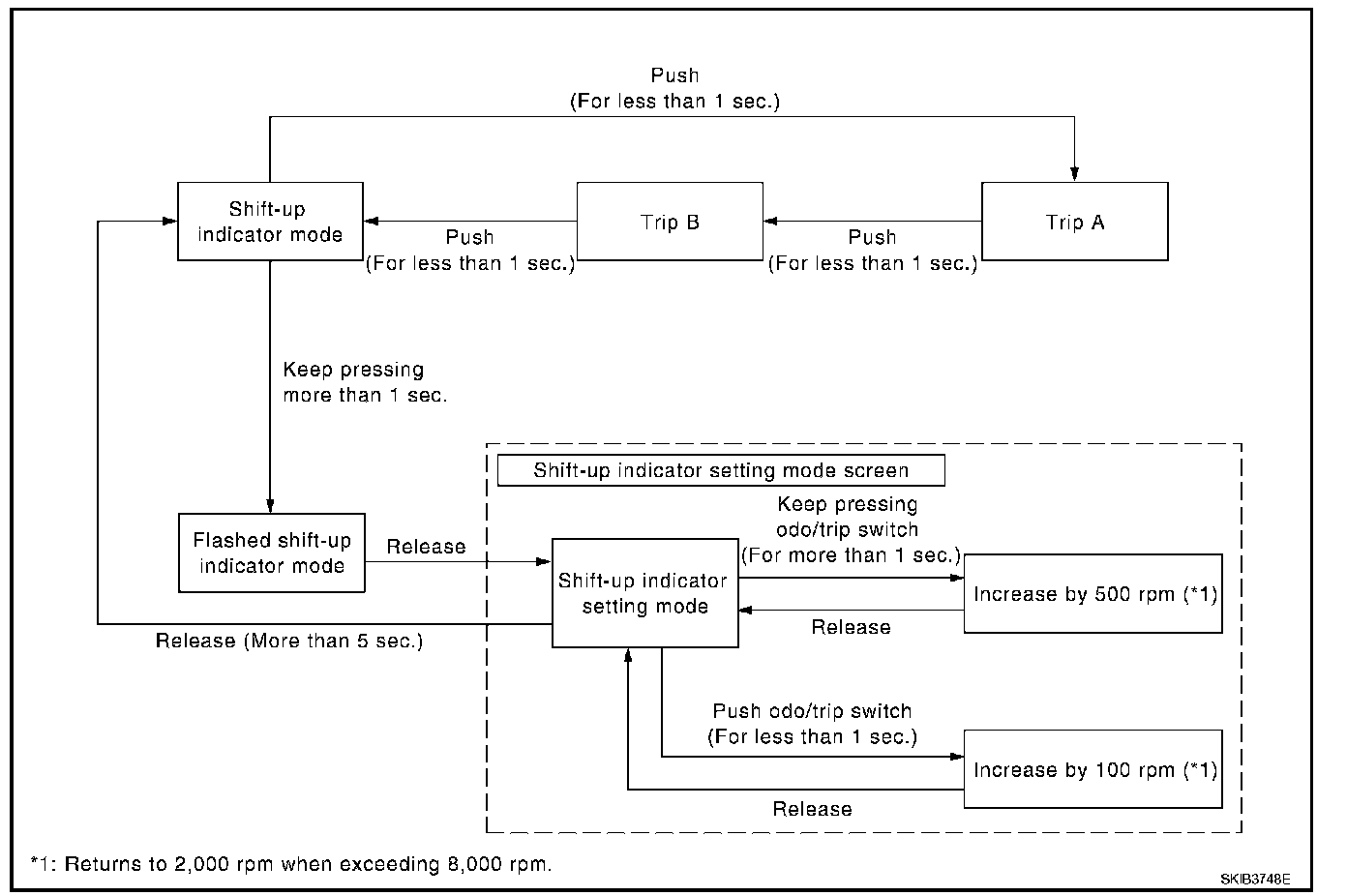

Setting Procedure of Shift-up Engine (Speed rpm)
Setting of shift-up engine speed with odo/trip meter.
1. Push odo/trip switch (for less than 1 sec.) to change trip meter display to "trip A" - "trip B" - shift-up indicator mode.
2. Keep pressing odo/trip switch (for more than 1 sec.), then release odo/trip switch (display flashes and changes to shift-up indicator setting mode).
3. Set according to the following.
a. Keep pressing odo/trip switch (for more than 1 sec.): Increase setting engine speed by 500 rpm.
b. Push odo/trip switch (for less than 1 sec.): Increase setting engine speed by 100 rpm.

NOTE: The range of engine speed is 2,000 - 8,000 rpm (Pushing odo/trip switch when exceeding 8,000 rpm returns to 2,000 rpm).

4. Stop the flash when not pushing odo/trip switch for more than 5 sec. (Shift-up engine speed is set.)

NOTE: Setting is 8,000 rpm (the initial setting rpm) when disconnecting the battery cable.
