Center Mounted Brake Lamp: Service and Repair

Removal and Installation of High-Mounted Stop Lamp

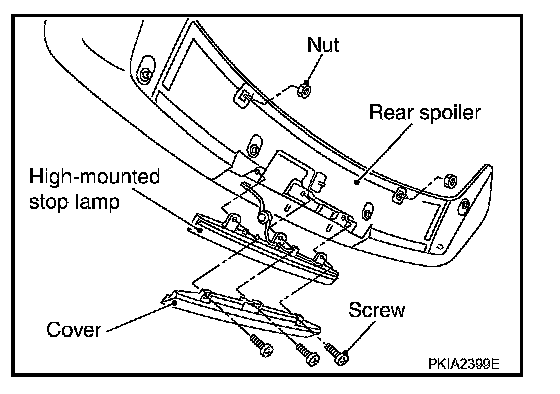

REMOVAL (WITH REAR SPOILER)




1. Remove rear spoiler.
2. Remove screws and remove high-mounted stop lamp from rear spoiler.
3. Disconnect high-mounted stop lamp connector.

INSTALLATION
Installation is the reverse order of removal.

REMOVAL (WITHOUT REAR SPOILER)




1. Remove rear parcel shelf finisher.
2. Remove screws and remove high-mounted stop lamp from rear parcel shelf finisher.
3. Disconnect high-mounted stop lamp connector.

INSTALLATION
Installation is the reverse order of removal.
