Door Switch: Testing and Inspection

Component Inspection

DRIVER SIDE DOOR SWITCH

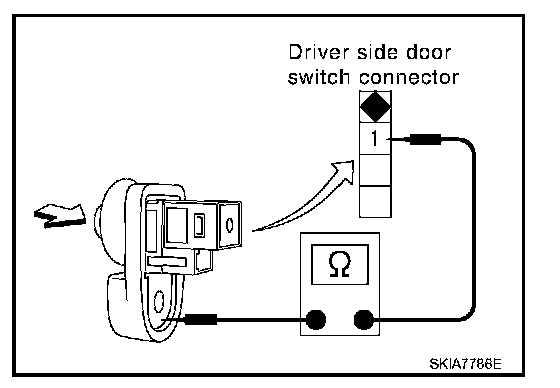

Check continuity between terminal 1 and door switch case ground.

1 - Driver side door switch case ground
When driver side door switch is released : Continuity should exist.
When driver side door switch is pushed : Continuity should not exist.
