Tail Lamp: Service and Repair

Removal and Installation

REMOVAL




1. Open trunk lid and remove trunk rear finisher (end). Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER".
2. Disconnect rear combination lamp connector.

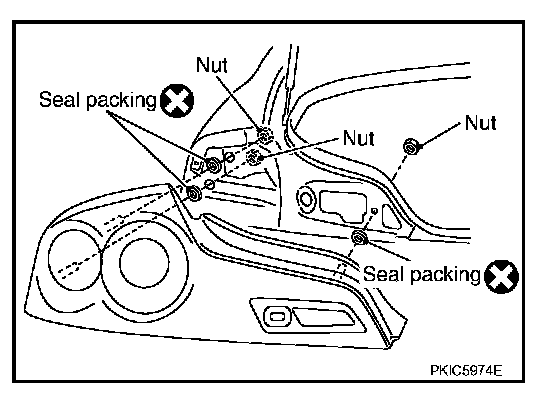

3. Remove rear combination lamp installation nuts.
4. Pull the rear combination lamp toward rear of the vehicle and remove from the vehicle.
5. Remove seal packing from the vehicle.

INSTALLATION
Installation is the reverse order of removal.
- Install a new seal packing to the rear combination lamp.

CAUTION: Seal packing cannot be reused.

Rear combination lamp mounting nut : 3.2 N�m (0.33 kg-m, 28 in-lb)
