Auxiliary Power Outlet: Service and Repair

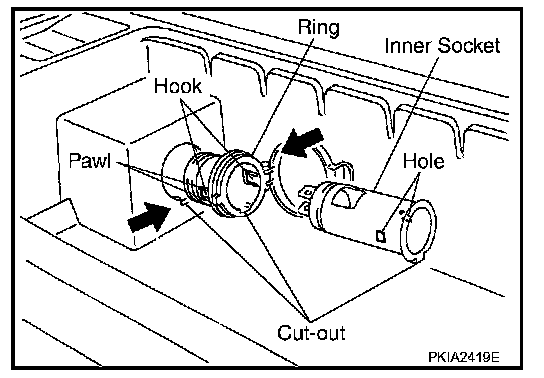

Removal and Installation of Console Power SocketREMOVAL
1. Remove the console box assembly. Refer to "INSTRUMENT PANEL ASSEMBLY".
2. Disconnect power socket connector.
3. Remove inner socket from the ring, while pressing the hook on the ring out from square hole.
4. Remove ring from console box while pressing pawls.
INSTALLATION
Installation is the reverse order of removal.
