Camshaft Bearing

Camshaft Bearing Cap

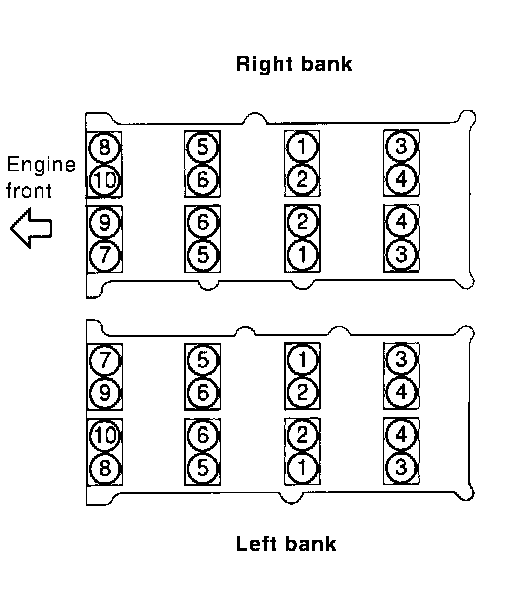

Tighten camshaft bracket bolts in the following steps, in numerical order as shown in the figure.
Tighten No. 7 to 10 in numerical order as shown.
Torque 1.96 Nm (0.2 kg-m, 17 inch lbs.)
Tighten No. 1 to 6 in numerical order as shown.
Torque 1.96 Nm (0.2 kg-m, 17 inch lbs.)
Tighten No. 1 to 10 in numerical order as shown.
Torque 5.88 Nm (0.6 kg-m, 52 inch lbs.)
Tighten No. 1 to 6 in numerical order as shown.
Torque 9.02 - 11.8 Nm (0.92 - 1.20 kg-m, 80 - 104 inch lbs.)
Tighten No. 7 to 10 in numerical order as shown.
Torque 8.3 - 10.3 Nm (0.85 - 1.0 kg-m, 74 - 91 inch lbs.)

CAUTION: After tightening mounting bolts of camshaft brackets (No. 1), be sure to wipe off excessive liquid gasket from the parts list.
Mating surface of rocker cover
Mating surface of rear timing chain case
