A/T - Shudder at 40 MPH

Classification:
AT07-003

Reference:
ITB07-030

Date:
August 16, 2007

2006-2007 G35; SHUDDER AT 40 MPH

APPLIED VEHICLES:
2006 G35 Sedan (V35) 2WD only

2006-2007 G35 Coupe (CV35)

APPLIED VINs:
2006 G35 Sedan and Coupe, all VINs
2007 G35 Coupe built before JNKCV54E(*)7M 910237

APPLIED DATE:
Built before May 25, 2007

IF YOU CONFIRM

The vehicle has a shudder when the transmission is at operating temperature and the torque converter is:

^ Engaging lock-up in 5th gear (light acceleration at 40 mph)

^ Releasing the lock-up in 5th gear (coasting at about 40 mph)

NOTE: CONSULT-II (2006 models) or CONSULT-III (2007 models) can be used to confirm transmission gear position and lock-up condition.

ACTION
Replace the transmission valve body (control valve assembly).

^ For replacement information refer to the Service Manual > Transaxle and Transmission (TM) > 5AT > On Vehicle Repair > Control Valve Assembly.

^ Use the new control valve assembly listed in the Parts Information table.

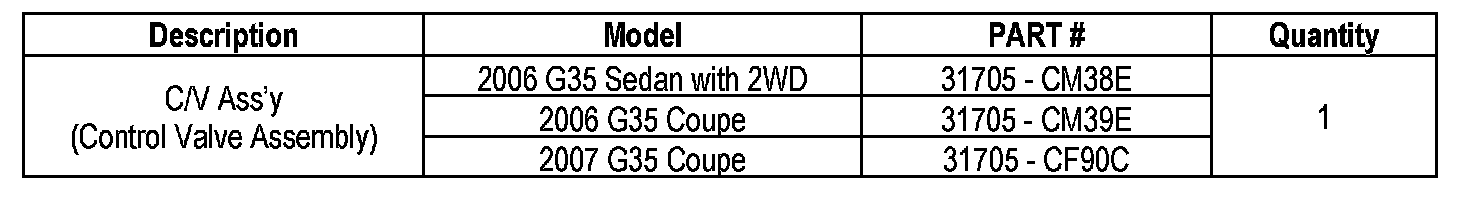

PARTS INFORMATION

CLAIMS INFORMATION





Submit a Primary Failed (PP) type line claim using the claims coding shown.
