Interior - Tear in Driver's Seat Cushion Trim

Classification:
BT07-004

Reference:
ITB07-006

Date:
February 20, 2007

2005-2006 G35 COUPE; TEAR IN DRIVER'S SEAT CUSHION TRIM

APPLIED VEHICLE:
2005 -2006 G35 Coupe (CV35)

APPLIED VIN:
Built before JNKCV54E(*)7M 901695

APPLIED DATE:
Built before August 28, 2006

IF YOU CONFIRM

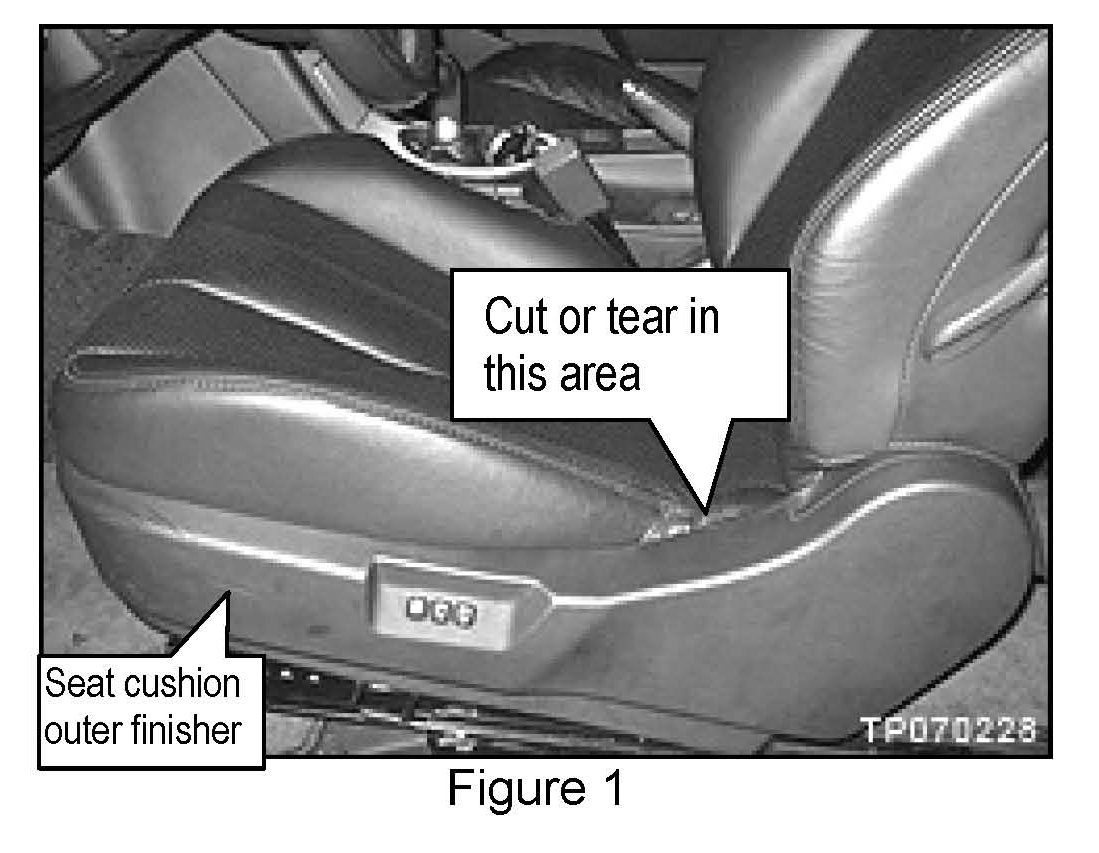

There is a cut or tear in the driver's seat cushion trim in the area shown in Figure 1.

ACTION

Replace the seat cushion trim. Refer to section SE in the Service Manual for replacement information.

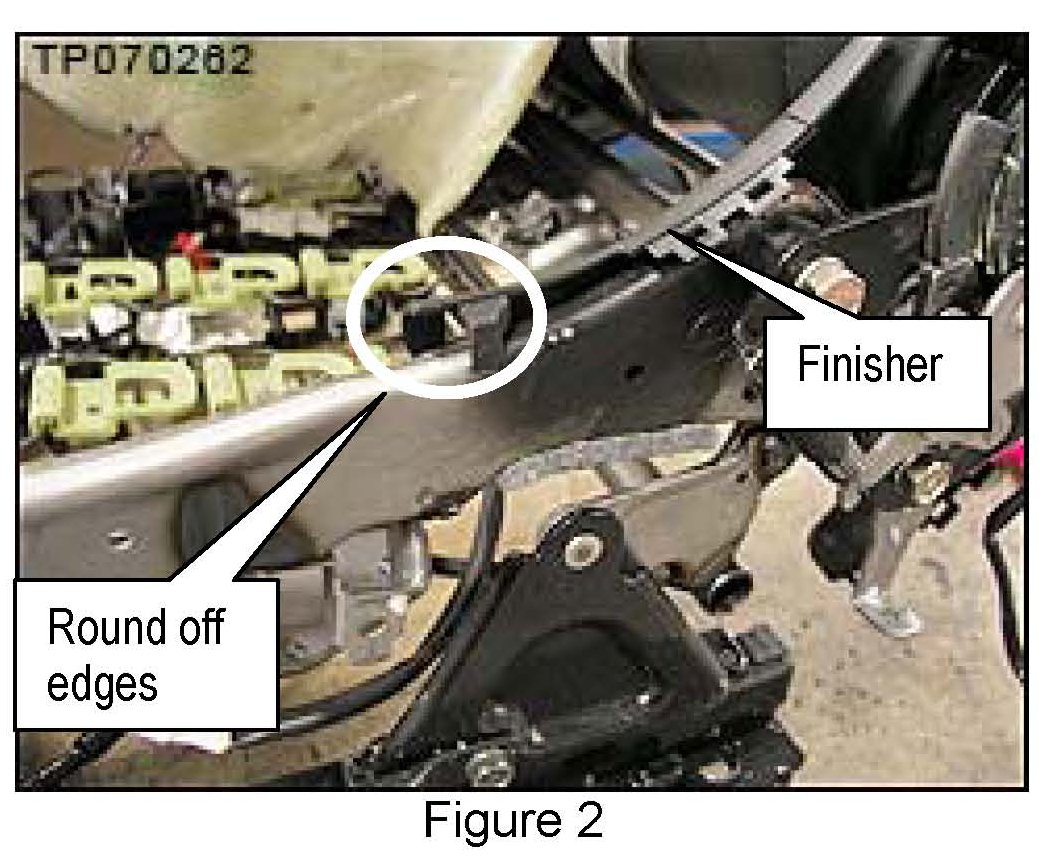

^ While the seat cushion trim is removed use a file (or other suitable tool) to "round the front edges of the finisher shown in Figure 2.

The sharp edges on the finisher may have caused the trim damage.





NOTE:

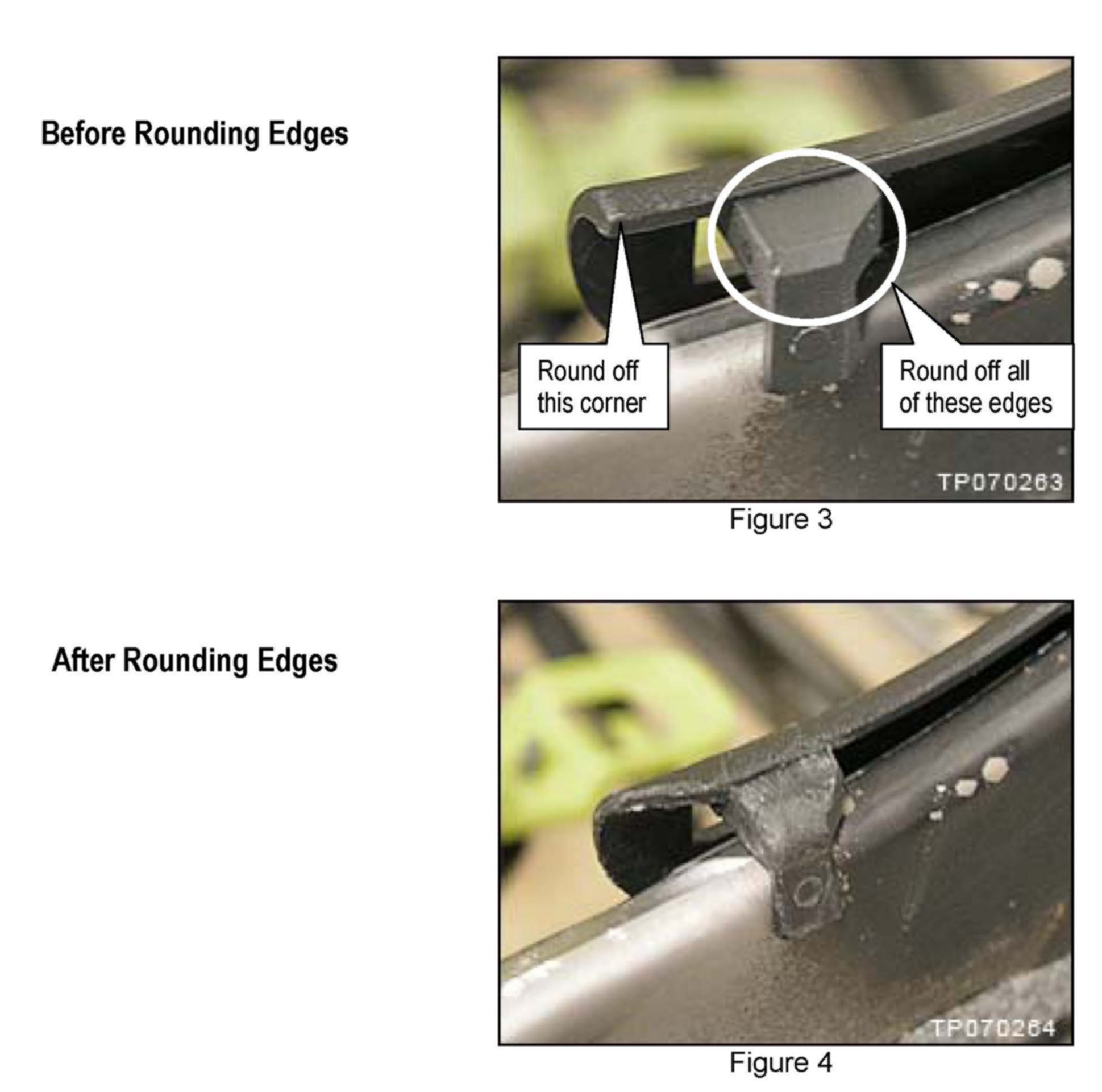

See the before and "after" photos.

^ Use 2 new clips when reinstalling the seat cushion outer finisher.

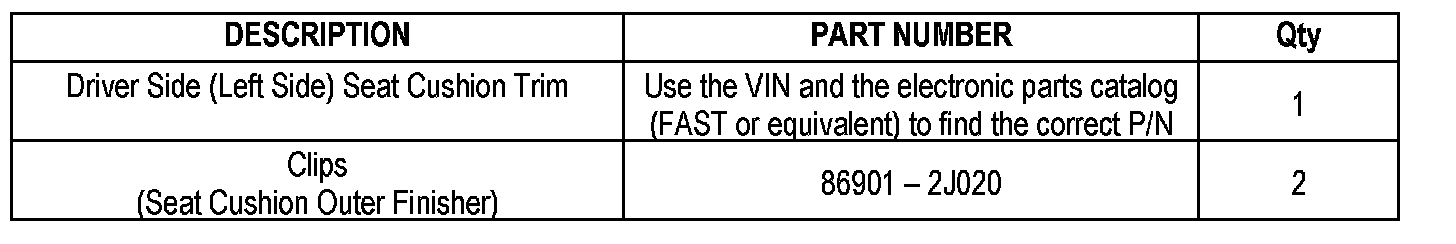

PARTS INFORMATION

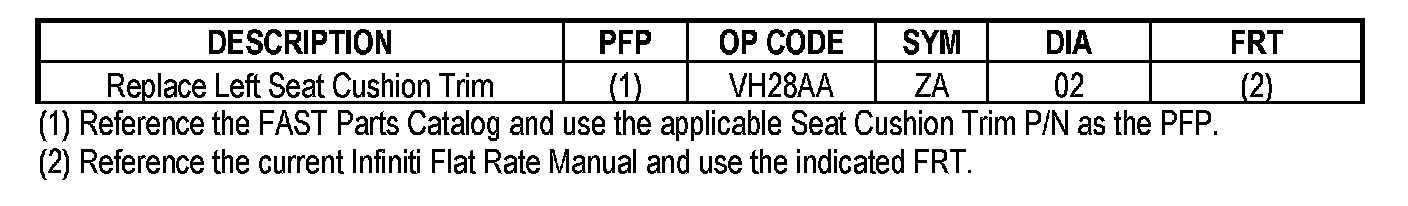

CLAIMS INFORMATION





Submit a Primary Part (PP) type line claim using the claims coding shown.
