Air Breather Hose

AIR BREATHER HOSE

Removal and Installation

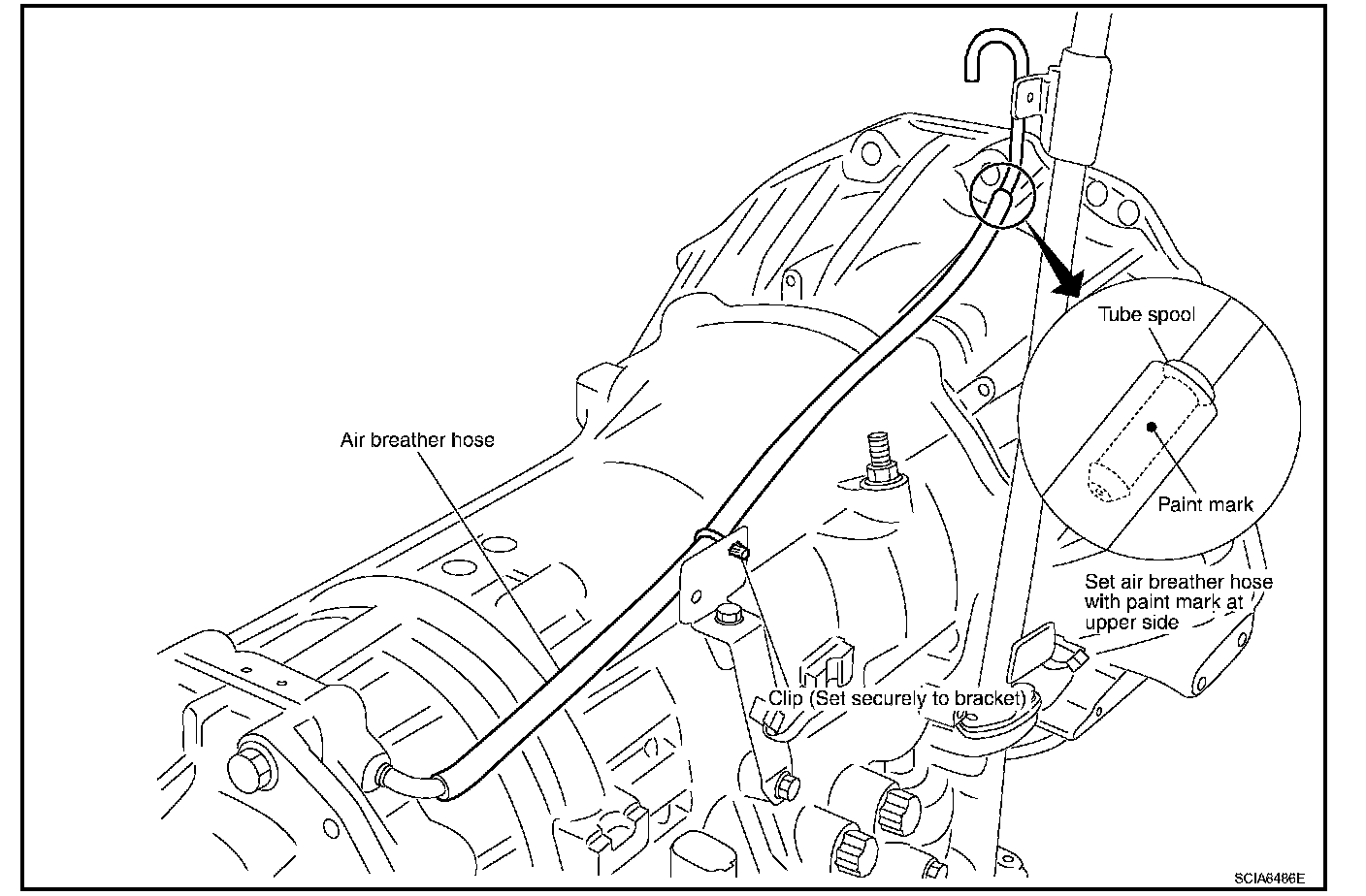

Refer to the figure for air breather hose removal and installation procedure.





CAUTION:
^ When installing an air breather hose, be careful not to be crushed or blocked by folding or bending the hose.
^ When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the tube bend R portion.
^ When inserting a hose to the air breather tube, be sure to insert it fully until its end reaches the tube spool portion.
