Changing Differential Gear Oil

Image Symbols:

Changing Differential Gear Oil
DRAINING
1. Stop engine.

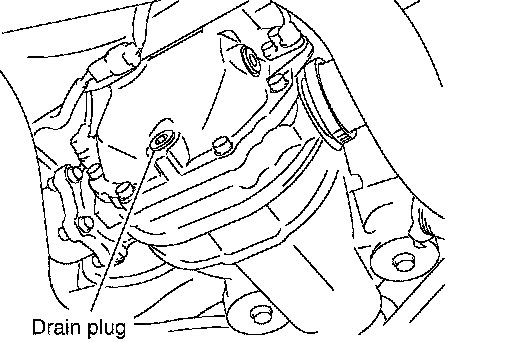

2. Remove drain plug and drain gear oil.
3. Set a gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to RFD-19, "COMPONENTS" (R200 2-pinion) or RFD-39, "COMPONENTS" (R200V LSD).

CAUTION: Do not reuse gasket.

FILLING

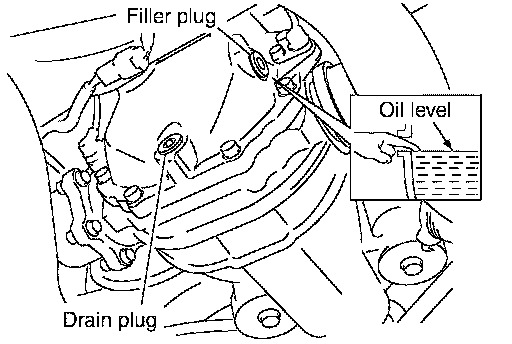

1. Remove filler plug. Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.

Oil capacity: Approximately 1.4L (3 US pint, 2.5 Imp pint)

2. After refilling oil, check oil level. Set a gasket to filler plug, then install it to final drive assembly. Refer to RFD-19, "COMPONENTS" (R200 2-pinion) or RFD-39, "COMPONENTS" (R200V LSD).

CAUTION: Do not reuse gasket.
