Windshield Washer Reservoir: Service and Repair
Removal and Installation of Washer TankREMOVAL

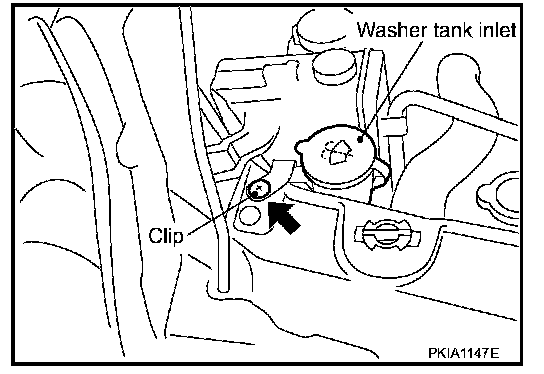

1. Pull out washer tank inlet.
2. Remove fender protector in the right side.
3. Remove right half of front bumper fascia.
4. Remove washer pump connector.

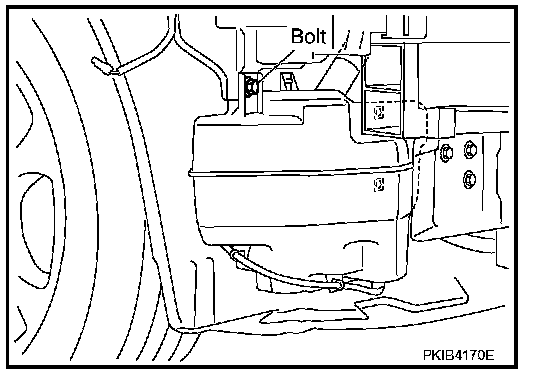

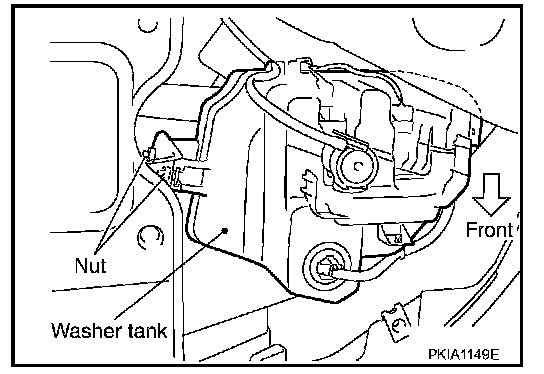

5. Remove washer tank installation bolt and nuts.
6. Remove washer tube, and remove washer tank from the vehicle.
INSTALLATION
Installation is the reverse order of removal.
CAUTION: After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.
Washer tank installation bolt and nuts torque : 5.7 N.m (0.58 kg-m, 50 in-lb)
