Cellular Phone: Service and Repair

Removal and Installation of TEL Adapter Unit

REMOVAL
1. Remove trunk trim and disconnect TEL adapter unit connectors.
2. Remove rear parcel shelf finisher.

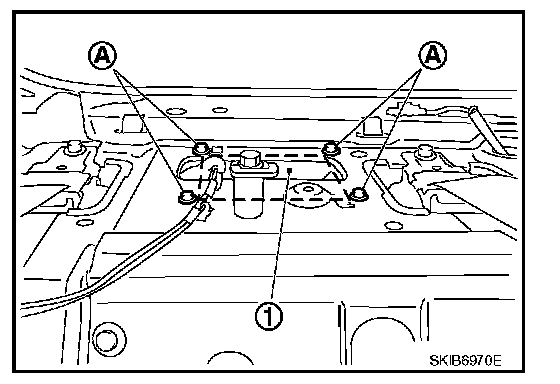

3. Remove bolts (A) 4, and remove satellite radio tuner (1) (With TEL adapter unit) from trunk room side.
4. Remove TEL adapter unit screws 4, and remove bracket.

INSTALLATION
Installation is the reverse order of removal.
