Audio Unit

Removal and Installation of Audio Unit

REMOVAL
1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY".




2. Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.

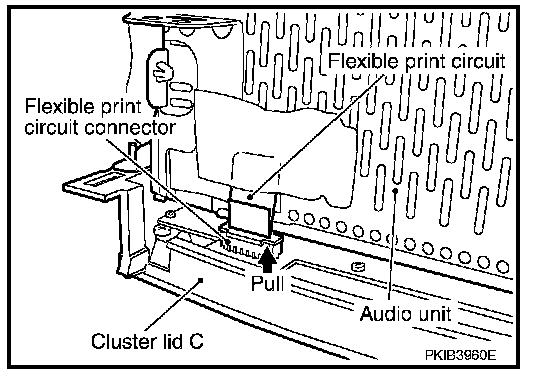

3. Pull off flexible print circuit from connector.

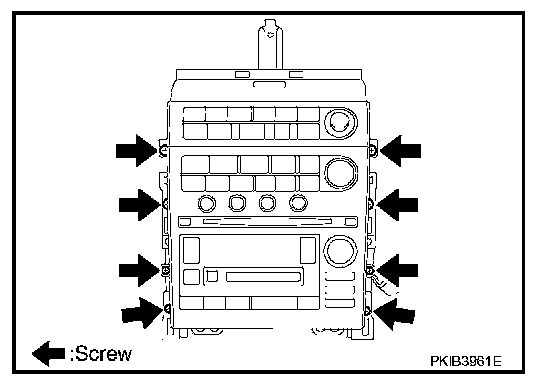

4. Remove screws (8). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.




5. Separate audio unit from display unit assembly (with navigation system).

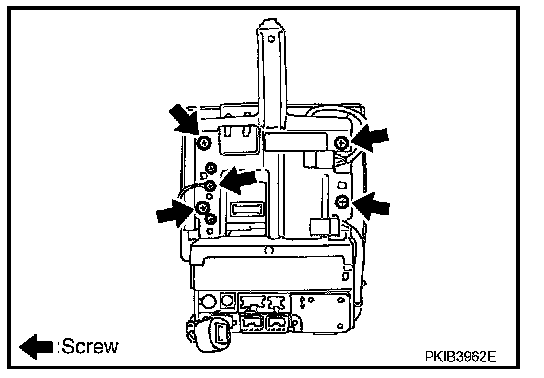

6. Remove 8 screws, and then bracket.

CAUTION: Be careful not to allow foreign material to drop into CD slot.

INSTALLATION
Installation is the reverse order of removal.
