Hood: Service and Repair

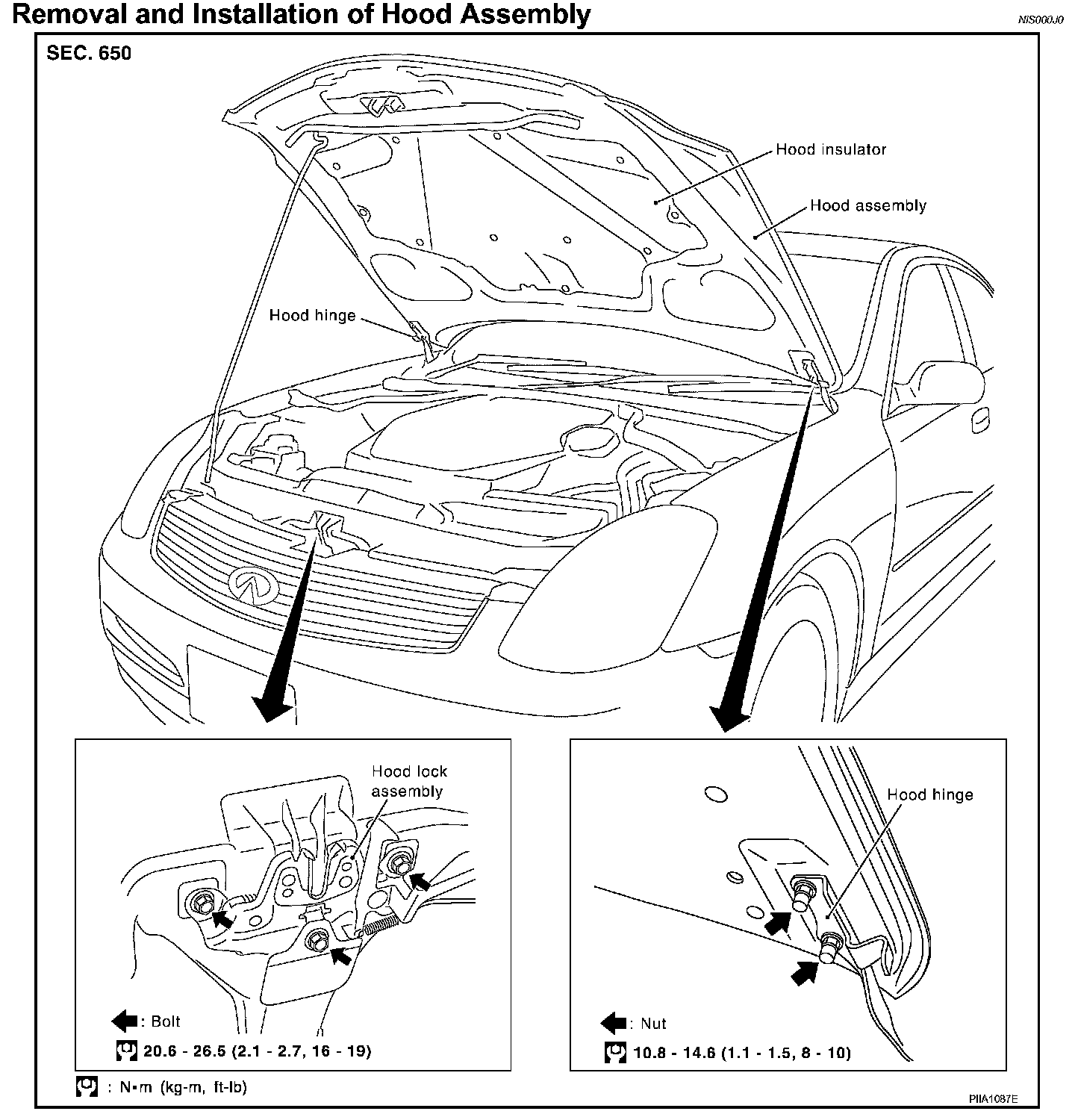

Removal and Installation of Hood Assembly

REMOVAL
Remove the hinge mounting nuts on the hood to remove the hood assembly.

CAUTION: Operate with two workers, because of its heavy weight.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Before installing hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle body.
- After installing, perform hood fitting adjustment. Refer to BL-13, "Fitting Adjustment". Adjustments
