Inside Mirror

INSIDE MIRROR

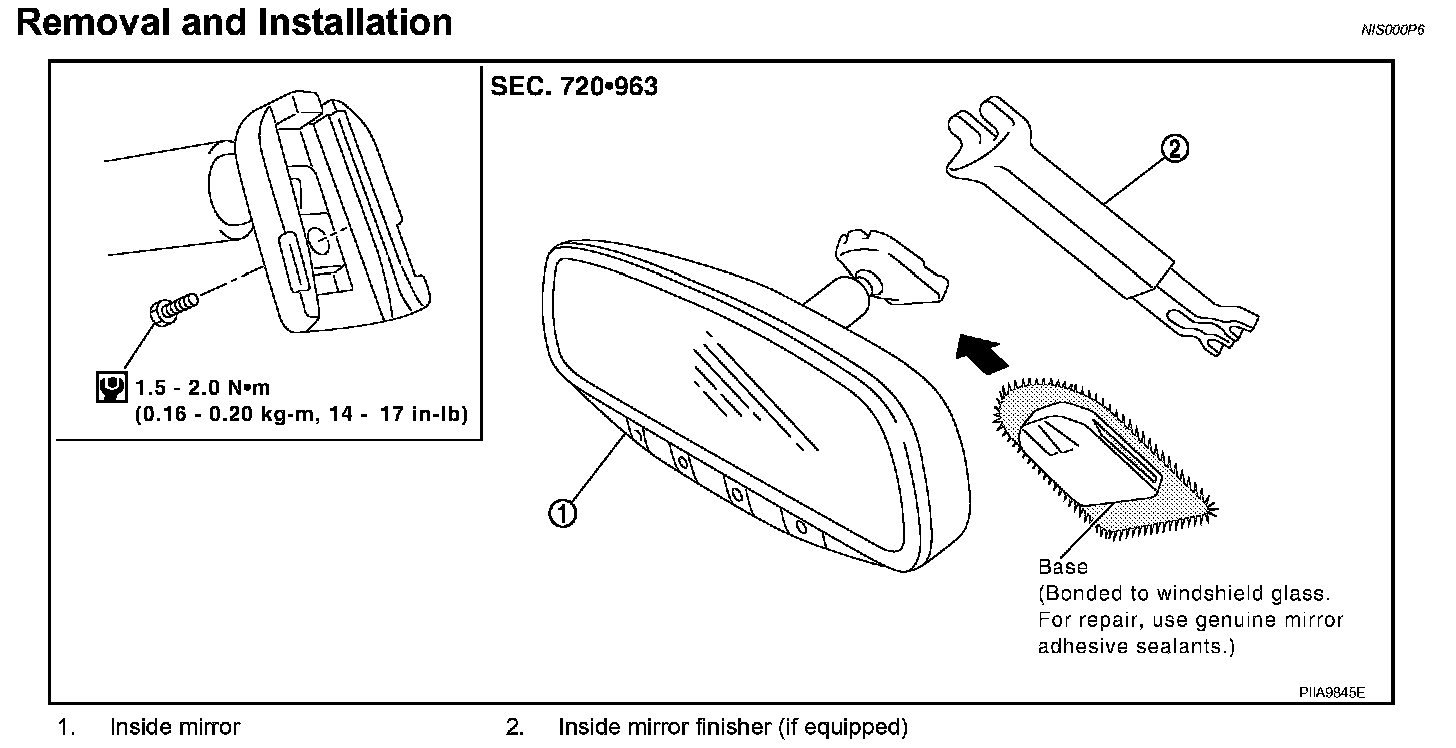

Removal and Installation

REMOVAL
1. Remove the inside mirror finisher (if equipped).
2. Remove the screw of mirror base.
3. Slide the mirror upward to remove.
4. Disconnect the connector (if equipped).

INSTALLATION
Install in the reverse order of removal.

CAUTION: Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS".
