BL-D/LOCK

BL-D/LOCK-01:

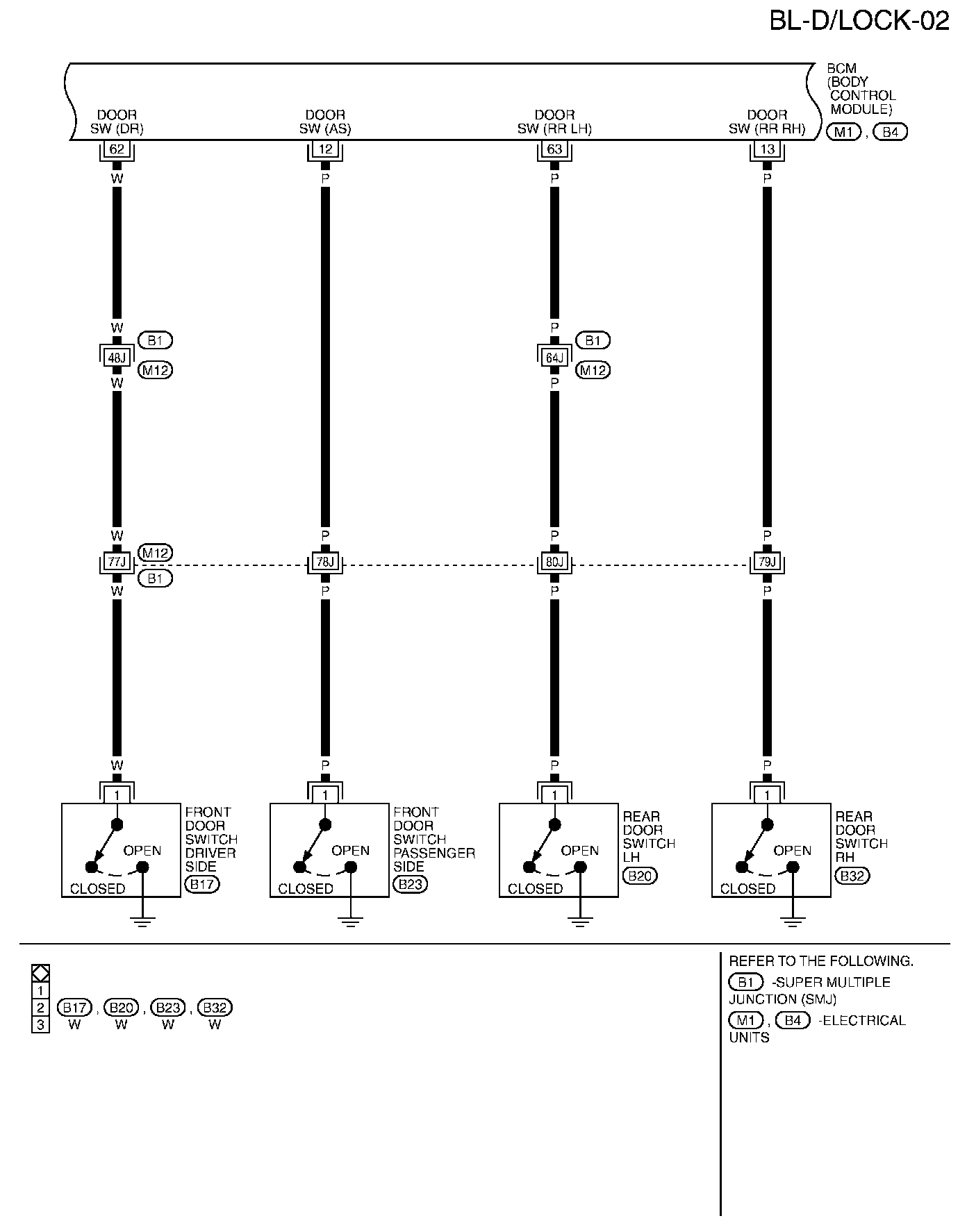

BL-D/LOCK-02:

BL-D/LOCK-03:

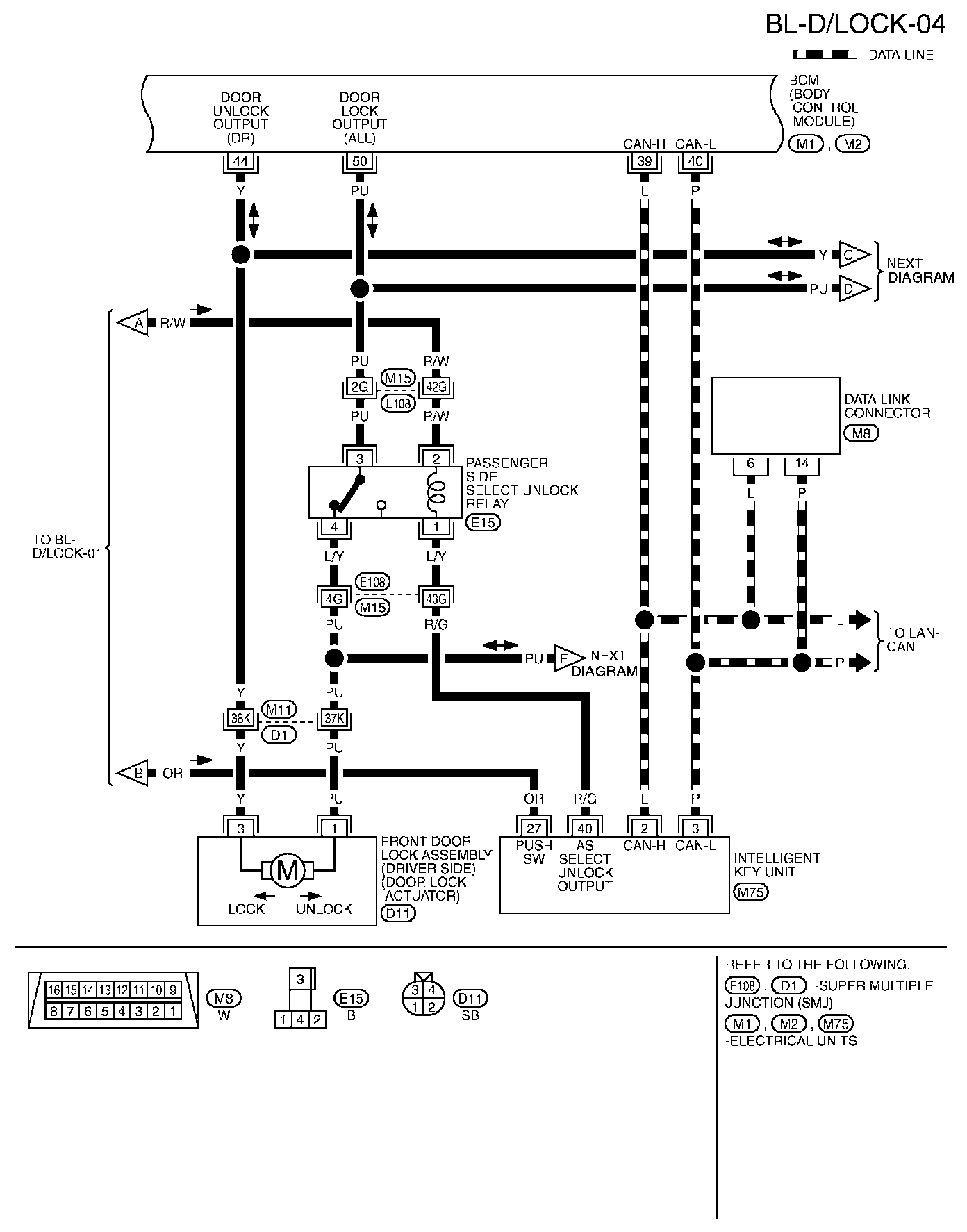

BL-D/LOCK-04:

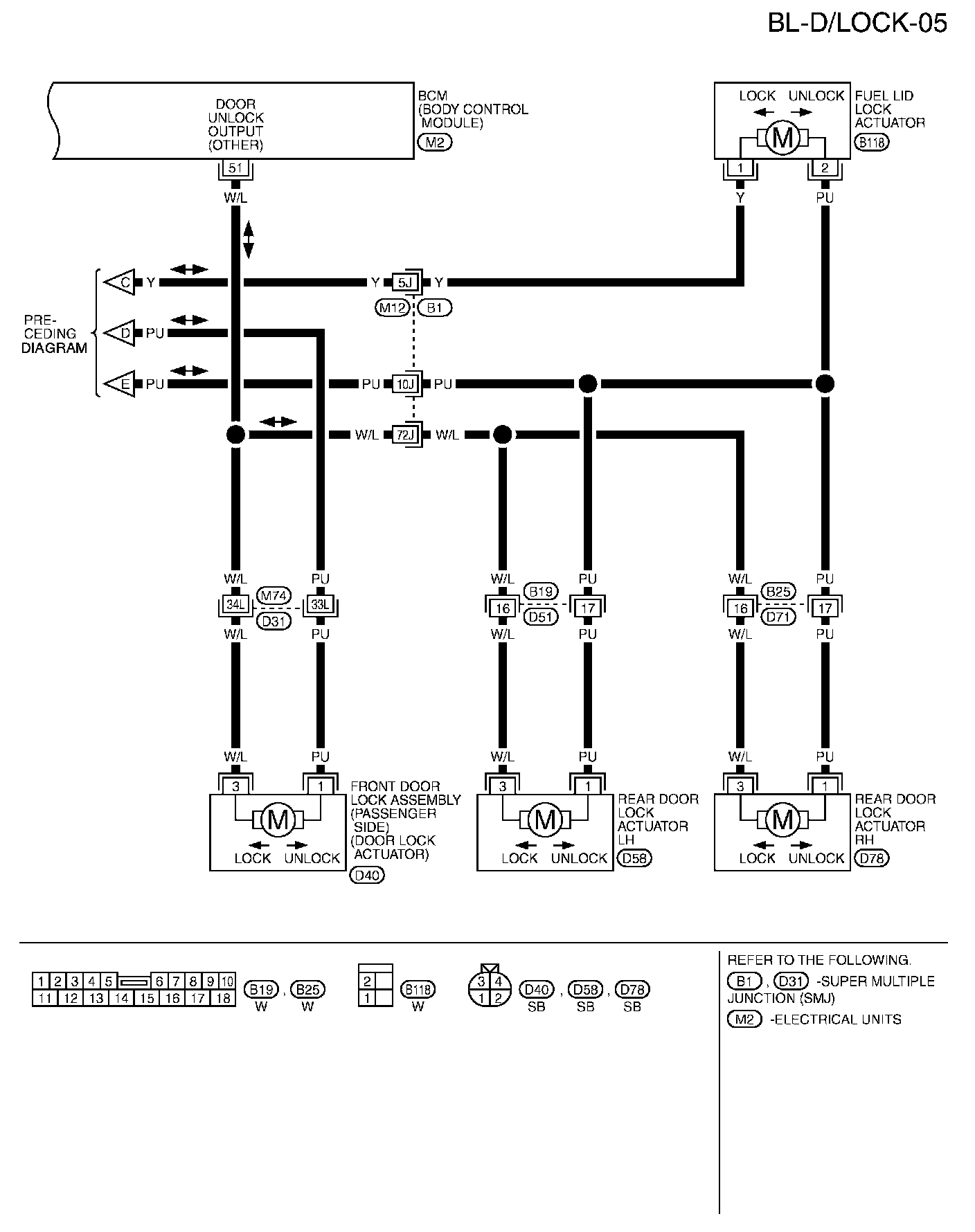

BL-D/LOCK-05:

With Intelligent Key

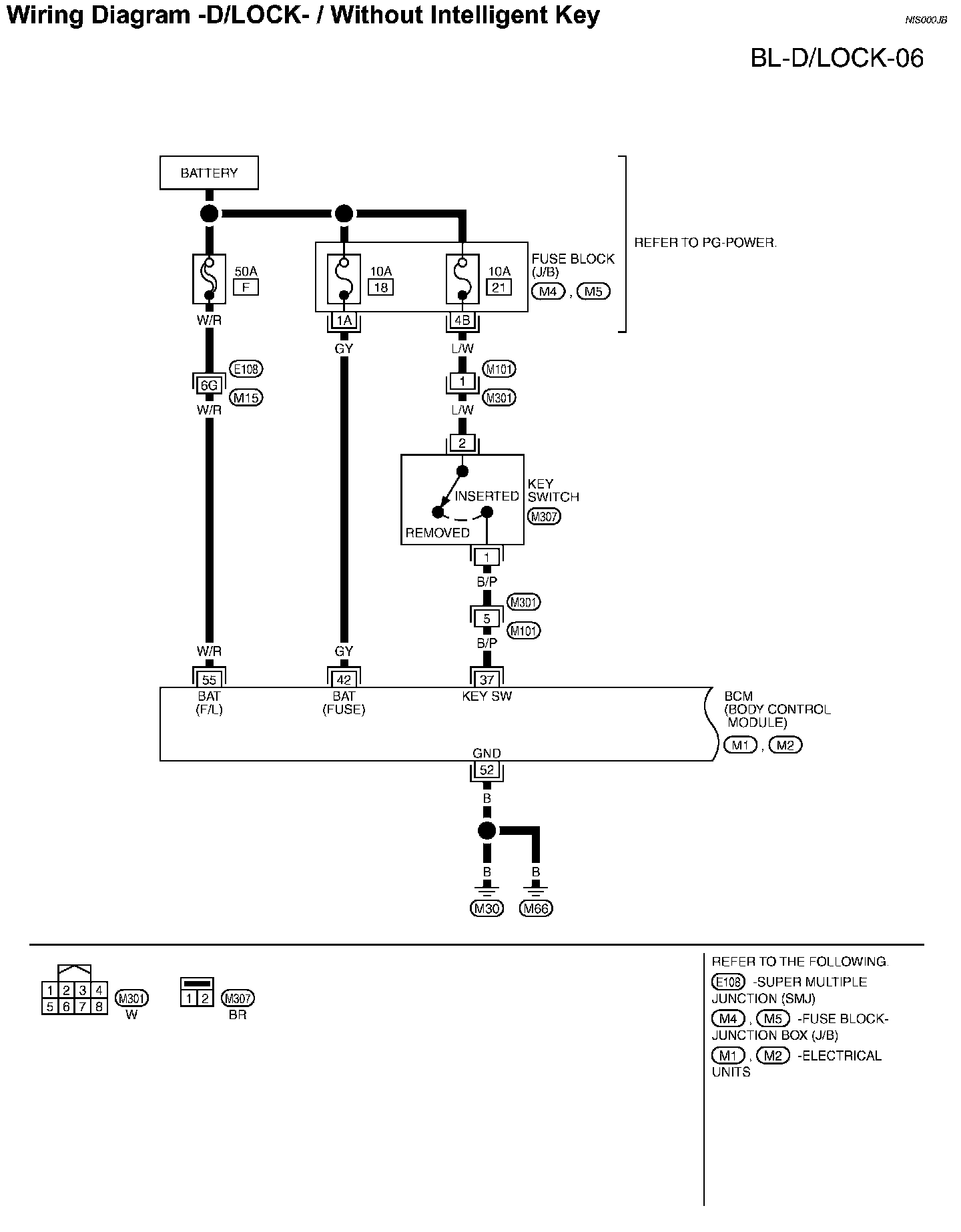

BL-D/LOCK-06:

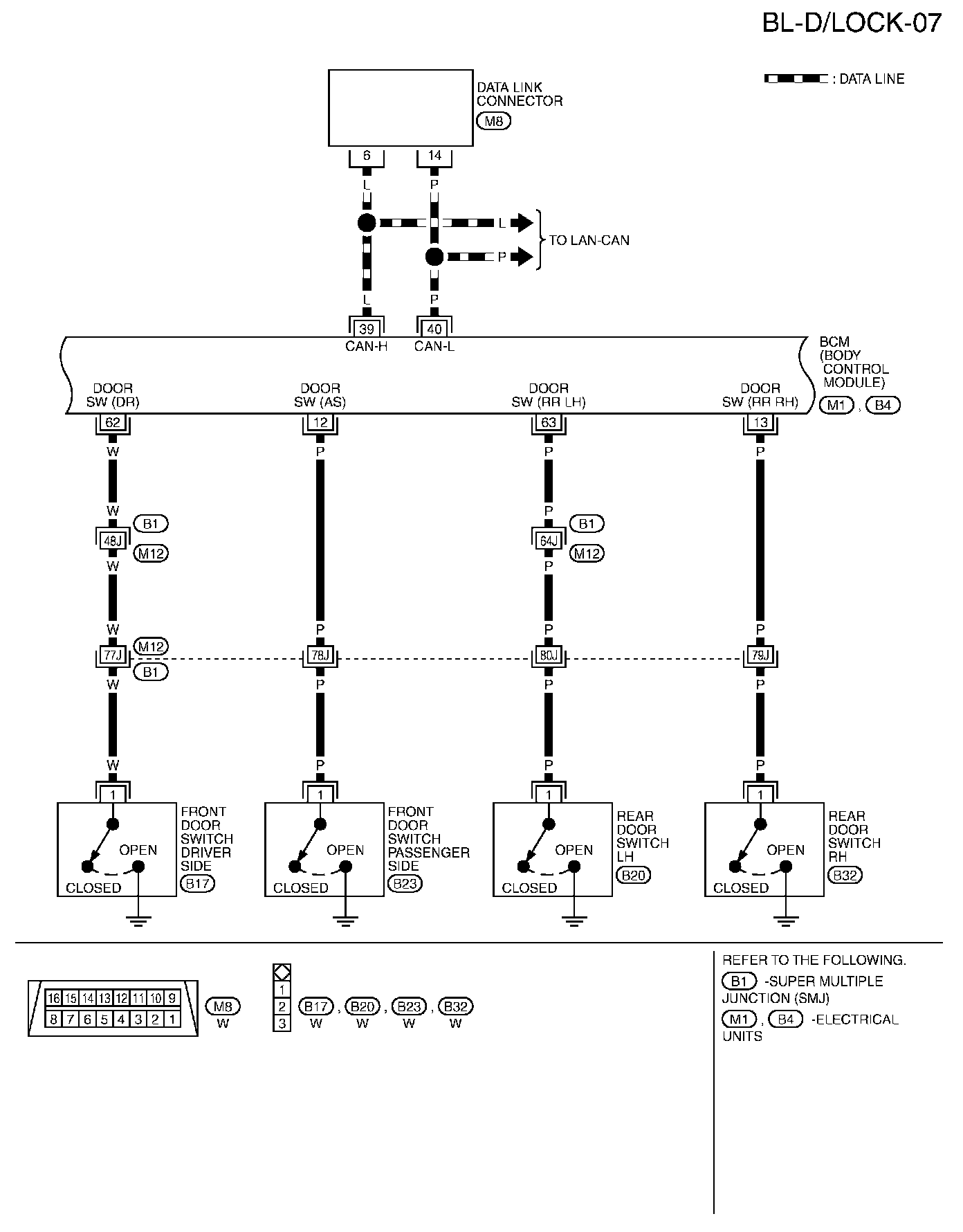

BL-D/LOCK-07:

BL-D/LOCK-08:

BL-D/LOCK-09:

Without Intelligent Key


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
