Trunk / Liftgate
BL-TLID-01:
With Intelligent Key

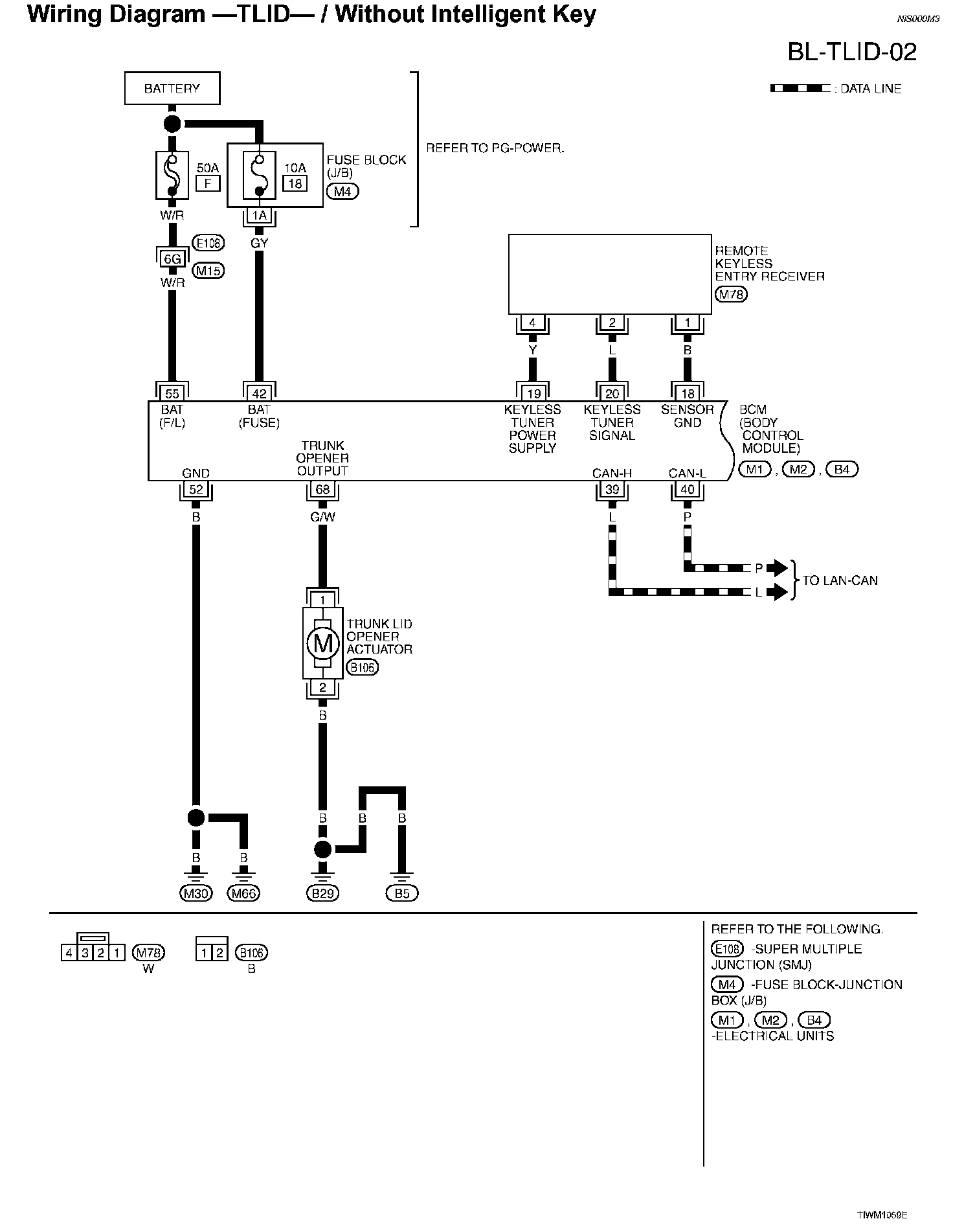

BL-TLID-02:

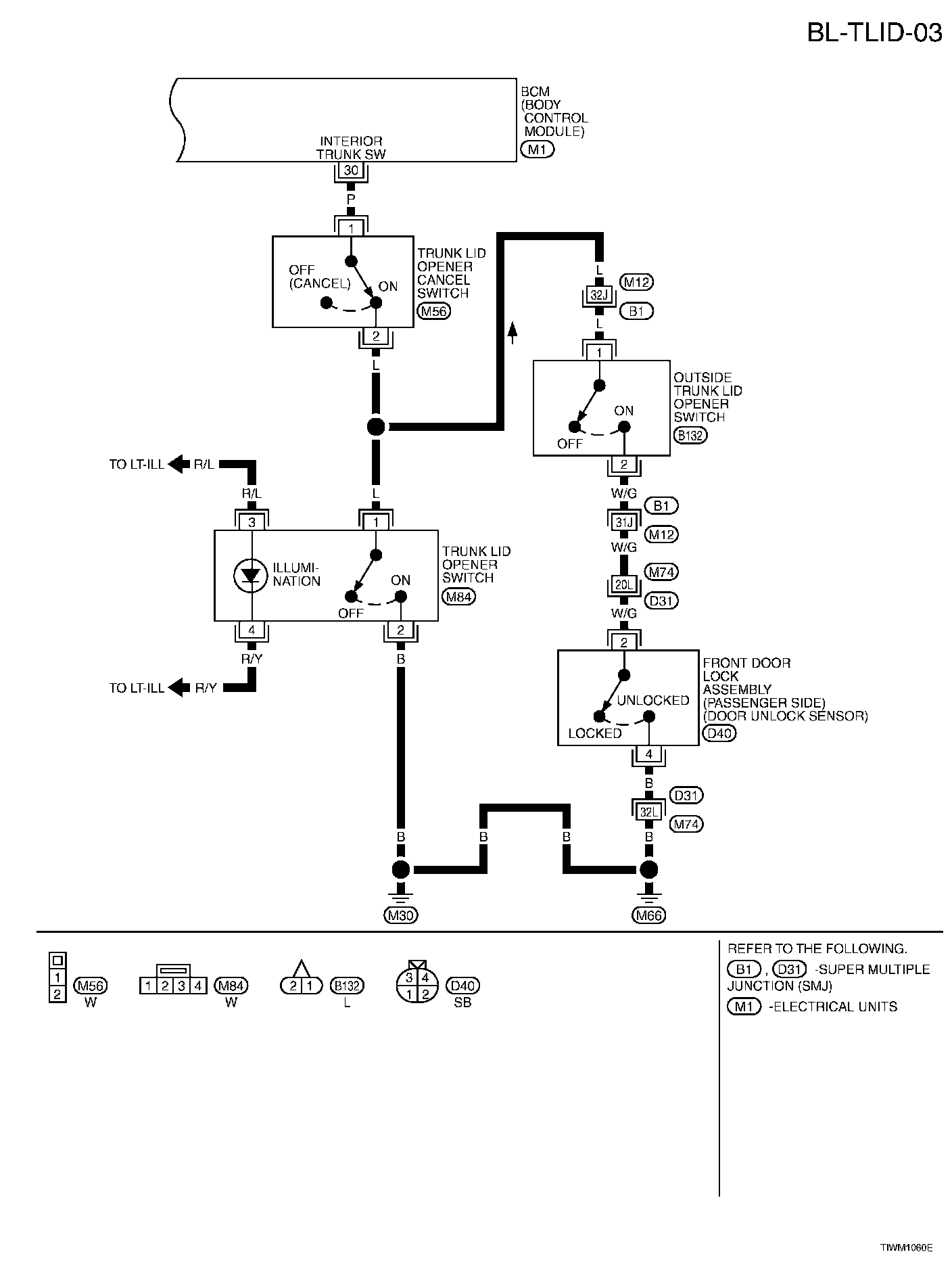

BL-TLID-03:
Without Intelligent Key
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
With Intelligent Key
Without Intelligent Key
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
