Engine Lubrication: Diagrams

LUBRICATION SYSTEM

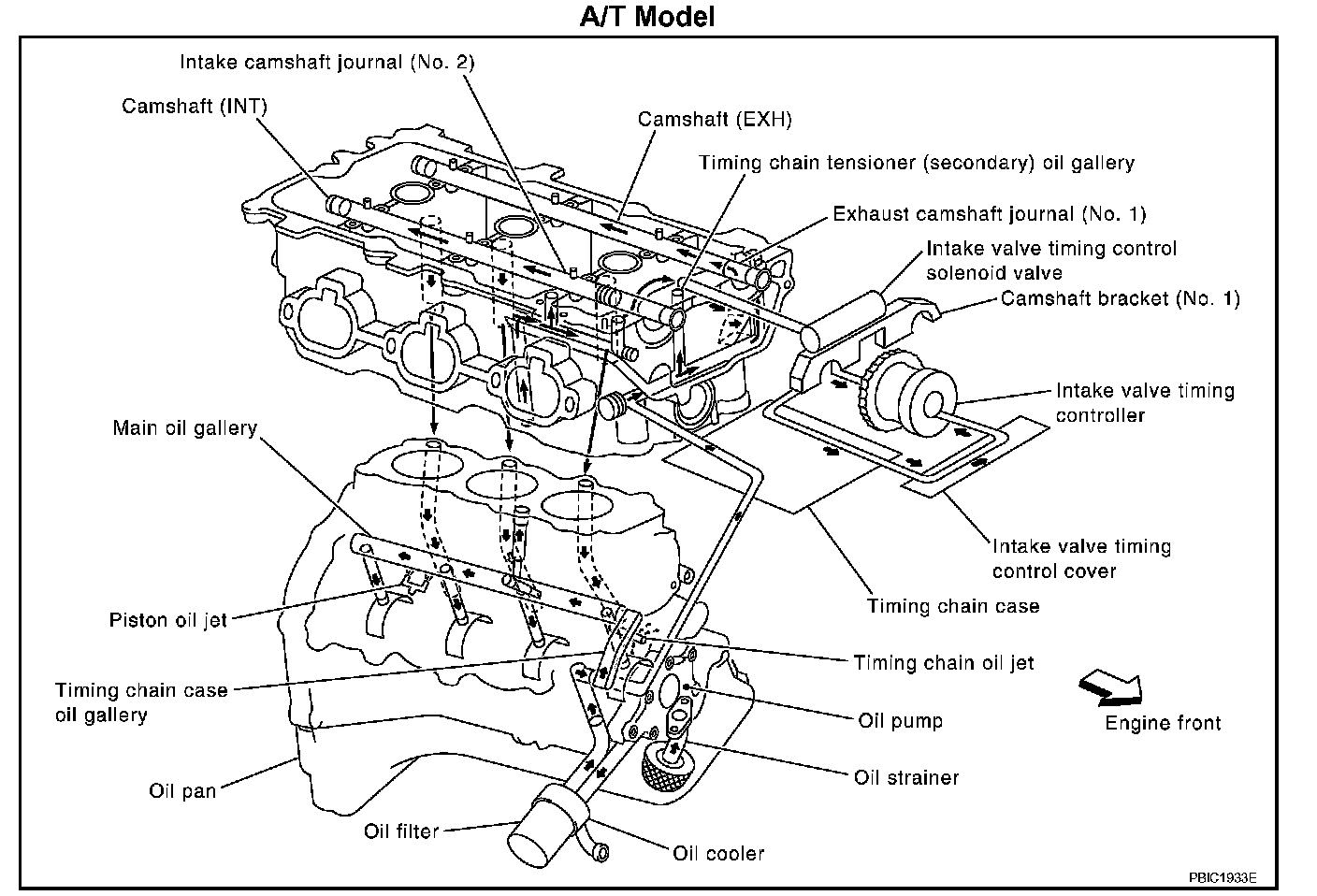

Lubrication Circuit - A/T Model:

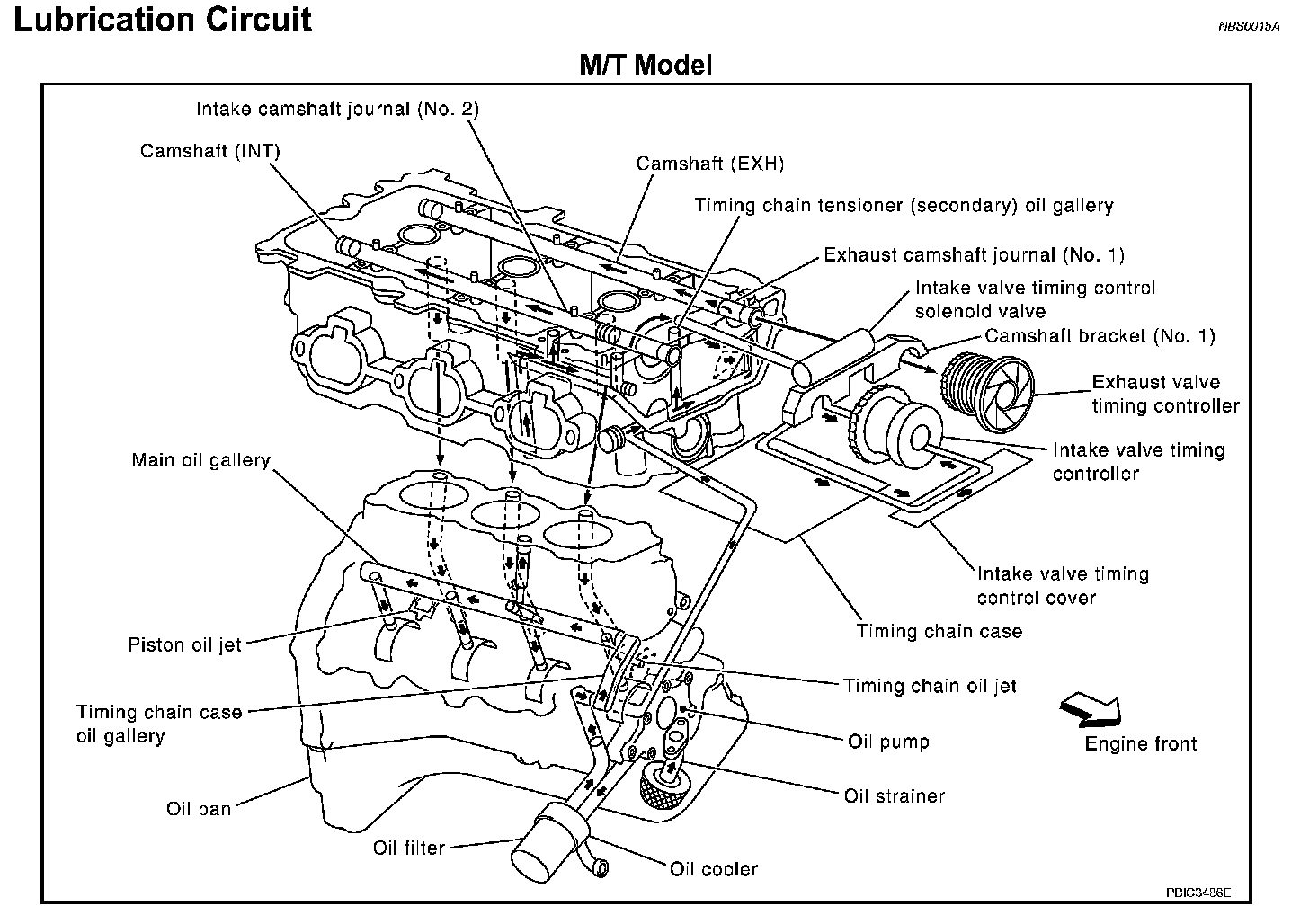

Lubrication Circuit - M/T Model:

Lubrication Circuit

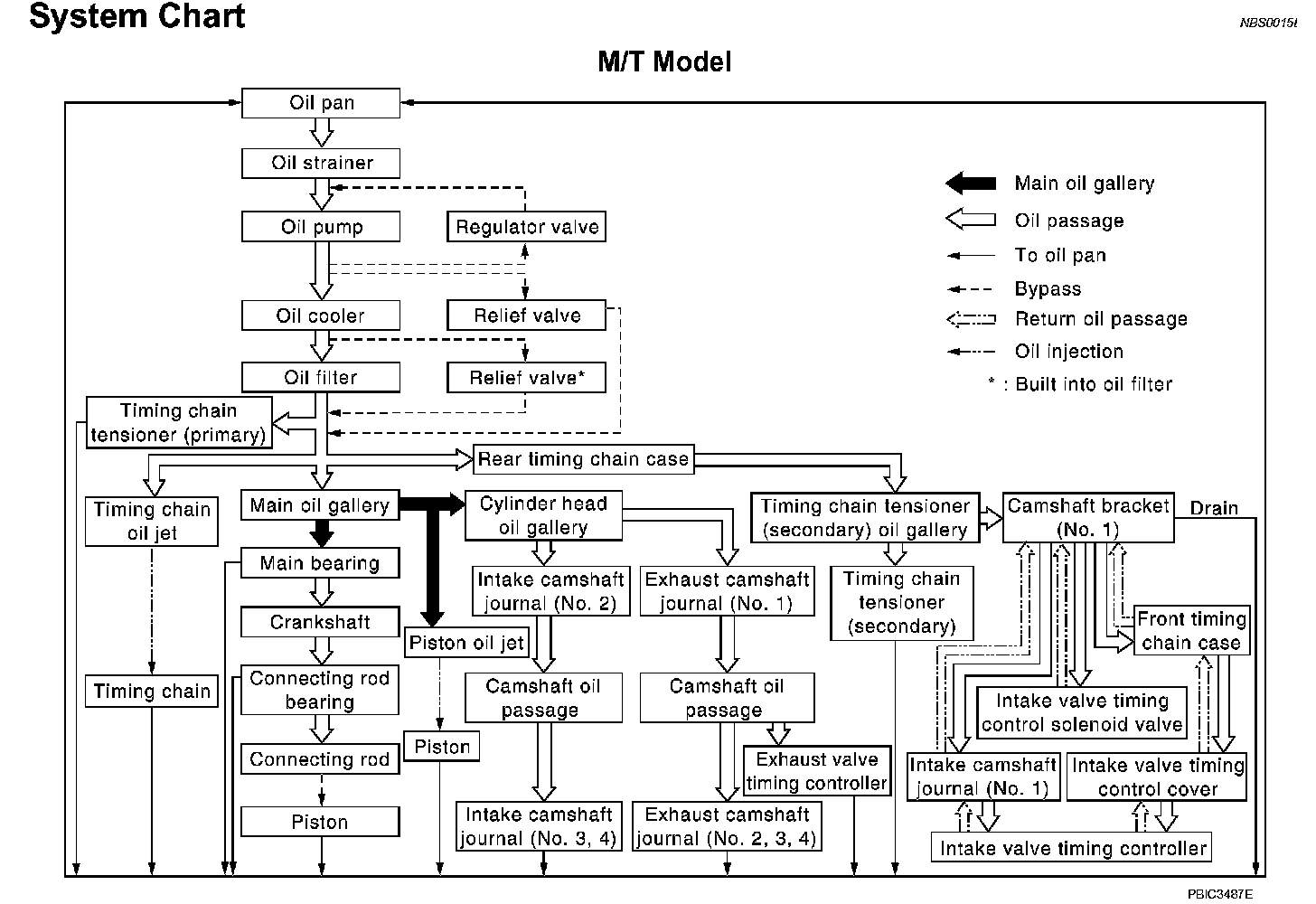

System Chart - M/T Model:

System Chart - A/T Model:

System Chart
