Compressor HVAC: Service and Repair

Removal and Installation of Compressor

2WD Models
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

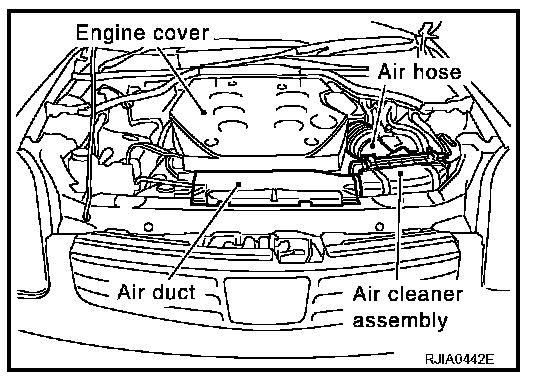

2. Remove engine cover with power tool. Refer to "INTAKE MANIFOLD COLLECTOR".




3. Remove air duct, air cleaner assembly and air hose. Refer to "AIR CLEANER AND AIR DUCT".
4. Remove engine under cover with power tool.




5. Remove mounting nuts from low-pressure and high-pressure flexible hose.

CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

6. Disconnect compressor (magnet clutch) connector.
7. Remove A/C compressor belt. Refer to "DRIVE BELTS".




8. Disconnect compressor (ECV) connector.
9. Remove mounting bolts from compressor.
10. Remove compressor downward of the vehicle.
