Pinout Values and Diagnostic Parameters

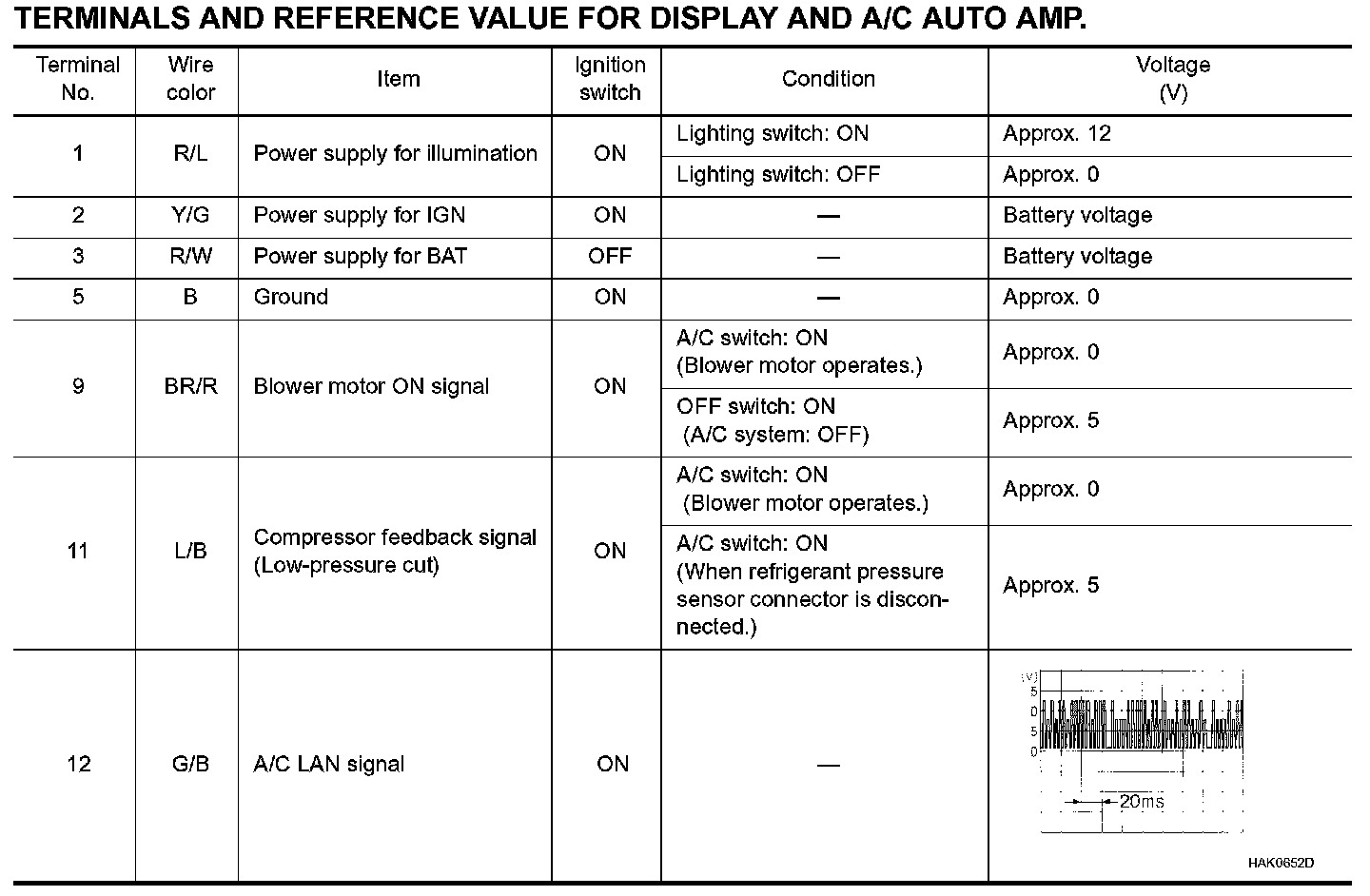

Terminals And Reference Value For Display And A / C Auto Amp. Part 1:

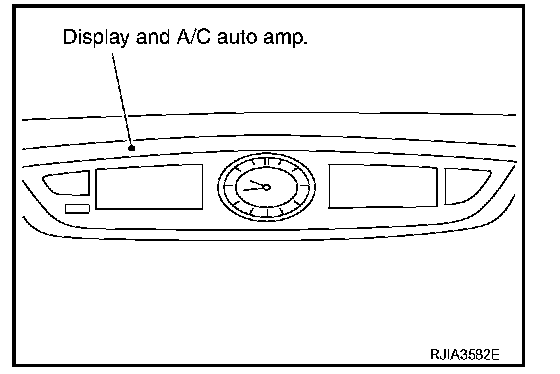

Auto Amp. Terminals and Reference Value
Measure voltage between each terminal and ground by referring terminals and reference value for display and A/C auto amp.

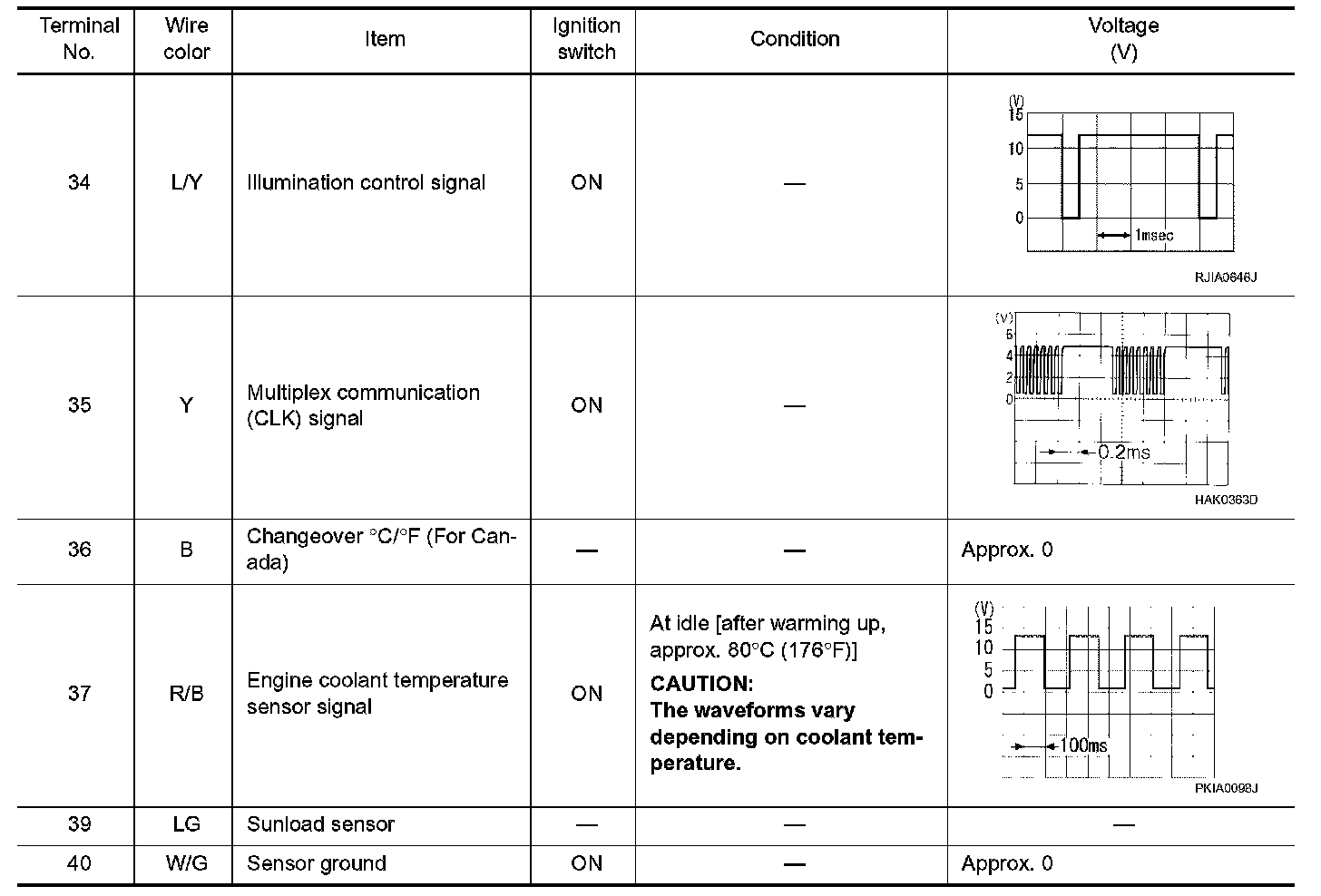

Terminals And Reference Value For Display And A / C Auto Amp. Part 2:

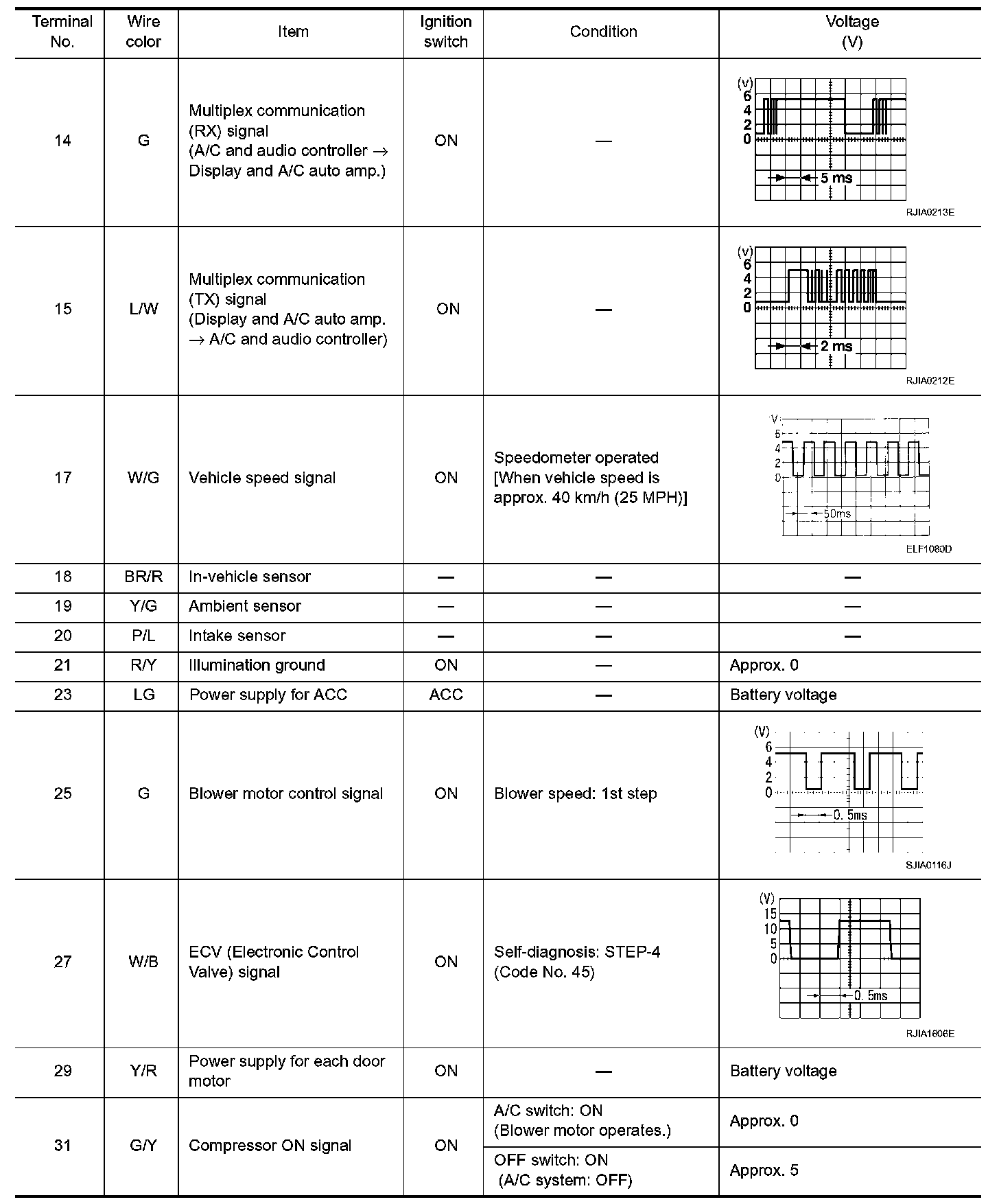

Terminals And Reference Value For Display And A / C Auto Amp. Part 3:

TERMINALS AND REFERENCE VALUE FOR UNIFIED METER AND A/C AMP.
