MAP Lamp

Removal and Installation

MAP LAMP

Removal

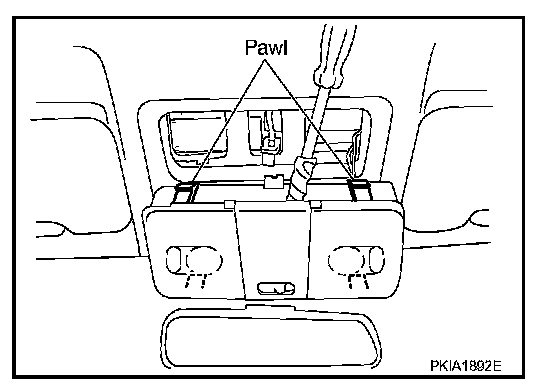

1. Insert a clip driver or a suitable tool and disengage the pawl fittings of the map lamp.
2. Disconnect connector and remove map lamp.

Installation
Installation is the reverse order of removal.
