Removal and Installation
Removal and InstallationREMOVAL
1. Disconnect the battery cable from the negative terminal or remove power fuse.
2. Remove front grille.
3. Remove front undercover and fender protector.

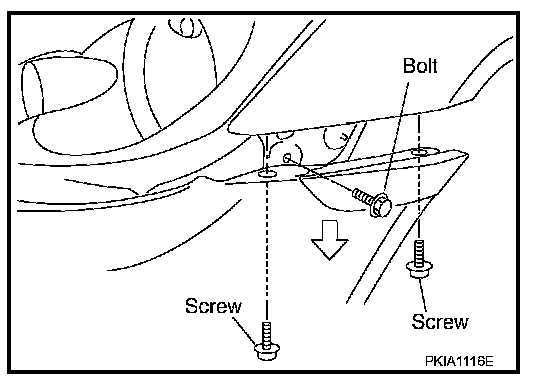

4. Remove mounting clip on top of front bumper and screws on side of front bumper.
5. Pull side of front bumper toward the vehicle front and disengage it from clips on the body.

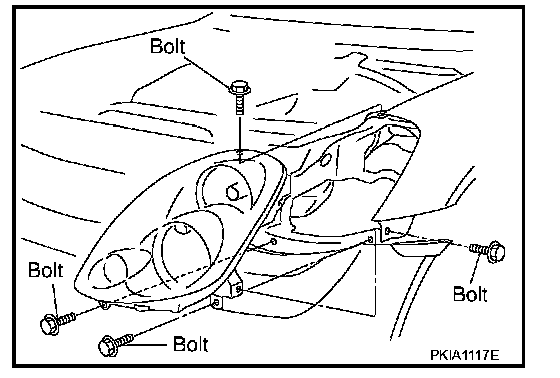

6. Remove headlamp mounting bolts.
7. Pull headlamp toward the vehicle front, disconnect connector, and remove headlamp.
CAUTION: When removing headlamps, put a shop cloth or something similar between headlamps and bumper to protect bumper.
INSTALLATION
Installation is the reverse order of removal.
Headlamp mounting bolt : 5.9 N.m (0.60 kg-m, 52 in-lb)
