Shift Mechanism

Shift Mechanism

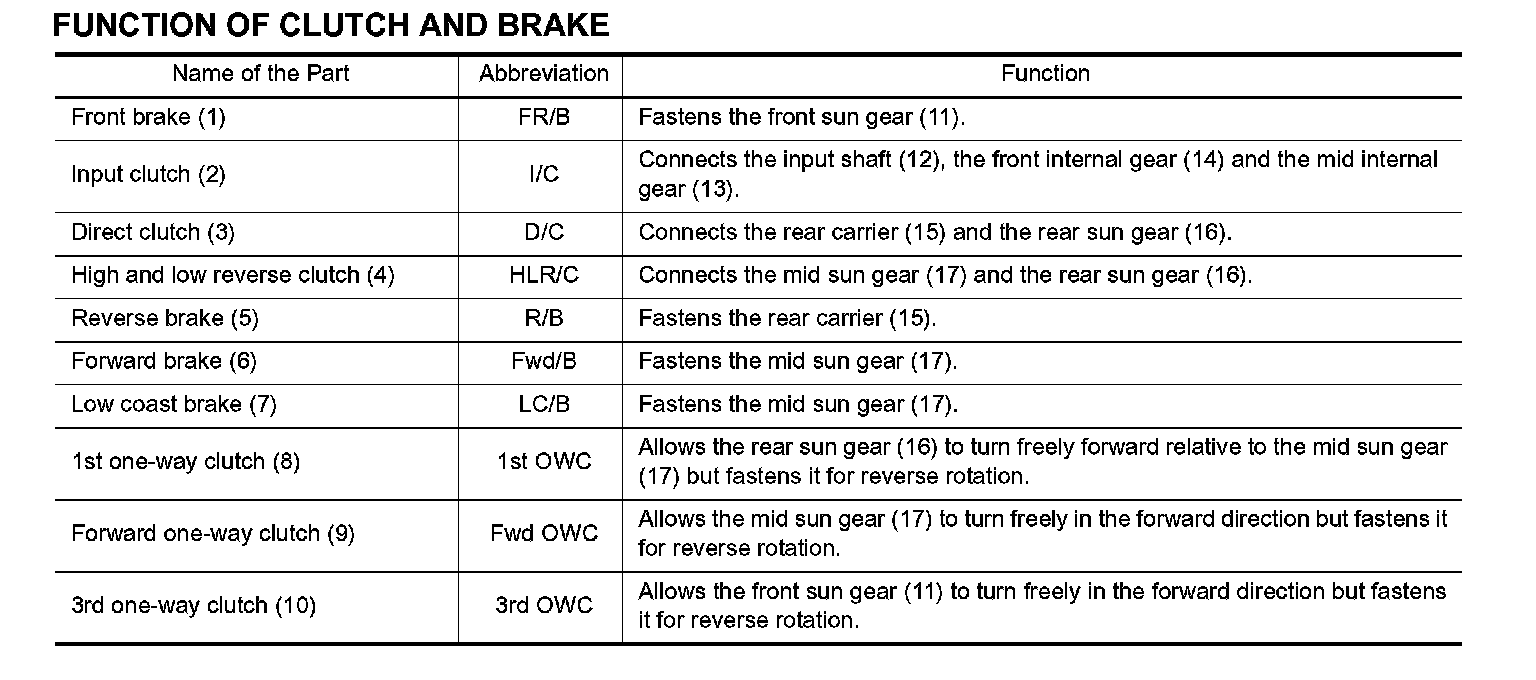

The A/T uses compact triple planetary gear systems to improve power-transmission efficiency, simplify construction and reduce weight.

It also employs an optimum shift control and super wide gear ratios. They improve starting performance and acceleration during medium and high-speed operation.

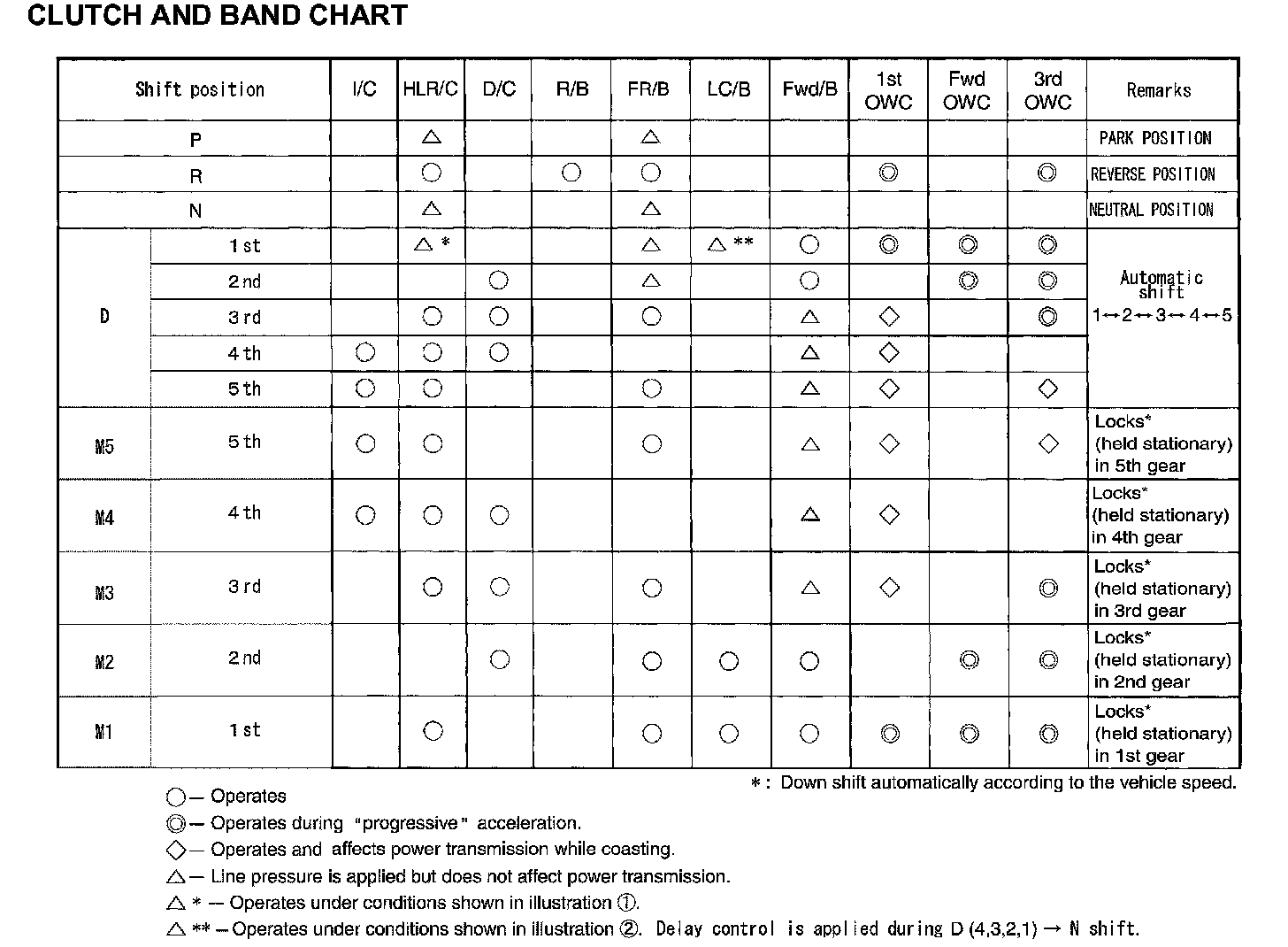

POWER TRANSMISSION
N Position
Since both the forward brake and the reverse brake are released, torque from the input shaft drive is not transmitted to the output shaft.

P Position





^ The same as for the N position, both the forward brake and the reverse brake are released, so torque from the input shaft drive is not transmitted to the output shaft.
^ The parking pawl linked with the selector lever meshes with the parking gear and fastens the output shaft mechanically.

D1 Position





^ The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.
^ The 1st one-way clutch regulates reverse rotation of the rear sun gear.
^ The 3rd one-way clutch regulates reverse rotation of the front sun gear.
^ During deceleration, the mid sun gear turns forward, so the forward one-way clutch idles and the engine brake is not activated.

M1 Position





^ The front brake fastens the front sun gear.
^ The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.
^ High and low reverse clutch connects the rear sun gear and the mid sun gear.
^ The low coast brake fastens the mid sun gear.
^ During deceleration, the low coast brake regulates forward rotation of the mid sun gear and the engine brake functions.

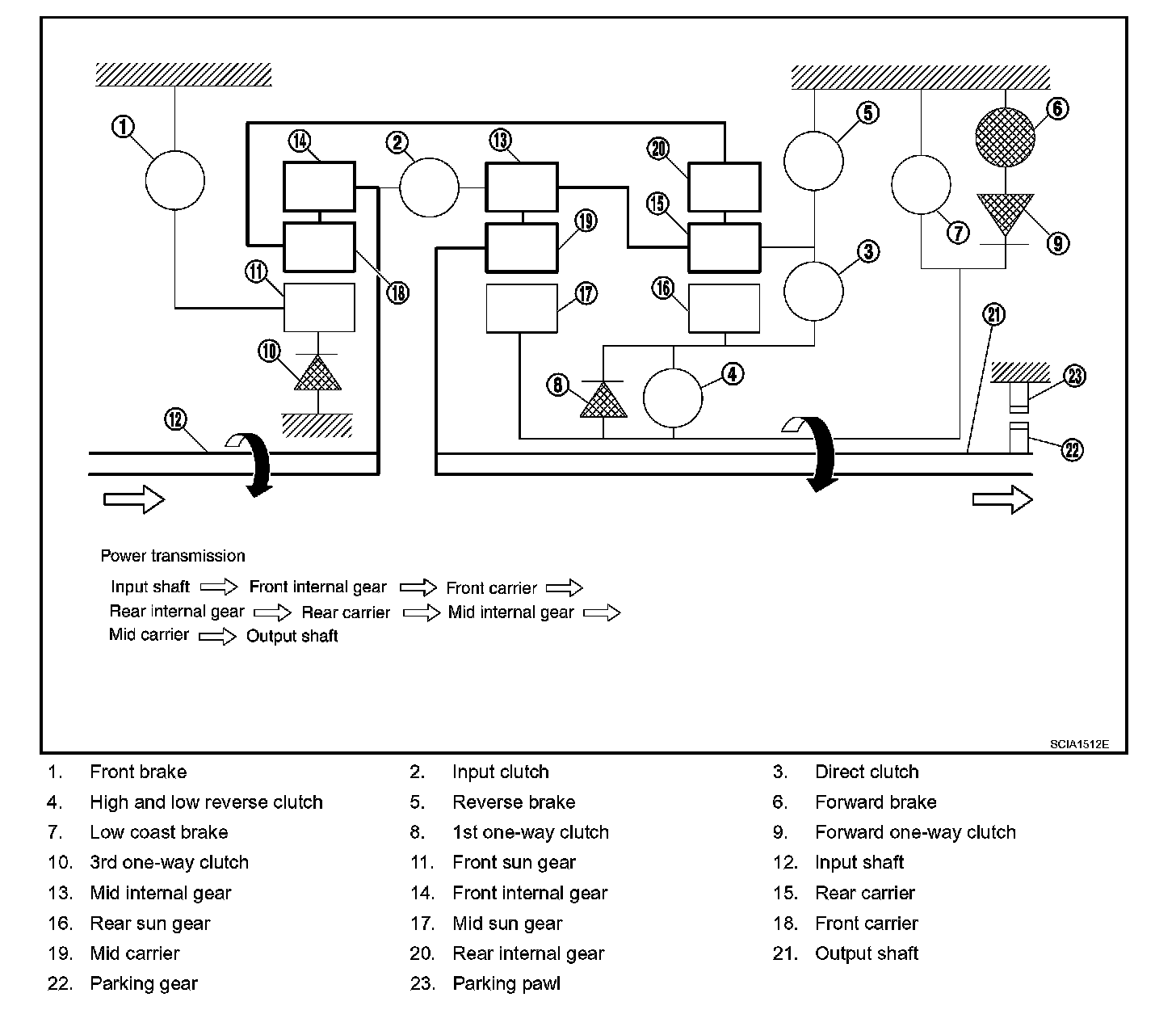

D2 Position





^ The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.
^ The 3rd one-way clutch regulates reverse rotation of the front sun gear.
^ The direct clutch is coupled, and the rear carrier and rear sun gear are connected.
^ During deceleration, the mid sun gear turns forward, so the forward one-way clutch idles and engine brake is not activated.

M2 Position





^ The front brake fastens the front sun gear.
^ The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.
^ The direct clutch is coupled, and the rear carrier and rear sun gear are connected.
^ The low coast brake fastens the mid sun gear.
^ During deceleration, the low coast brake regulates forward rotation of the mid sun gear and the engine brake functions.

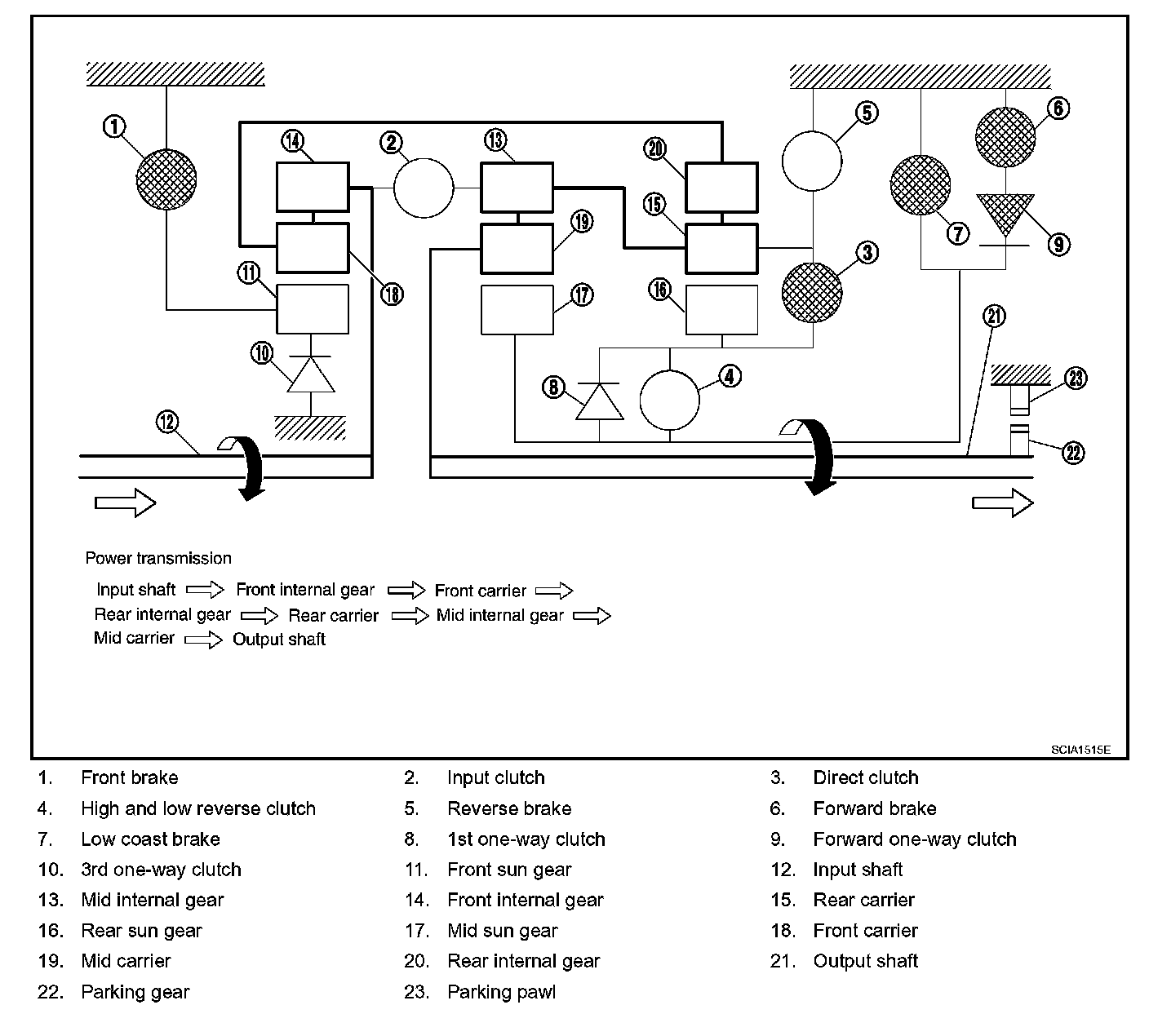

D3 and M3 Positions





^ The front brake fastens the front sun gear.
^ The direct clutch is coupled, and the rear carrier and rear sun gear are connected.
^ The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.

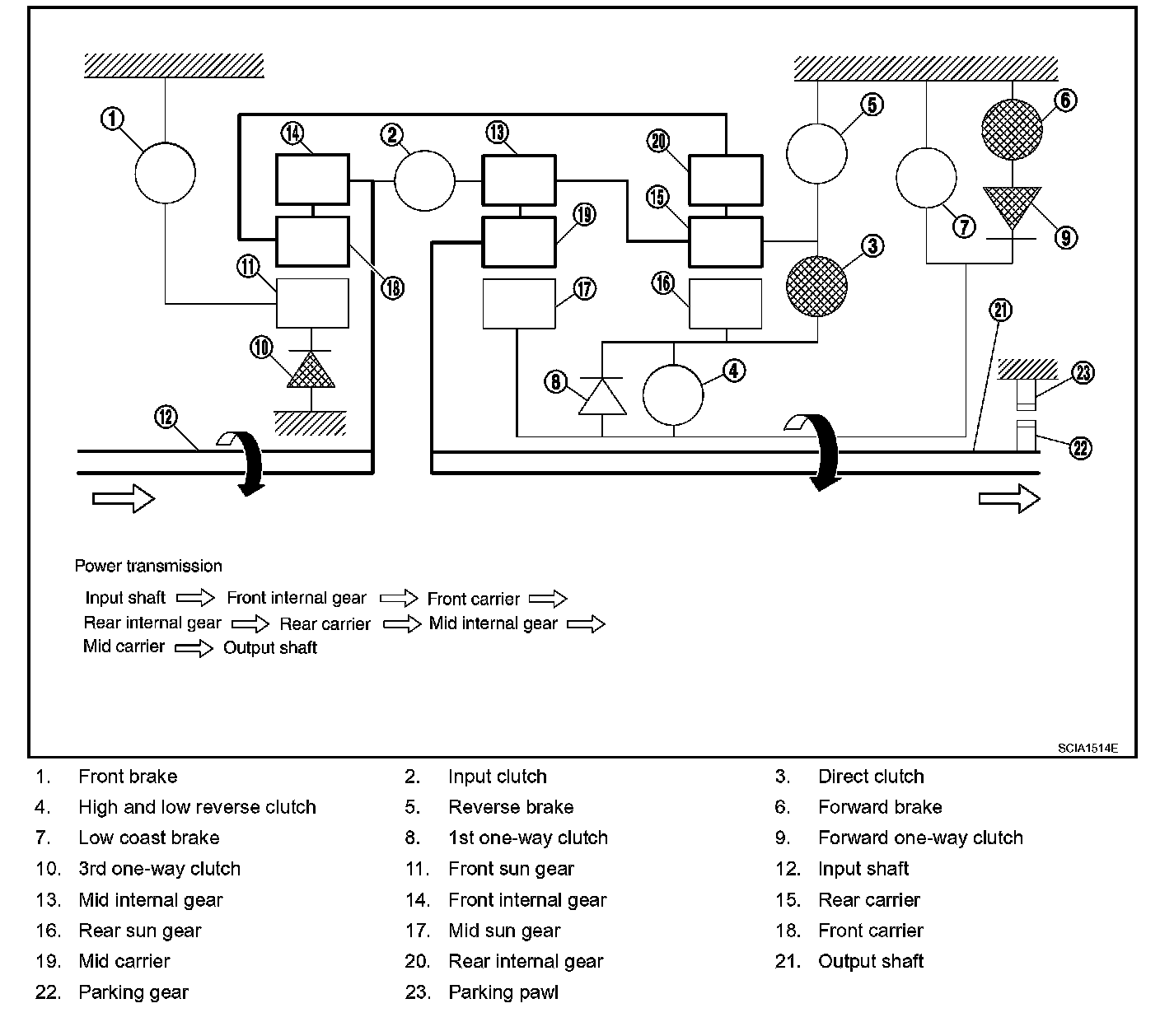

D4 and M4 Positions





^ The direct clutch is coupled, and the rear carrier and rear sun gear are connected.
^ The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.
^ The input clutch is coupled, and the front internal gear and mid internal gear are connected.
^ The drive power is conveyed to the front internal gear, mid internal gear, and rear carrier and the three planetary gears rotate forward as one unit.

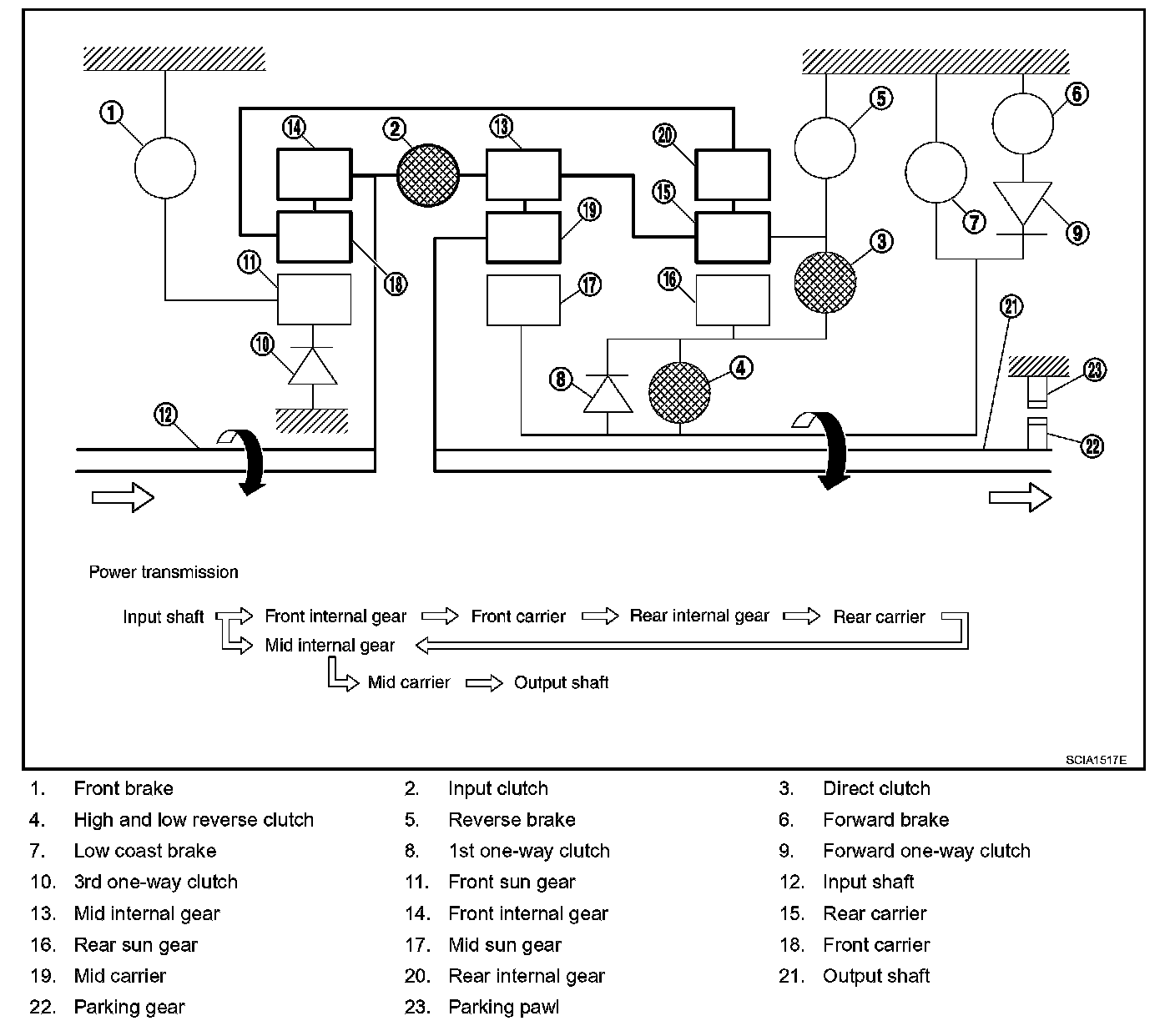

D5 and M5 Positions





^ The front brake fastens the front sun gear.
^ The input clutch is coupled, and the front internal gear and mid internal gear are connected.
^ The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.

R Position





^ The front brake fastens the front sun gear.
^ The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.
^ The reverse brake fastens the rear carrier.
