Fluid Pan, A/T

Transmission Pan

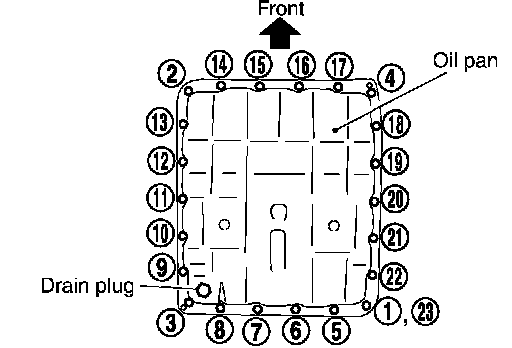

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.

CAUTION: Do not reuse oil pan mounting bolts.
