Brake Pedal Assy

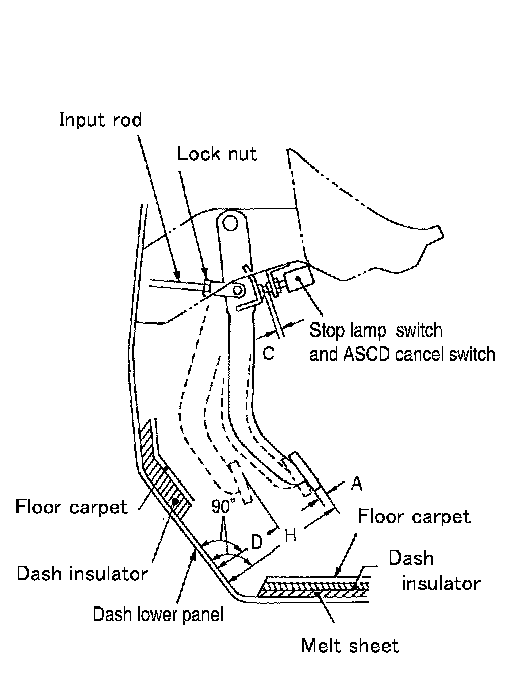

Check brake pedal free height from dash lower panel.
Adjust the height referring to the following specifications.
Brake pedal free height "H" (from dash panel top surface)
M/T models 154 - 164 mm (6.06 - 6.46 inch)
A/T models 162 - 172 mm (6.38 - 6.77 inch)
Brake pedal depressed height "D" (under a force of 490 N (50 kg, 110 lb) with the engine running)
M/T models 90 mm (3.54 inch) or more
A/T models 95 mm (3.74 inch) or more
Clearance "C" between stopper rubber and the threaded end of stop lamp switch and ASCD cancel switch 0.74 - 1.96 mm (0.0291 - 0.0772 inch)
Pedal play "A" 3 - 11 mm (0.12 - 0.43 inch)
