Removal and Installation

Battery

Removal and Installation

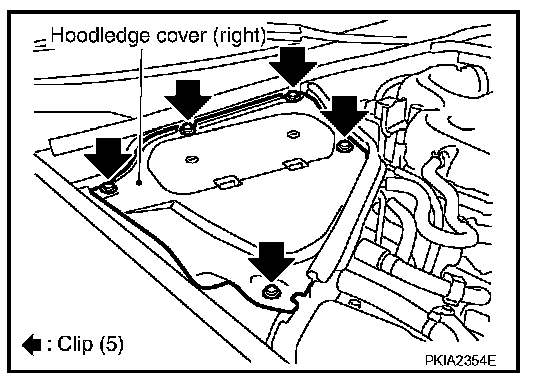

Remove the hoodledge cover (right) and observe the following to ensure proper servicing.

CAUTION:
- When disconnecting, disconnect the battery cable from the negative terminal first. But when connecting, connect the battery cable to the positive terminal first.
- Tighten parts to the specified torque as shown.

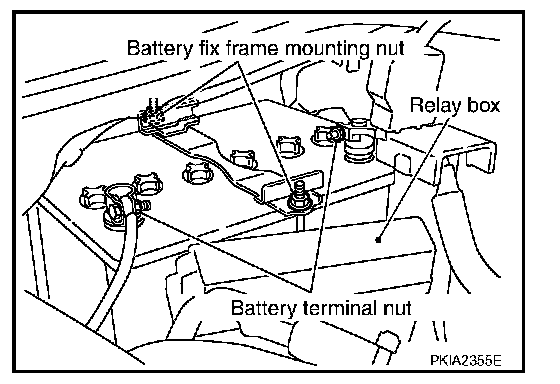

Battery fix frame mounting nut: : 4.4 N-m (0.45 kg-m, 39 in-lb)
Battery terminal nut: : 5.4 N-m (0.55 kg-m, 48 in-lb)
