Removal and Installation

Removal and Installation

R200 2-Pinion:

R200V LSD:

REMOVAL
1. Remove exhaust center tube with power tool.
2. Remove rear stabilizer bar with power tool.
3. Remove rear propeller shaft from the final drive.





4. Remove rear drive shaft from final drive. Then suspend it by wire etc.
5. Remove wheel sensor.








6. Set a suitable jack to rear final drive assembly.

CAUTION: Do not place a suitable jack on the rear cover (aluminum case).

7. Remove the mounting bolts and nuts connecting to the suspension member, and remove rear final drive assembly.

CAUTION: Secure rear final drive assembly to a suitable jack while removing it.

INSTALLATION
Note the following, and installation is in the reverse order of removal.

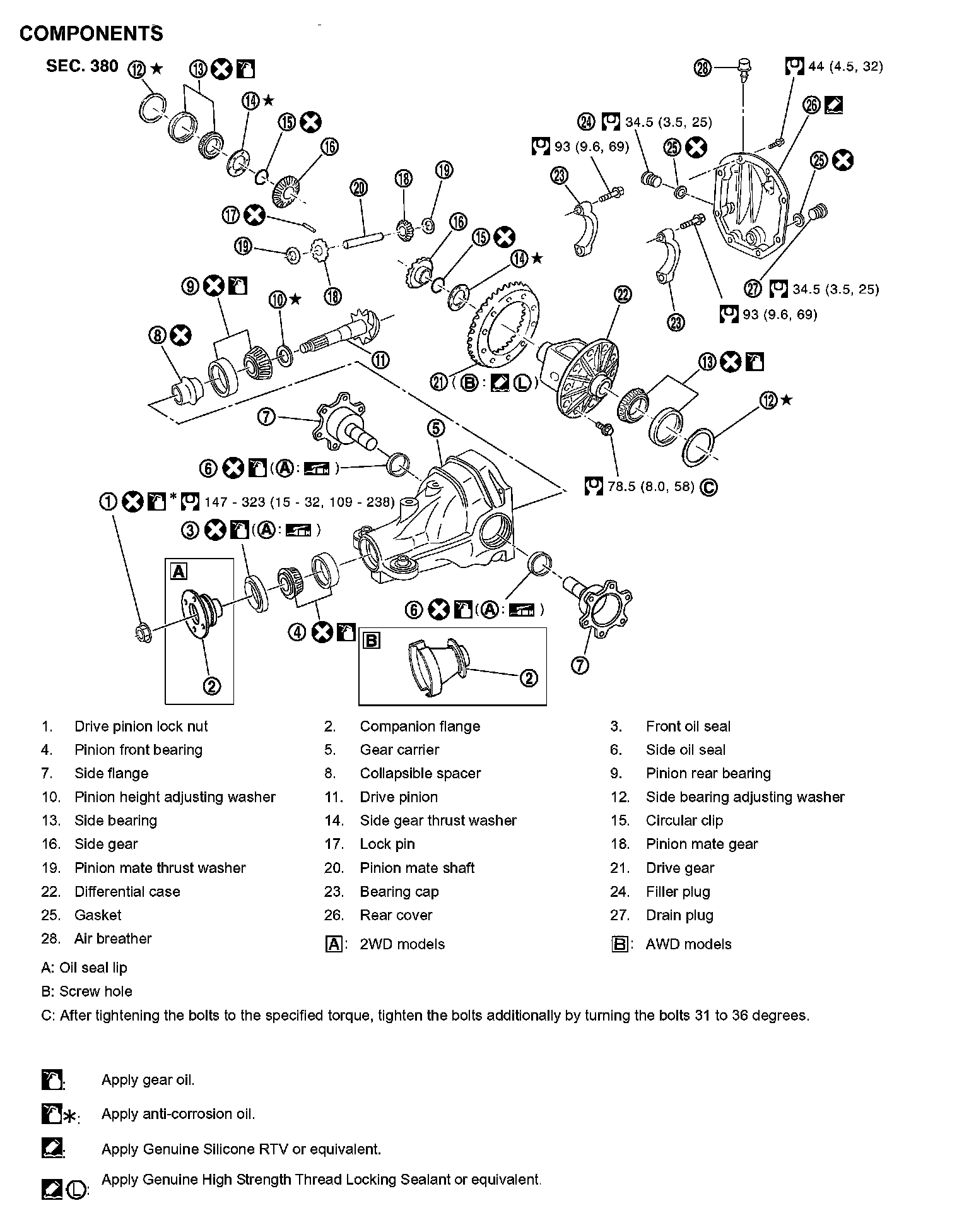

^ Refer to RFD-20, "COMPONENTS" (R200 2-pinion) or RFD-40, "COMPONENTS" (R200V LSD) about each tightening torque.
^ When oil leaks while removing final drive assembly, check oil level after the installation.
